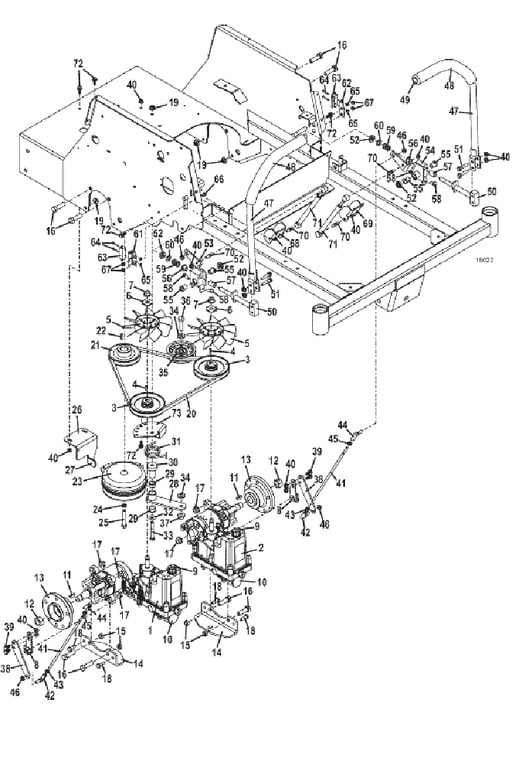

126 Drive & Steering Assembly - M2/52 61 - 2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 391491 - Right Integrated Transmission | Add To Cart | |
| 2 | 391490 - Left Integrated Transmission | Add To Cart | |
| 3 | 130630 - Pulley | Add To Cart | |
| 4 | 281668 - Square Key | Add To Cart | |
| 5 | 130431 - H2 & T Hydro Fan | Add To Cart | |
| 6 | 130632 - Fan Spacer | Add To Cart | |
| 7 | 253070 - Flanged Nut | Add To Cart | |
| 8 | 130618 - Control Lever | Add To Cart | |
| - | 130619 - Return Spring | Add To Cart | |
| 9 | 130610 - Breather/Dipstick | Add To Cart | |
| 9 | 130611 - Seal Ring | Add To Cart | |
| 10 | 130605 - Filter | Add To Cart | |
| 10 | 126552 - O Ring | Add To Cart | |
| - | 130606 - Filter Plug with O Ring | Add To Cart | |
| 11 | 281845 - Woodruff Key | Add To Cart | |
| 12 | 253992 - Lock Nut | Add To Cart | |
| 13 | 824458 - Tapered Hub | Call For Details | |
| - | 824459 - Tapered Hub 100V/61 | Add To Cart | |
| 14 | 776156 - Tension Strap Bracket | Call For Details | |
| 15 | 902293 - Integrated Spacer | Add To Cart | |
| 16 | 243575 - Hex Bolt | Add To Cart | |
| 17 | 253067 - Flanged Spiral Lock Nut | Add To Cart | |
| 18 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 19 | 253043 - Whiz Nut | Add To Cart | |
| 20 | 381942 - Belt | Add To Cart | |
| 21 | 415545 - Sheave | Add To Cart | |
| 22 | 281582 - Square Key | Add To Cart | |
| 23 | 388750 - Electric Clutch | Add To Cart | |
| 24 | 257422 - Lock Washer | Add To Cart | |
| 25 | 243470 - Hex Bolt | Add To Cart | |
| 26 | 725123 - 100 Anti Rotation Bracket | Add To Cart | |
| 27 | 422088 - Clutch Bracket Cover | Add To Cart | |
| 28 | 824478 - 100 Pumps Idler Arm Assembly | Add To Cart | |
| 29 | 121756 - Oilite Bearing | Add To Cart | |
| 30 | 121650 - Pedestal Bearing | Add To Cart | |
| 31 | 284428 - Torsion Spring | Add To Cart | |
| 32 | 257040 - Washer | Add To Cart | |
| 33 | 243360 - Hex Bolt | Add To Cart | |
| 34 | 257062 - Washer | Add To Cart | |
| 35 | 393195 - Idler | Add To Cart | |
| 36 | 243575 - Hex Bolt | Add To Cart | |
| 37 | 253066 - Whiz Nut | Add To Cart | |
| 38 | 776158 - Neutral Return Arm | Call For Details | |
| 39 | 253191 - Flanged Hex Whiz Bolt | Add To Cart | |
| 40 | 253035 - Whiz Nut | Add To Cart | |
| 41 | 780175 - Steering Linkage Rod | Add To Cart | |
| 42 | 265615 - Righthand Thread Ball Joint | Add To Cart | |
| 43 | 254441 - Nut | Add To Cart | |
| 44 | 265616 - Lefthand Thread Ball Joint | Add To Cart | |
| 45 | 254444 - Nut | Add To Cart | |
| 46 | 253038 - Whiz Nut | Add To Cart | |
| 47 | 605741 - 200V Standard Steering Lever Assembly | Add To Cart | |
| 48 | 422179 - Handle Grip | Call For Details | |
| 49 | 422095 - Vinyl Cap | Call For Details | |
| 50 | 643926 - Steering Lever Ajustment Mount | Add To Cart | |
| 51 | 253195 - Flanged Hex Whiz Bolt | Add To Cart | |
| 52 | 253470 - Nylon Insert Nut | Add To Cart | |
| 53 | 604856 - Right Steering Pivot Assembly | Call For Details | |
| 54 | 604857 - Left Steering Pivot Assembly | Call For Details | |
| 55 | 422559 - Sleeve Bearing with Flange | Add To Cart | |
| 56 | 422556 - Sleeve Bearing with Flange | Add To Cart | |
| 57 | 422557 - Sleeve Bearing | Add To Cart | |
| 58 | 243197 - Hex Bolt | Add To Cart | |
| 59 | 283324 - Compression Spring | Add To Cart | |
| 60 | 257063 - Washer | Add To Cart | |
| 61 | 720160 - Right Steering Switch Mount | Add To Cart | |
| 62 | 720161 - Left Steering Switch Mount | Add To Cart | |
| 63 | 183860 - Lever Switch | Add To Cart | |
| 64 | 250318 - Machine Screw | Call For Details | |
| 65 | 254400 - Nut | Call For Details | |
| 66 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 67 | 253025 - Whiz Nut | Add To Cart | |
| 68 | 729730 - Right Damper Mount Bracket | Call For Details | |
| 69 | 729731 - Eccentric Roller Assembly | Call For Details | |
| 70 | 265680 - Ball Stud | Add To Cart | |
| 71 | 285032 - Reverse Damper with Ball Socket | Add To Cart | |
| 72 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 73 | 729733 - 126 Belt Tensioner Bracket | Add To Cart |
