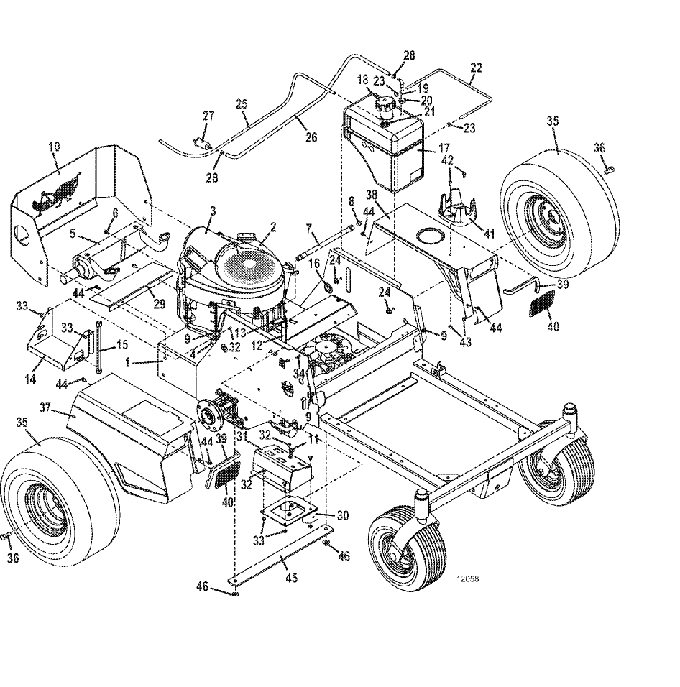

126 Tractor Assembly - 2013
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645376 - 100V/52 Frame | Call for Details | |
| 2 | 100153 - 26hp Briggs & Stratton Pro Vertical Engine | Call for Details | |
| 3 | 100919 - Cyclonic Air Filter | Call for Details | |
| 4 | 100803 - Briggs Oil Filter | $19.95 | Add To Cart |
| 5 | 101197 - B&S Vertical 20/24/26 HP Vertical Muffler | $193.35 | Add To Cart |
| - | 101043 - B&S Muffler Exhaust Gasket | Call for Details | |
| 6 | 243016 - Hex Bolt | $0.25 | Add To Cart |
| 7 | 424319 - Drain Hose Assembly | $38.74 | Add To Cart |
| 8 | 365515 - 3/8 inch Metal Pipe Plug | $2.23 | Add To Cart |
| 9 | 254431 - Speed Nut | $1.64 | Add To Cart |
| 10 | 729734 - Rear Guard Shield | $174.85 | Add To Cart |
| 11 | 142250 - Mechanical Choke | $31.39 | Add To Cart |
| 12 | 603854 - Throttle Assembly | Call for Details | |
| - | 323643 - Control Cable Assembly | $22.45 | Add To Cart |
| - | 722009 - Throttle Lever Stop | $6.02 | Add To Cart |
| - | 722736 - Heavy Duty - Throttle Lever Stop | $6.02 | Add To Cart |
| 13 | 422150 - Handle Grip | $3.05 | Add To Cart |
| 14 | 723062 - 126 Battery Mount | Call for Details | |
| 15 | 420610 - Hold Down Strap | Call for Details | |
| 16 | 424250 - Grommet | $2.97 | Add To Cart |
| 17 | 605791 - M2 3-Gallon Tank Assembly | Call for Details | |
| 18 | 100212 - Sealed Fuel Cap with Tether | $30.74 | Add To Cart |
| 19 | 363925 - Fuel Tube | $5.69 | Add To Cart |
| 20 | 101875 - Fuel Tube Bushing | $1.73 | Add To Cart |
| 21 | 100216 - 2011 Fuel Tank Valve | $30.88 | Add To Cart |
| 22 | 730451 - Gas Tank Mount Rod | Call for Details | |
| 23 | 254450 - Nut | $0.38 | Add To Cart |
| 24 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 25 | 821760 - Fuel Vapor Hose | $21.40 | Add To Cart |
| 26 | 821768 - Fuel Hose | Call for Details | |
| 27 | 366560 - Briggs In-Line Fuel Filter | $13.55 | Add To Cart |
| 28 | 280260 - Hose Spring Clamp | $0.35 | Add To Cart |
| 29 | 751043 - Heat Shield | $14.70 | Add To Cart |
| 30 | 644410 - 100 Console Bracket | Call for Details | |
| 31 | 645102 - M2/200V Console | Call for Details | |
| 32 | 253176 - Truss Whiz Bolt | $0.67 | Add To Cart |
| 33 | 253025 - Whiz Nut | $0.36 | Add To Cart |
| 34 | 253177 - Truss Whiz Bolt | $2.85 | Add To Cart |
| 35 | 483924 - Wheel & Turf Tire 20 x 10 x 10 | $254.20 | Add To Cart |
| - | 482474 - Turf Tire 20 x 10 x 10 | $147.55 | Add To Cart |
| - | 483420 - Wheel 10.00 | $174.11 | Add To Cart |
| 36 | 248565 - Lug Nut | $2.54 | Add To Cart |
| 37 | 645238 - Right 126 Fender | Call for Details | |
| 38 | 645239 - Left 126 Fender | Call for Details | |
| 39 | 822631 - Seat Edge Trim | $6.44 | Add To Cart |
| 40 | 422079 - Work Lamp Hole Plug | $4.46 | Add To Cart |
| 41 | 150225 - Cup Holder | $19.96 | Add To Cart |
| 42 | 259030 - Cap Screw | $0.48 | Add To Cart |
| 43 | 254436 - Nut | $0.36 | Add To Cart |
| 44 | 253173 - Hex Whiz Bolt | $0.77 | Add To Cart |
| 45 | 782898 - Tension Strap | Call for Details | |
| 46 | 253067 - Flanged Spiral Lock Nut | $2.23 | Add To Cart |
| - | 243565 - Hex Bolt | $2.10 | Add To Cart |
| 47 | 605331 - 126/52D Decal Set | Call for Details |
