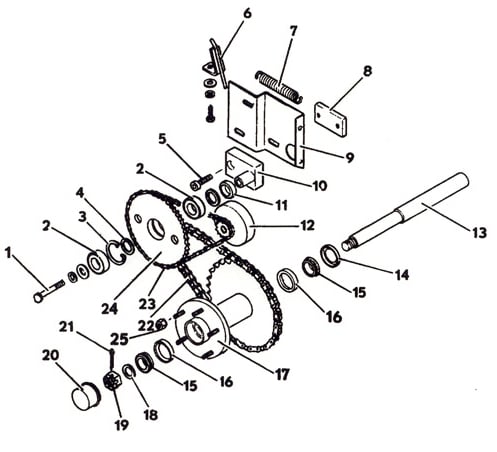

1622 Final Drive - 1986
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 243615 - Bolt | Add To Cart | |
| 2 | 120079 - Bearing | Add To Cart | |
| 3 | 263208 - Internal Retainer | Add To Cart | |
| 4 | 257104 - Washer | Add To Cart | |
| 5 | 259636 - Screw | Add To Cart | |
| 6 | 824512 - Bracket | Call For Details | |
| 7 | 283820 - Extension Spring w/Swivel | Add To Cart | |
| 8 | 824615 - Plate | Add To Cart | |
| 9 | 643588 - Mount - Right | Call For Details | |
| - | 643587 - Mount - Left | Add To Cart | |
| 10 | 603581 - Sprocket Mount | Call For Details | |
| 11 | 282615 - Spacer | Add To Cart | |
| 12 | 417515 - Sprocket & Drum Assembly | Add To Cart | |
| 13 | 883264 - Axle | Call For Details | |
| 14 | 125525 - Seal | Add To Cart | |
| 15 | 122522 - Bearing | Add To Cart | |
| 16 | 123522 - Bearing Cup | Add To Cart | |
| 17 | 603425 - Hub Assembly | Add To Cart | |
| - | 248575 - Lug Bolt | Add To Cart | |
| 18 | 257091 - Washer | Add To Cart | |
| 19 | 254502 - Nut | Add To Cart | |
| 20 | 481432 - Dust Cap | Add To Cart | |
| 21 | 260670 - Cotter Pin | Add To Cart | |
| 22 | 385471 - Chain | Add To Cart | |
| 23 | 385262 - Chain | Add To Cart | |
| 24 | 603236 - Sprocket Cluster Assembly | Add To Cart | |
| 25 | 254472 - Nut | Add To Cart |
