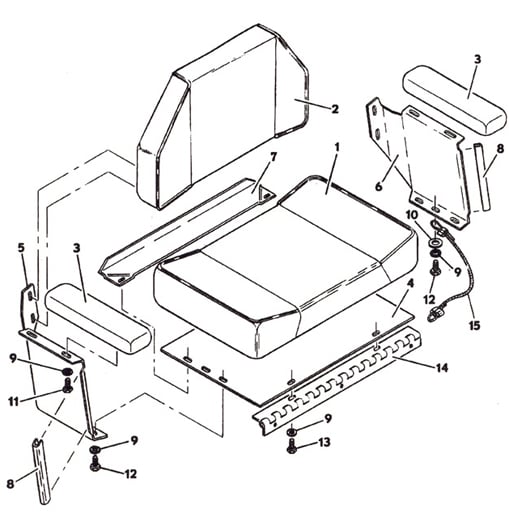

1622 Seat Assembly - 1986
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| - | 603763 - Seat Assembly | Call For Details | |
| 1 | 321508 - Seat Cushion | Add To Cart | |
| 2 | 321509 - Back Cushion | Add To Cart | |
| 3 | 321501 - Armrest | Add To Cart | |
| 4 | 771088 - Bottom Seat Panel | Call For Details | |
| 5 | 724310 - Side Member - Right | Add To Cart | |
| 6 | 724311 - Side Member - Left | Add To Cart | |
| 7 | 724205 - Seat Bottom Reinforcement | Call For Details | |
| 8 | 822630 - Trim | Add To Cart | |
| 9 | 257410 - Washer | Add To Cart | |
| 10 | 257030 - Washer | Add To Cart | |
| 11 | 243195 - Bolt | Add To Cart | |
| 12 | 243205 - Screw | Add To Cart | |
| 13 | 243210 - Bolt | Add To Cart | |
| 14 | 820165 - Seat Hinge | Add To Cart | |
| 15 | 603210 - Seat Cable | Add To Cart |
