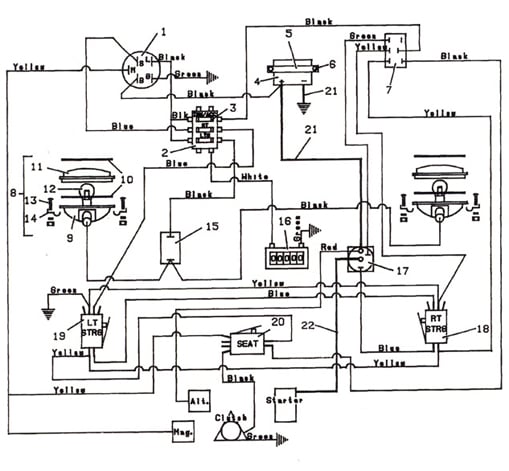

1822K Wiring - 1988
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| - | 603884 - Wiring Assembly | Call For Details | |
| 1 | 183806 - Key Switch | Add To Cart | |
| 2 | 603140 - Fuse Block | Call For Details | |
| 3 | 181540 - Fuse | Call For Details | |
| 4 | - - Battery - 12 Volt | Call For Details | |
| - | 643136 - Battery Box | Call For Details | |
| 5 | 822410 - Battery Hold Down | Add To Cart | |
| 6 | 240110 - Hook Bolt | Add To Cart | |
| 7 | 604796 - PTO Switch | Add To Cart | |
| 8 | 182665 - Worklamp Assembly | Call For Details | |
| 9 | 182350 - Lamp Housing | Call For Details | |
| 10 | 420550 - Light Gasket | Add To Cart | |
| 11 | 182400 - Lamp Lens | Call For Details | |
| 12 | 182000 - Light Bulb | Add To Cart | |
| 13 | 250258 - Screw | Add To Cart | |
| 14 | 180635 - Clip | Call For Details | |
| 15 | 183950 - Light Toggle Switch | Add To Cart | |
| 16 | 141551 - Hour Meter | Add To Cart | |
| - | 722060 - Hour Meter Bracket | Call For Details | |
| 17 | 184251 - Solenoid Switch | Add To Cart | |
| 18 | 183865 - Safety Switch | Add To Cart | |
| - | 722020 - Switch Mount - Right | Call For Details | |
| 19 | 183865 - Safety Switch | Add To Cart | |
| - | 722021 - Switch Mount - Left | Call For Details | |
| 20 | 183865 - Safety Switch | Add To Cart | |
| - | 603973 - Seat Switch | Add To Cart | |
| - | 724100 - Seat Switch Mount | Call For Details | |
| - | 283322 - Compression Spring | Add To Cart | |
| - | 261328 - Clevis Pin | Call For Details | |
| - | 250318 - Screw | Call For Details | |
| 21 | 180319 - Battery Cable - Red | Add To Cart | |
| - | 425219 - Battery Boot | Add To Cart | |
| 22 | 180322 - Battery Cable - Red | Add To Cart |
