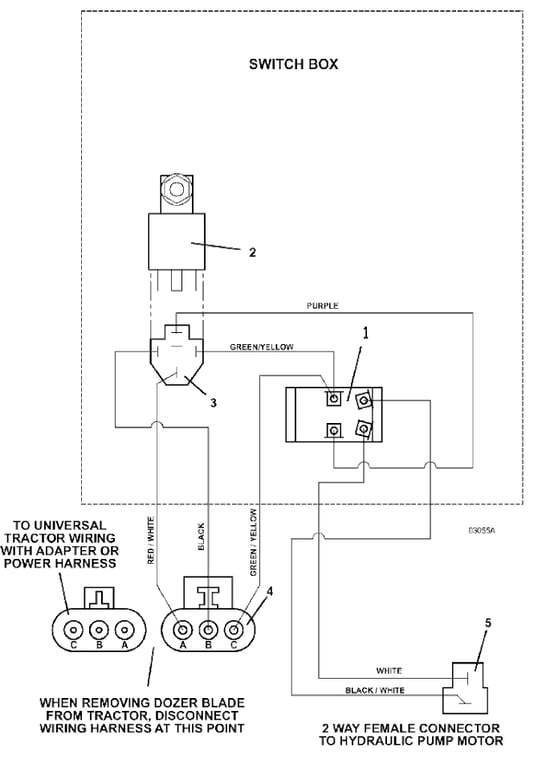

2006 & Older Wiring Diagram for Hydraulic Bi-Directional Manual Lift Dozer Blade
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 184084 - Toggle | Add To Cart | |
| - | 425200 - Toggle Switch Boot | Add To Cart | |
| - | 770005 - Keyed Washer | Add To Cart | |
| 2 | 184272 - 12V DC Relay | Add To Cart | |
| - | 184570 - Type 1 6mm Pushon | Add To Cart | |
| - | 184581 - Faston Terminal | Add To Cart | |
| - | 184926 - 5-Way Female Connector | Add To Cart | |
| 3 | 184926 - 5-Way Female Connector | Add To Cart | |
| 4 | 184974 - 3-Way Waterproof Female Terminal Connector | Call For Details | |
| 5 | 184917 - 2-Way Female Connector | Add To Cart | |
| 6 | 604911 - Dozer Bi-Directional Wire Assembly | Call For Details |
