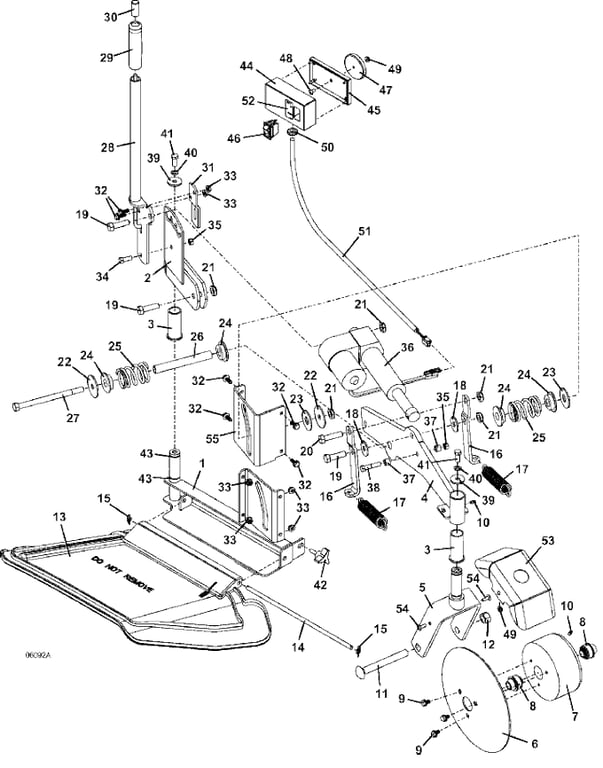

2006 thru 2015 Electric Lift Edger Assembly Thumb Screw Type
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644598 - Discharge with Edger Mount | Add To Cart | |
| 2 | 824604 - Edger Height Adjustment Pivot | Add To Cart | |
| 3 | 833260 - Flanged Sintered Bushing | Add To Cart | |
| 4 | 824603 - Edger Disk Pivot Arm | Add To Cart | |
| 5 | 604355 - Fork Assembly | Add To Cart | |
| - | 425514 - O-Ring | Add To Cart | |
| 6 | 824149 - Edger Disk | Add To Cart | |
| 7 | 783900 - Edger Hub | Add To Cart | |
| 8 | 120048 - Wheel Ball Bearing | Add To Cart | |
| 9 | 253189 - Whiz Bolt | Add To Cart | |
| 10 | 280776 - Grease Zerk Fitting | Add To Cart | |
| 11 | 247715 - Carriage Bolt | Add To Cart | |
| 12 | 253970 - Lock Nut | Add To Cart | |
| 13 | 422042 - Flex Discharge Shield | Add To Cart | |
| 14 | 780650 - Flex Dischage Shield Pin | Add To Cart | |
| 15 | 260608 - Cotter Ring | Add To Cart | |
| 16 | 732969 - Edger Spring Bracket | Call For Details | |
| 17 | 283848 - Extension Spring | Add To Cart | |
| 18 | 821516 - Nylon Washer | Add To Cart | |
| 19 | 243575 - Hex Bolt | Add To Cart | |
| 20 | 243580 - Hex Bolt | Add To Cart | |
| 21 | 253470 - Nylon Insert Nut | Add To Cart | |
| 22 | 257061 - Washer | Add To Cart | |
| 23 | 821520 - Nylon Washer | Call For Details | |
| 24 | 885005 - Spring Guide | Call For Details | |
| 25 | 283517 - Compression Spring | Add To Cart | |
| 26 | 942177 - Slider Tube | Call For Details | |
| 27 | 243650 - Hex Bolt | Call For Details | |
| 28 | 643680 - Disk Lift Lever | Call For Details | |
| 29 | 833540 - Thumb Release Handle Grip | Add To Cart | |
| 30 | 821675 - Thumb Button Push Rod | Add To Cart | |
| 31 | 732593 - Lever Guide | Add To Cart | |
| 32 | 253192 - Hex Flanged Whiz Bolt | Add To Cart | |
| 33 | 253035 - Whiz Nut | Add To Cart | |
| 34 | 243330 - Hex Bolt | Add To Cart | |
| 35 | 253890 - Lock Nut | Add To Cart | |
| 36 | 180024 - Actuator | Add To Cart | |
| 37 | 902280 - Spacer | Add To Cart | |
| 38 | 243345 - Hex Bolt | Add To Cart | |
| 39 | 774014 - Washer | Add To Cart | |
| 40 | 257412 - Lock Washer | Add To Cart | |
| 41 | 243331 - Hex Bolt | Add To Cart | |
| 42 | 252821 - Heavy Duty 3 Prong Deck Stud | Add To Cart | |
| 43 | 425514 - O-Ring | Add To Cart | |
| 44 | 833515 - Rocker Switch Box | Call For Details | |
| 45 | 833524 - Switch Box Cover | Call For Details | |
| 46 | 184177 - 2 Position Rocker | Add To Cart | |
| 47 | 102505 - Round Base Magnet | Call For Details | |
| 48 | 253170 - Truss Whiz Bolt | Call For Details | |
| 49 | 253025 - Whiz Nut | Add To Cart | |
| 50 | 424216 - Grommet | Add To Cart | |
| 51 | 422275 - Flex Guard Loom | Add To Cart | |
| - | 184272 - 12V DC Relay | Add To Cart | |
| - | 423148 - Reel Tie | Call For Details | |
| 52 | 162199 - Lift Rocker Switch Decal | Call For Details | |
| 53 | 723231 - Disk Fender | Call For Details | |
| 54 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 55 | 755147 - Disk Offset Plate | Call For Details | |
| 56 | 533132 - Edger with Electric Lift | Call For Details |
