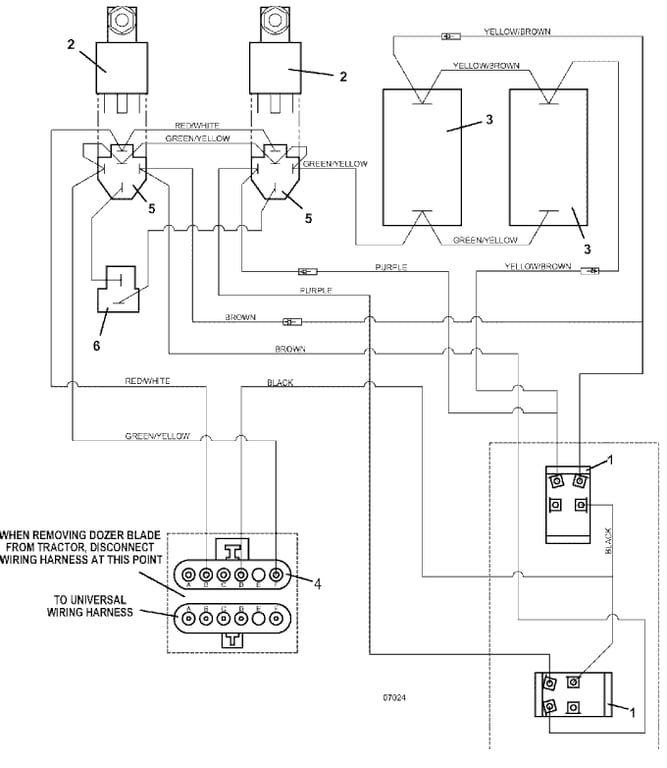

2008 to 2011 Wiring Diagram for Hydraulic Dozer
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 184177 - 2 Post 2 Position Rocker Switch | Add To Cart | |
| 2 | 604712 - Heavy Duty Relay Assembly | Call For Details | |
| 3 | 144948 - Hydraulic Dozer Solenoid Valve | Call For Details | |
| 4 | 184969 - 6-Way Female Waterproof Connector | Add To Cart | |
| 5 | 184926 - 5-Way Female Connector | Add To Cart | |
| 6 | 184917 - 2-Way Female Connector | Add To Cart | |
| 7 | 605853 - Hydraulic Dozer Wiring Assembly | Call For Details |
