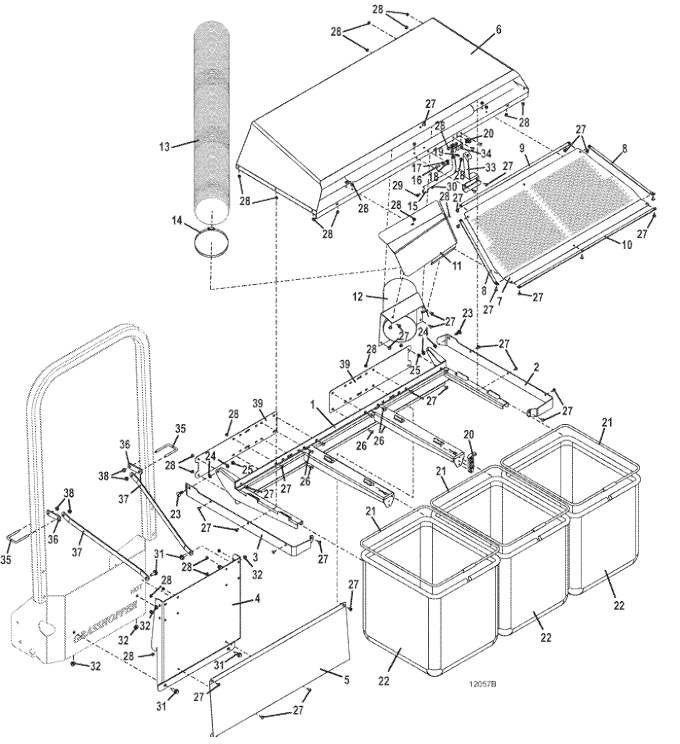

200V Series MidMount Tractors - Model 12HT Catcher with Mount
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645374 - 12HT Bagger Frame | Call For Details | |
| 2 | 732623 - Right Top Guard Strap | Call For Details | |
| 3 | 732624 - Left Top Guard Strap | Call For Details | |
| 4 | 729149 - 200V Catcher Mount Plate | Add To Cart | |
| 5 | 722805 - M2/200V Catcher Heat Shield | Call For Details | |
| 6 | 645835 - 12HT Collector Top | Call For Details | |
| 7 | 420008 - 8F/12F HT Fabric Screen | Add To Cart | |
| 7 | 721389 - 8F/12F HT Metal Screen | Call For Details | |
| 8 | 782305 - HT Fabric Screen Side Strap | Call For Details | |
| 9 | 782311 - HT Fabric Screen Front Strap | Call For Details | |
| 10 | 782361 - HT Fabric Screen Rear Strap | Call For Details | |
| 11 | 721334 - 12HT Inlet Deflector | Call For Details | |
| 12 | 645183 - Inlet Tube | Add To Cart | |
| 13 | 424408 - 57' Flex Hose | Add To Cart | |
| 14 | 280345 - 6' Hose Clamp | Add To Cart | |
| 15 | 754101 - Hard Top Prop | Add To Cart | |
| 16 | 261279 - Clevis Pin | Add To Cart | |
| 17 | 257020 - Washer | Add To Cart | |
| 18 | 284407 - Torsion Spring | Add To Cart | |
| 19 | 260606 - Cotter Ring | Add To Cart | |
| 20 | 281304 - Flexible Draw Latch | Add To Cart | |
| 21 | 645723 - 8/12HT Bag Rod | Add To Cart | |
| 22 | 420019 - Hard Bottom Black Vac Bag | Add To Cart | |
| 23 | 247253 - Carriage Bolt | Add To Cart | |
| 24 | 257047 - Nylon Washer | Call For Details | |
| 25 | 253460 - Nylon Insert Nut | Add To Cart | |
| 26 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 27 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 28 | 253025 - Whiz Nut | Add To Cart | |
| 29 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 30 | 253440 - Nylon Insert Nut | Add To Cart | |
| 31 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 32 | 253043 - Whiz Nut | Add To Cart | |
| 33 | 766042 - Bagger Top Support Gusset | Call For Details | |
| 34 | 754327 - 8/12M Top Prop Bracket | Call For Details | |
| 35 | 240278 - Square U-Bolt | Call For Details | |
| 36 | 782884 - U-Clamp Strap | Call For Details | |
| 37 | 755033 - Grasscatcher Support Strap | Call For Details | |
| 38 | 253035 - Whiz Nut | Add To Cart | |
| 39 | 773090 - Channel Support Plate | Call For Details | |
| 40 | 504192 - 12HT 200V Collector with Mount | Add To Cart | |
| 41 | 254450 - Nut | Add To Cart | |
| 42 | 422098 - Vinyl Cap | Add To Cart | |
| 43 | 393200 - Idler | Add To Cart | |
| 44 | 243565 - Hex Bolt | Add To Cart | |
| 45 | 422520 - Nylon Bearing | Add To Cart | |
| 46 | 283820 - Extension Spring with Swivel | Add To Cart | |
| 47 | 730391 - Idler Adjustment 'J' Bolt | Add To Cart | |
| 48 | 382750 - Upper Vacuum Belt | Add To Cart | |
| 49 | 644795 - 33Series Vacuum Belt Shield | Add To Cart | |
| 50 | 604770 - 25MM Spindle Shaft Assembly | Add To Cart | |
| 51 | 282630 - Spacer | Add To Cart | |
| 52 | 257104 - Washer | Add To Cart | |
| 53 | 414685 - Sheave | Add To Cart | |
| 54 | 643887 - M2 Vacuum Belt Mount Shield | Call For Details | |
| 55 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 56 | 382733 - Lower Vacuum Belt | Add To Cart | |
| 57 | 722831 - M248 Vacuum Drive Shield | Call For Details | |
| 58 | 254443 - Nut | Add To Cart | |
| 59 | 257062 - Washer | Add To Cart | |
| 60 | 320236 - 18' Medium Lift Blade | Call For Details | |
| 61 | 503138 - M252 Vacuum Assembly | Call For Details | |
| 62 | 503181 - M252 Vac Assembly with Blades | Call For Details |
