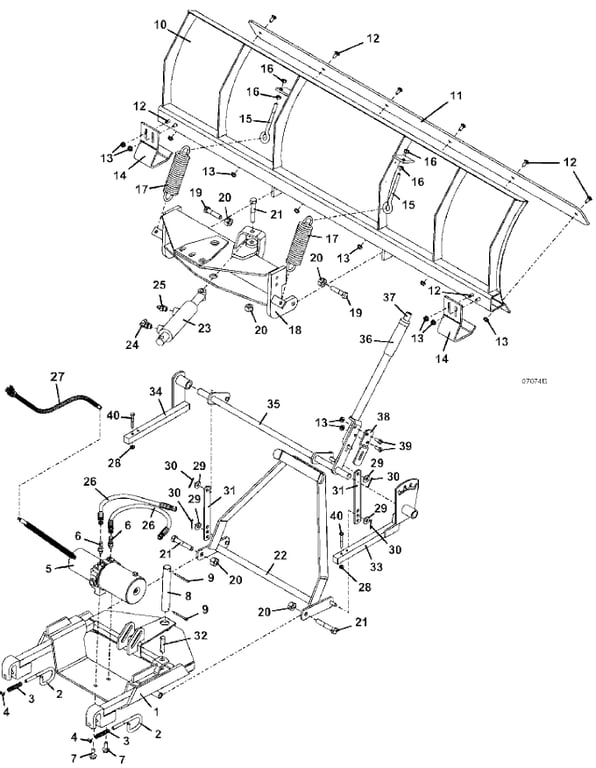

2012 to Present Hydraulic Lift Assembly for Hydraulic Bi-Directional Manual Lift Dozer Blade
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644158 - Hydraulic Dozer Mount | Call For Details | |
| 2 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 3 | 283285 - Compression Spring | Add To Cart | |
| 4 | 263490 - External Retainer | Add To Cart | |
| 5 | 604428 - Horizontal Hydraulic Pump Assembly | Add To Cart | |
| 6 | 360049 - Adapter O-Ring | Call For Details | |
| 7 | 253200 - Whiz Bolt | Add To Cart | |
| 8 | 882128 - Pivot Pin | Add To Cart | |
| 9 | 260694 - Cotter Pin | Call For Details | |
| 10 | 643731 - 60 Moldboard | Call For Details | |
| 11 | 783298 - 60' Blade | Add To Cart | |
| 12 | 247130 - Carriage Bolt | Add To Cart | |
| 13 | 253035 - Whiz Nut | Add To Cart | |
| 14 | 733205 - Dozer Skid | Add To Cart | |
| 15 | 240068 - Eye Bolt | Add To Cart | |
| 16 | 254450 - Nut | Add To Cart | |
| 17 | 283988 - Extension Spring | Add To Cart | |
| 18 | 644549 - Hydraulic Dozer Pivot Mount | Call For Details | |
| 19 | 243570 - Hex Bolt | Add To Cart | |
| 20 | 253930 - Lock Nut | Add To Cart | |
| 21 | 243600 - Hex Bolt | Add To Cart | |
| 22 | 643524 - Foot Lift | Call For Details | |
| 23 | 290016 - Hydraulic Cylinder | Call For Details | |
| 24 | 360048 - Adapter O-Ring | Call For Details | |
| 25 | 360052 - Adapter O-Ring | Add To Cart | |
| 26 | 424307 - Hose Assembly | Add To Cart | |
| 27 | 605979 - Dozers Cyl Joystick Wiring Assembly | Call For Details | |
| 28 | 253025 - Whiz Nut | Add To Cart | |
| 29 | 257040 - Washer | Add To Cart | |
| 30 | 260652 - Cotter Pin | Add To Cart | |
| 31 | 782555 - Linkage Strap | Add To Cart | |
| 32 | 261430 - Clevis Pin | Call For Details | |
| 33 | 643567 - Lever Mount | Add To Cart | |
| 34 | 643570 - Left Lift Mount | Add To Cart | |
| 35 | 604514 - Dozer Lift Lever Assembly | Add To Cart | |
| 36 | 833540 - Thumb Release Handle Grip | Add To Cart | |
| 37 | 821675 - Thumb Button Push Rod | Add To Cart | |
| 38 | 732593 - Lever Guide | Add To Cart | |
| 39 | 243195 - Hex Bolt | Add To Cart | |
| 40 | 243040 - Hex Bolt | Add To Cart |
