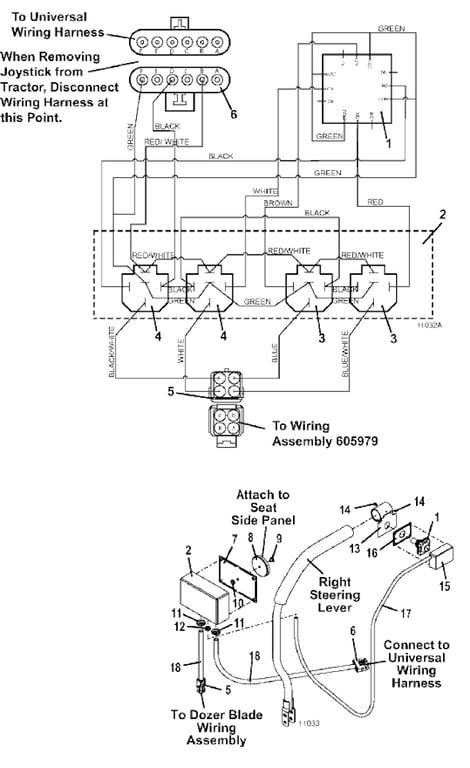

2012 to Present Joystick Control & Wiring Diagram for Hydraulic Dozer
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 183945 - Joystick | Call For Details | |
| 2 | 833530 - Dual Cable Relay Box | Call For Details | |
| 3 | 604712 - Heavy Duty Relay Assembly | Call For Details | |
| 4 | 184272 - 12V DC Relay | Add To Cart | |
| 5 | 184977 - 4-Way Male Connector | Add To Cart | |
| 6 | 184969 - 6-Way Female Waterproof Connector | Add To Cart | |
| 7 | 833523 - Magnetic Mount Relay Box Cover | Call For Details | |
| 8 | 102505 - Round Base Magnet | Call For Details | |
| 9 | 253170 - Truss Whiz Bolt | Call For Details | |
| 10 | 253025 - Whiz Nut | Add To Cart | |
| 11 | 424216 - Grommet | Add To Cart | |
| 12 | 424229 - Gommet | Add To Cart | |
| 13 | 645567 - Joystick Mount | Call For Details | |
| 14 | 259290 - Set Screw | Add To Cart | |
| 15 | 833514 - Joystick Switch Box | Call For Details | |
| 16 | 833526 - Joystick Box Cover | Call For Details | |
| 17 | 422272 - Flex Guard Loom | Call For Details | |
| 18 | 422275 - Flex Guard Loom | Add To Cart | |
| - | 423149 - Releaseable Wire Tie | Add To Cart | |
| 19 | 605985 - Joystick Relay Box Wiring Assembly | Add To Cart |
