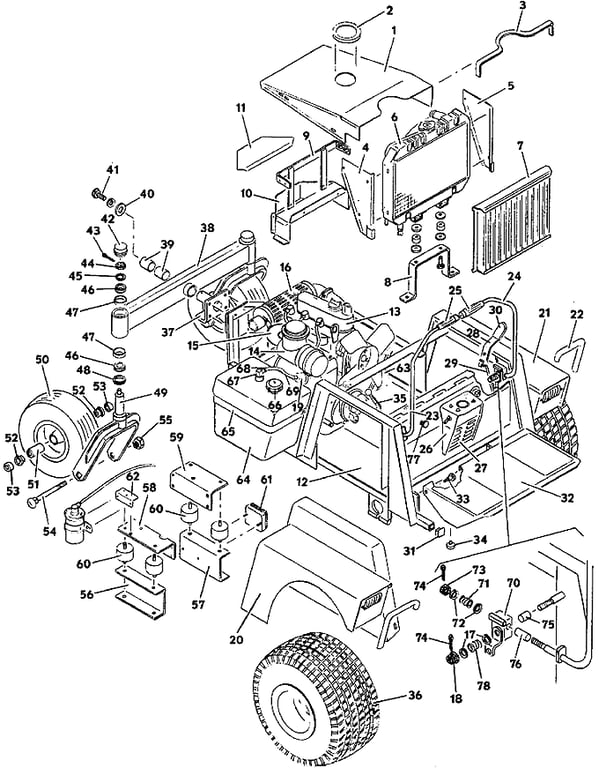

2132 Tractor Assembly - 1987
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643409 - Hood Panel | Call For Details | |
| 2 | 822633 - Hood Panel Hole Trim | Call For Details | |
| 3 | 822650 - Hood Panel / Console Trim | Call For Details | |
| 4 | 643794 - right Cowling Support | Call For Details | |
| 5 | 643793 - left Cowling Support | Call For Details | |
| 6 | 101605 - Kubota Radiator | Call For Details | |
| 7 | 643400 - Radiator Grille | Call For Details | |
| 8 | 783208 - Radiator Mount | Call For Details | |
| 9 | 643559 - Rear Hood Mount | Call For Details | |
| 10 | 643774 - Flywheel Shield | Call For Details | |
| 11 | 722167 - Flywheel Shield Cover | Add To Cart | |
| 12 | 643390 - 1822 Tractor Frame | Call For Details | |
| - | 424015 - Rubber Bumper | Add To Cart | |
| 13 | 100170 - Kubota Gas Engine | Call For Details | |
| 14 | 100940 - Kubota Air Filter | Call For Details | |
| 15 | 424519 - Air Intake Hose | Add To Cart | |
| 16 | 603590 - Muffler & Gasket Assembly | Add To Cart | |
| 17 | 257067 - Washer | Add To Cart | |
| 18 | 830355 - Slotted Flange Nut | Call For Details | |
| 19 | 101005 - Kubota Fuel Prefilter | Call For Details | |
| 20 | 643350 - right Contour Fender | Call For Details | |
| 21 | 643351 - left Contour Fender | Call For Details | |
| 22 | 822635 - 700/900 Fender Edge Trim | Add To Cart | |
| 23 | 643534 - right Steering Lever | Add To Cart | |
| 24 | 643535 - left Steering Lever | Call For Details | |
| 25 | 422160 - Handle Grip | Add To Cart | |
| 26 | 623240 - 2132 Console | Call For Details | |
| 27 | 643624 - Front Console Panel | Call For Details | |
| 28 | 643518 - Brake Band Lever | Call For Details | |
| 29 | 730292 - Brake Linkage Rod | Call For Details | |
| 30 | 422150 - Handle Grip | Add To Cart | |
| 31 | 422065 - 1 inch Inerior Diameter Square Plastic Plug | Add To Cart | |
| 32 | 643710 - Foot Rest | Call For Details | |
| 33 | 259741 - Shoulder Bolt | Add To Cart | |
| 34 | 424015 - Rubber Bumper | Add To Cart | |
| 35 | 142308 - Mechanical Throttle | Call For Details | |
| 36 | 483921 - Wheel & Turf Tire - 20 x 10 x 8 | Add To Cart | |
| - | 482472 - Turf Tire - 20 x 10 x 8 | Add To Cart | |
| - | 483410 - 5 Bolt Wheel - 8 x 6 | Add To Cart | |
| 37 | 604597 - Rear Axle Pivot Assembly | Add To Cart | |
| 38 | 824510 - Dual Wheel Beam | Add To Cart | |
| 39 | 833275 - Reamed Oilite Bearing | Add To Cart | |
| 40 | 257061 - Washer | Add To Cart | |
| 41 | 243560 - Hex Bolt | Add To Cart | |
| 42 | 481432 - Dust Cap | Add To Cart | |
| 43 | 260670 - Cotter Pin | Add To Cart | |
| 44 | 254502 - Nut | Add To Cart | |
| 45 | 257091 - Washer | Add To Cart | |
| 46 | 122522 - Taper Bearing | Add To Cart | |
| 47 | 123522 - Bearing Cup | Add To Cart | |
| 48 | 125855 - Seal | Add To Cart | |
| 49 | 604364 - rear Fork & Lock Nut Assembly | Add To Cart | |
| 50 | 483861 - Wheel & Tire with Bearing & Spacer - 13 x 5 x 6 | Add To Cart | |
| - | 482350 - Tire - 13 x 5 x 6 | Add To Cart | |
| - | 483301 - Wheel with Bearing & Spacer - 6 x 3.25 | Add To Cart | |
| 51 | 902475 - Rear Wheel Bearing Spacer | Add To Cart | |
| 52 | 120050 - Ball Bearing | Add To Cart | |
| 53 | 902425 - Axle Spacer | Add To Cart | |
| 54 | 247725 - Carriage Bolt | Add To Cart | |
| 55 | 253970 - Lock Nut | Add To Cart | |
| 56 | 726205 - Lower Right Engine Mount | Call For Details | |
| 57 | 726175 - Lower Left Engine Mount | Call For Details | |
| 58 | 643292 - Upper Right Engine Mount | Add To Cart | |
| 59 | 643291 - Upper Left Engine Mount | Add To Cart | |
| 60 | 424078 - Vibration Isolator | Add To Cart | |
| 61 | 185530 - 12v Voltage Regulator | Add To Cart | |
| 62 | 724091 - Coil Bracket | Add To Cart | |
| 63 | 100800 - Kubota Oil Filter | Add To Cart | |
| 64 | 603813 - Fuel Tank Assembly with Draw Tube | Add To Cart | |
| 65 | 643144 - Fuel Tank Mounting Bracket | Add To Cart | |
| 66 | 141125 - Fuel Cap w/Level | Add To Cart | |
| 67 | 101818 - Fuel Draw Tube | Add To Cart | |
| 68 | 280270 - Screw-Type Hose Clamp | Add To Cart | |
| 69 | 821713 - Fuel Line Hose | Add To Cart | |
| 70 | 643640 - left Steering Lever Pivot | Call For Details | |
| - | 643638 - right Top Control Steering Lever Pivot | Call For Details | |
| 71 | 283324 - Compression Spring | Add To Cart | |
| 72 | 257063 - Washer | Add To Cart | |
| - | 257064 - Washer | Call For Details | |
| 73 | 253470 - Nylon Insert Nut | Add To Cart | |
| 74 | 260654 - Cotter Pin | Call For Details | |
| 75 | 422560 - Nylon Bearing | Add To Cart | |
| 76 | 422580 - Nylon Bearing | Add To Cart | |
| 77 | 142222 - Mechanical Choke | Call For Details | |
| 78 | 283381 - Compression Spring | Add To Cart |
