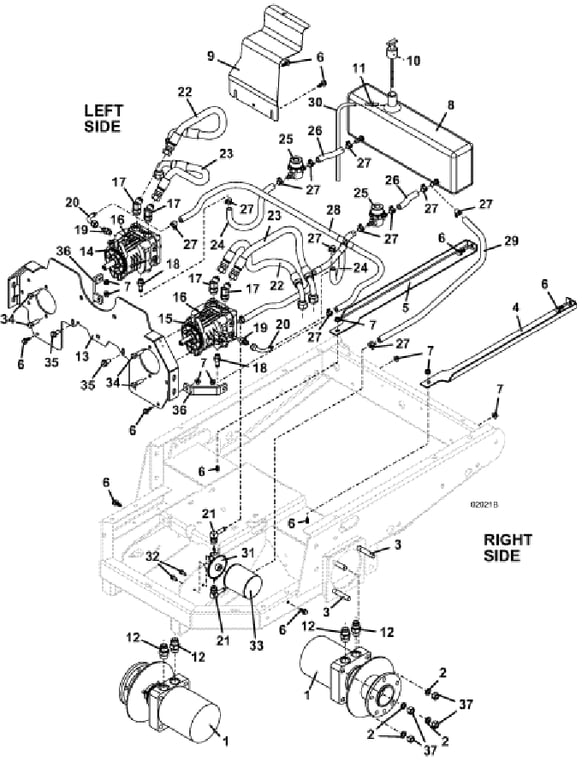

218 Reservoir & Hose Assembly - 2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603603 - Wheel Motor with Hub | Add To Cart | |
| 2 | 257432 - Lock Washer | Add To Cart | |
| 3 | 243595 - Square Head Bolt | Add To Cart | |
| 4 | 754051 - right Tank Rail | Call For Details | |
| 5 | 754052 - left Tank Rail | Call For Details | |
| 6 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 7 | 253035 - Whiz Nut | Add To Cart | |
| 8 | 603587 - M1 200 Oil Reservoir Assembly | Add To Cart | |
| - | 101875 - Fuel Tube Bushing (Grommet) | Add To Cart | |
| - | 363637 - Straight Fitting | Add To Cart | |
| - | 363638 - 90 degree Fitting | Add To Cart | |
| 9 | 723159 - Oil / Fuel Tank Anchor | Call For Details | |
| 10 | 100728 - M1 Oil Reservoir Dipstick | Add To Cart | |
| 11 | 363826 - Straight Barbed Fitting | Add To Cart | |
| 12 | 360069 - Adapter O Ring | Add To Cart | |
| - | 126529 - O Ring | Add To Cart | |
| - | 126537 - O Ring | Add To Cart | |
| 13 | 644634 - 200 Pump Plate with Fans | Call For Details | |
| 14 | 391456 - Lt Hydro Pump without Fan | Add To Cart | |
| 15 | 391457 - Rt Hydro Pump without Fan | Add To Cart | |
| 16 | 253043 - Whiz Nut | Add To Cart | |
| 17 | 360046 - Adapter Fitting | Add To Cart | |
| - | 126527 - O Ring | Add To Cart | |
| - | 126535 - O Ring | Add To Cart | |
| 18 | 363864 - O Ring Boss Fitting | Add To Cart | |
| 19 | 360057 - Adapter | Add To Cart | |
| 20 | 363846 - Fitting | Add To Cart | |
| 21 | 360056 - Adapter | Add To Cart | |
| 22 | 424350 - Hose Assembly | Add To Cart | |
| 23 | 424351 - Hose Assembly | Add To Cart | |
| 24 | 821782 - Hydraulic Hose | Add To Cart | |
| 25 | 366551 - In-Line Strainer | Add To Cart | |
| 26 | 821778 - Hydraulic Hose | Add To Cart | |
| 27 | 280264 - Spring Hose Clamp | Add To Cart | |
| 28 | 424318 - Hose Assembly | Add To Cart | |
| 29 | 821789 - Hydraulic Hose | Add To Cart | |
| 30 | 821724 - Clear Vent Hose | Add To Cart | |
| 31 | 101024 - M1 Series Filter Base | Add To Cart | |
| 32 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 33 | 100855 - High-Efficiency Transaxle Oil Filter | Add To Cart | |
| 34 | 243335 - Hex Bolt | Add To Cart | |
| 35 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 36 | 732882 - Pump Plate Rein Strap | Add To Cart | |
| 37 | 254470 - Nut | Add To Cart |
