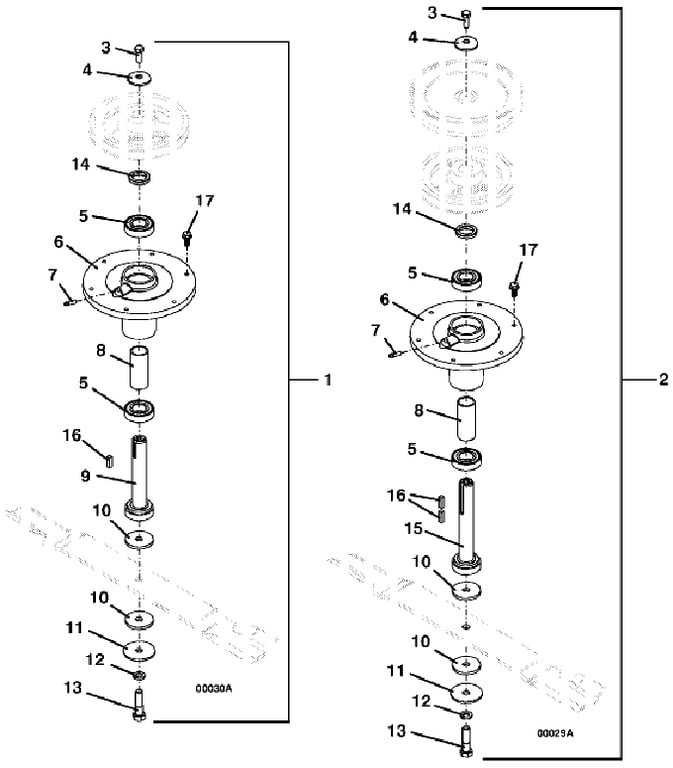

220/225 Blade Spindle Assembly - M172 - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623786 - Left & Right Spindle Assembly (includes items 3-14) | Add To Cart | |
| 2 | 623787 - Center Spindle Assembly (includes items 3-8 & 10-15) | Add To Cart | |
| 3 | 243331 - Hex Bolt .375-24 x 1 | Add To Cart | |
| 4 | 257041 - Cupped Washer | Add To Cart | |
| 5 | 110082 - Ball Bearing 25mm | Add To Cart | |
| 6 | 824150 - Spindle Housing | Add To Cart | |
| 7 | 280745 - Grease (Zerk) Fitting | Add To Cart | |
| 8 | 903643 - Deep Spindle Bearing Spacer | Add To Cart | |
| 9 | 604774 - Spindle Shaft Assembly | Add To Cart | |
| 10 | 421200 - Fiber Washer | Add To Cart | |
| 11 | 257061 - Washer | Add To Cart | |
| 12 | 257432 - Lock Washer | Add To Cart | |
| 13 | 243581 - Grade 5 Hex Bolt | Add To Cart | |
| 14 | 282615 - Spacer | Add To Cart | |
| 15 | 604773 - Spindle Shaft Assembly | Add To Cart | |
| 16 | 281582 - Square Key | Add To Cart | |
| 17 | 253192 - Hex Flange Whiz Bolt | Add To Cart |
