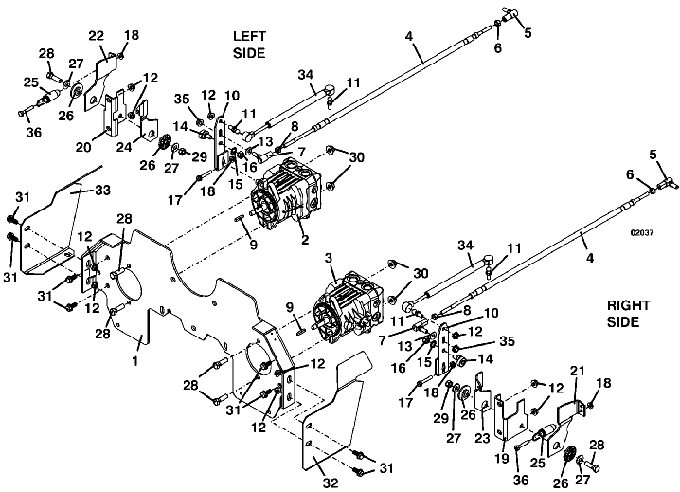

220/225 Drive Assembly 220 Continued Serial #5310174-5310443 Only - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644634 - Pump Plate 200 w/Fans | Call For Details | |
| 2 | 606570 - 10A Taper Shaft Pump Repair Kit | Call For Details | |
| 3 | 606571 - Rt 10A Taper Shaft Pump Repair Kit | Call For Details | |
| 4 | 604525 - M1 200 Steering Linkage | Add To Cart | |
| 5 | 265615 - Ball Joint, Right | Add To Cart | |
| 6 | 254441 - Nut | Add To Cart | |
| 7 | 265616 - Ball Joint, Left | Add To Cart | |
| 8 | 254444 - Nut | Add To Cart | |
| 9 | 281562 - Rectangle Key | Add To Cart | |
| 10 | 754094 - 10A Pump Control Arm | Add To Cart | |
| 11 | 265680 - Ball Stud | Add To Cart | |
| 12 | 253035 - Whiz Nut | Add To Cart | |
| 13 | 257020 - Washer | Add To Cart | |
| 14 | 603726 - Eccentric Roller Assembly | Add To Cart | |
| 15 | 257410 - External Star Washer | Add To Cart | |
| 16 | 254450 - Nut | Add To Cart | |
| 17 | 253182 - Hex Whiz Bolt | Add To Cart | |
| 18 | 253025 - Nut - Whiz | Add To Cart | |
| 19 | 754072 - 321 10A Neutral Return Mount | Add To Cart | |
| 20 | 754073 - 321 10A Lt Neutral Return Mount | Add To Cart | |
| 21 | 729136 - right Neutral Return Front Arm | Add To Cart | |
| 22 | 729137 - left Neutral Return Front Arm | Add To Cart | |
| 23 | 729138 - right Neutral Return Arm | Add To Cart | |
| 24 | 729139 - left Neutral Return Arm | Add To Cart | |
| 25 | 283823 - Extension Spring | Add To Cart | |
| 26 | 822304 - Neutral Return Pivot Bearing | Add To Cart | |
| 27 | 257030 - Washer | Add To Cart | |
| 28 | 243335 - Hex Bolt | Add To Cart | |
| 29 | 253890 - Lock Nut | Add To Cart | |
| 30 | 253043 - Whiz Nut | Add To Cart | |
| 31 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 32 | 754103 - 225 Rt Pump Plate Shield | Call For Details | |
| 33 | 754104 - 225 Lt Pump Plate Shield | Add To Cart | |
| 34 | 285031 - Damper | Add To Cart | |
| 35 | 253038 - Whiz Nut | Add To Cart | |
| 36 | 243035 - Hex Bolt | Add To Cart |
