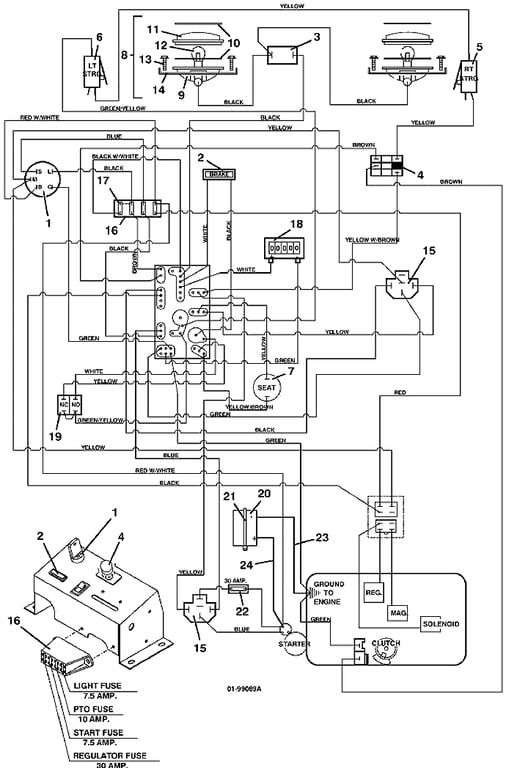

220 / 225 Electrical Wiring & Switches - 2000 & 2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 183806 - Briggs & Stratton / Kohler Ignition Switch with Key | Add To Cart | |
| - | 254498 - Nut .625-32 | Add To Cart | |
| 2 | 182326 - Brake Light Indicator | Add To Cart | |
| 3 | 184179 - Rocker Switch | Add To Cart | |
| 4 | 183925 - Push/Pull Switch | Add To Cart | |
| 5 | 183860 - Lever Switch | Add To Cart | |
| - | 720160 - right Steering Switch Mount | Add To Cart | |
| 6 | 183860 - Lever Switch | Add To Cart | |
| - | 720161 - left Steering Switch Mount | Add To Cart | |
| 7 | 183870 - Seat Switch | Add To Cart | |
| 8 | 603400 - Headlight Assembly | Add To Cart | |
| 9 | 182350 - Lamp Housing | Call For Details | |
| 10 | 420550 - Light Assembly Gasket | Add To Cart | |
| 11 | 182400 - Lamp Lens | Call For Details | |
| 12 | 182000 - Headlight Bulb | Add To Cart | |
| 13 | 252057 - #10 Screw | Add To Cart | |
| 14 | 720163 - Headlight Clamp | Add To Cart | |
| 15 | 184271 - 12 volt DC Relay with Mount | Add To Cart | |
| 16 | 181722 - Fuse Block | Add To Cart | |
| - | 162320 - Fuse ID Decal | Add To Cart | |
| 17 | 181470 - Auto ATC - 30 Fuse | Add To Cart | |
| - | 181462 - Auto ATC - 10 Fuse | Add To Cart | |
| - | 181460 - Auto ATC - 7.50 Fuse | Add To Cart | |
| 18 | 141551 - Snap-In Hour Meter | Add To Cart | |
| 19 | 183894 - Brake Interlock Switch | Add To Cart | |
| 20 | 180125 - 12 volt Battery | Add To Cart | |
| - | 644090 - Battery Box for 220 / 225 / 227 | Add To Cart | |
| 21 | 604785 - Battery Hold-Down Strap | Add To Cart | |
| 22 | 181735 - Inline Auto Fuse Holder | Add To Cart | |
| - | 181470 - Auto ATC - 30 Fuse | Add To Cart | |
| 23 | 180290 - 30' Black Battery Cable | Add To Cart | |
| 24 | 180330 - 30' Red Battery Cable | Add To Cart | |
| - | 425219 - Battery Terminal Boot | Add To Cart | |
| 25 | 605010 - Wiring Assembly - M1 | Add To Cart | |
| - | 161141 - Console Decal | Add To Cart |
