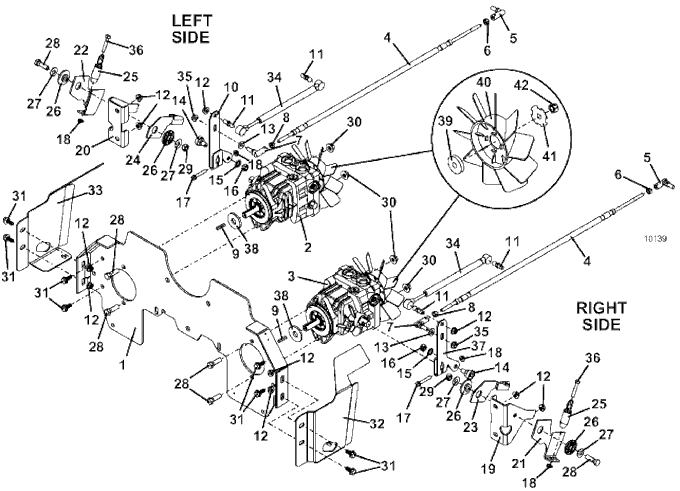

220 Drive Assembly - Diagram 2 - 2011
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644634 - 200 Pump Plate with Fans | Call For Details | |
| 2 | 391446 - H4 Left Hydro Pump w/7' Fan | Add To Cart | |
| 3 | 391447 - H4 Right Hydro Pump w/7' Fan | Call For Details | |
| 4 | 604524 - M1 Steering Linkage | Call For Details | |
| 5 | 265615 - Righthand Thread Ball Joint | Add To Cart | |
| 6 | 254441 - Nut | Add To Cart | |
| 7 | 265616 - Lefthand Thread Ball Joint | Add To Cart | |
| 8 | 254444 - Nut | Add To Cart | |
| 9 | 281560 - Square Key | Add To Cart | |
| 10 | 724953 - 200 Left Control Arm | Call For Details | |
| 11 | 265680 - Ball Stud | Add To Cart | |
| 12 | 253035 - Whiz Nut | Add To Cart | |
| 13 | 257020 - Washer | Add To Cart | |
| 14 | 603726 - Eccentric Roller Assembly | Add To Cart | |
| 15 | 257410 - Star External Washer | Add To Cart | |
| 16 | 254450 - Nut | Add To Cart | |
| 17 | 253182 - Hex Whiz Bolt | Add To Cart | |
| 18 | 253025 - Whiz Nut | Add To Cart | |
| 19 | 724956 - 200 Right Neutral Return Mount | Call For Details | |
| 20 | 724957 - 200 Left Neutral Return Mount | Call For Details | |
| 21 | 729136 - Right Neutral Return Front Arm | Add To Cart | |
| 22 | 729137 - Front Left Neutral Return Arm | Add To Cart | |
| 23 | 729138 - Front Right Neutral Return Arm | Add To Cart | |
| 24 | 729139 - Left Neutral Return Arm | Add To Cart | |
| 25 | 283823 - Extension Spring | Add To Cart | |
| 26 | 822304 - Neutral Return Pivot Bearing | Add To Cart | |
| 27 | 257030 - Washer | Add To Cart | |
| 28 | 243335 - Hex Bolt | Add To Cart | |
| 29 | 253890 - Lock Nut | Add To Cart | |
| 30 | 253043 - Whiz Nut | Add To Cart | |
| 31 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 32 | 729648 - 200 Right Pump Plate Shield | Add To Cart | |
| 33 | 729649 - 200 Left Pump Plate Shield | Call For Details | |
| 34 | 285031 - Damper | Add To Cart | |
| 35 | 253038 - Whiz Nut | Add To Cart | |
| 36 | 243035 - Hex Bolt | Add To Cart | |
| 37 | 724952 - 200 Rt Control Arm | Call For Details | |
| 38 | 884309 - Pump Pulley Spacer | Add To Cart | |
| 39 | 130430 - H2 Fan Hub | Add To Cart | |
| 40 | 130431 - H2 & T Hydro Fan | Add To Cart | |
| 41 | 130432 - Fan Retainer Washer | Add To Cart | |
| 42 | 253461 - Nylon Insert Nut | Add To Cart |
