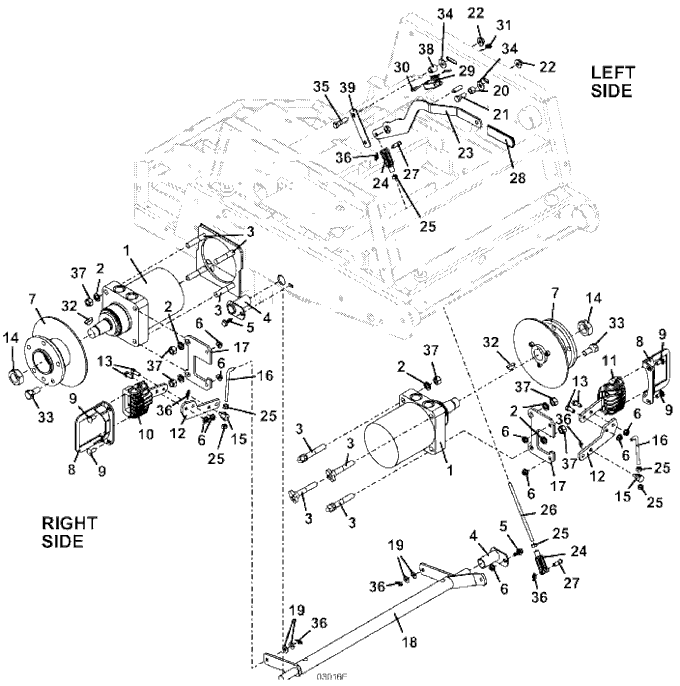

223 / 227 Wheel Motor & Brake Assembly Serial #5915225 & Below - 2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603603 - Wheel Motor with Hub | Add To Cart | |
| 2 | 257432 - Lock Washer | Add To Cart | |
| 3 | 243597 - Wheel Motor Diamond Head Bolt | Add To Cart | |
| 4 | 644077 - Bolt-In Brake Tube | Add To Cart | |
| 5 | 253192 - Hex Flange Whiz Bolt .312-18 x .75 | Add To Cart | |
| 6 | 253035 - Whiz Nut | Add To Cart | |
| 7 | 604440 - Bolt-On Rotor Wheel Hub | Add To Cart | |
| - | 259592 - Socket Head Screw | Add To Cart | |
| - | 775192 - Brake Rotor - 8.0 | Add To Cart | |
| 8 | 644121 - Caliper Mount | Add To Cart | |
| 9 | 243385 - Hex Bolt | Add To Cart | |
| - | 247130 - Carriage Bolt | Add To Cart | |
| - | 253035 - Whiz Nut | Add To Cart | |
| 10 | 481103 - Caliper Brake Assembly- counterclockwise | Add To Cart | |
| - | 603150 - Brake Pad Kit | Add To Cart | |
| - | 644121 - M1/G2 Caliper Mount | Add To Cart | |
| 11 | 481102 - Caliper Brake Assembly- clockwise | Add To Cart | |
| - | 603150 - Brake Pad Kit | Add To Cart | |
| - | 644121 - M1/G2 Caliper Mount | Add To Cart | |
| 12 | 776056 - Brake Caliper Arm M1 | Add To Cart | |
| 13 | 243195 - Whiz Bolt .312-18 x .500 | Add To Cart | |
| 14 | 254522 - Nut | Add To Cart | |
| 15 | 880926 - Brake Linkage Pin | Add To Cart | |
| 16 | 730158 - 928 Brake Linkage Rod | Add To Cart | |
| 17 | 776123 - 930D2/932G2 M1 Brake Mount | Add To Cart | |
| - | 776174 - Brake Mount- 7.75 Rotor | Add To Cart | |
| 18 | 644172 - Brake Tube 200/300B | Call For Details | |
| 19 | 257032 - Washer | Add To Cart | |
| 20 | 902280 - Spacer | Add To Cart | |
| 21 | 243330 - Hex Bolt .375-16 x 1 | Add To Cart | |
| 22 | 253043 - Whiz Nut .375-16 | Add To Cart | |
| 23 | 644447 - Brake Lever - M1 | Add To Cart | |
| 24 | 265537 - Clevis Yoke | Add To Cart | |
| 25 | 254441 - Nut .312-24 | Add To Cart | |
| 26 | 780157 - Linkage Rod | Add To Cart | |
| 27 | 261284 - Clevis Pin .312 x 1 | Add To Cart | |
| 28 | 422150 - Handle Grip | Add To Cart | |
| 29 | 183894 - Brake Interlock Switch | Add To Cart | |
| 30 | 250258 - Machine Screw | Add To Cart | |
| 31 | 253020 - Whiz Nut 10-24 | Add To Cart | |
| 32 | 281860 - Woodruff Key .312 x 1 | Add To Cart | |
| 33 | 248565 - Lug Bolt .500 x .875 | Add To Cart | |
| 34 | 257040 - Washer | Add To Cart | |
| 35 | 243340 - Hex Bolt | Add To Cart | |
| 36 | 260606 - Cotter Ring | Add To Cart | |
| 37 | 254470 - Nut | Add To Cart | |
| 38 | 902283 - Spacer | Add To Cart | |
| 39 | 774145 - Reinforcement Pin M1 | Add To Cart |
