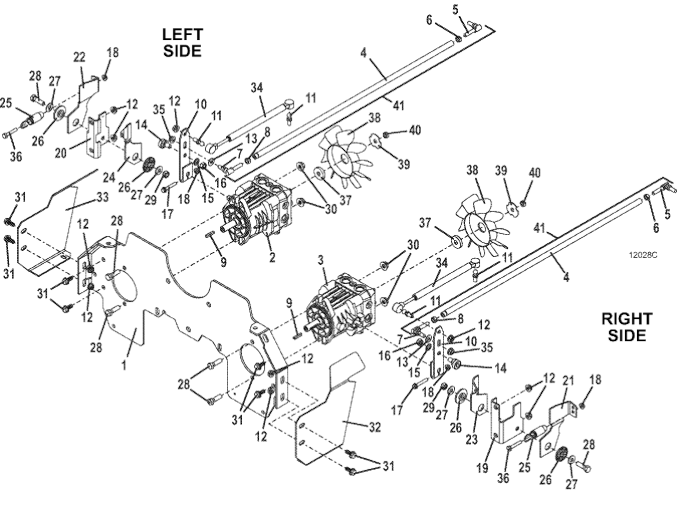

225 Drive Assembly - Continued - 2021
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644634 - Pump Plate with Fans - 200 | Call For Details | |
| 2 | 391464 - Hydro Pump with 7' Fan - Left | Add To Cart | |
| 3 | 391465 - Hydro Pump with 7' Fan - Right | Add To Cart | |
| 4 | 784091 - 200 Series Steering Link Tube | Call For Details | |
| 5 | 265617 - Right Male Ball Joint | Add To Cart | |
| 6 | 254441 - Nut .312-24 | Add To Cart | |
| 7 | 265618 - Left Male Ball Joint | Add To Cart | |
| 8 | 254444 - Nut .312-24 | Add To Cart | |
| 9 | 281560 - Square Key .187 x 1 | Add To Cart | |
| 10 | 754094 - 10A Pump Control Arm | Add To Cart | |
| 11 | 265680 - Ball Stud | Add To Cart | |
| 12 | 253035 - Whiz Nut | Add To Cart | |
| 13 | 257020 - Washer | Add To Cart | |
| 14 | 603726 - Eccentric Roller Assembly | Add To Cart | |
| 15 | 257410 - External Star Washer | Add To Cart | |
| 16 | 254450 - Nut .375-16 | Add To Cart | |
| 17 | 243038 - Hex Bolt | Add To Cart | |
| 18 | 253025 - Whiz Nut .250-20 | Add To Cart | |
| 19 | 754072 - Right Neutral Return Mount - 321 10A | Add To Cart | |
| 20 | 754073 - Left Neutral Return Mount - 321 10A | Add To Cart | |
| 21 | 729136 - Neutral Return Front Arm - right | Add To Cart | |
| 22 | 729137 - Neutral Return Front Arm - left | Add To Cart | |
| 23 | 729138 - Neutral Return Arm - right | Add To Cart | |
| 24 | 729139 - Neutral Return Arm - left | Add To Cart | |
| 25 | 283823 - Extension Spring | Add To Cart | |
| 26 | 822304 - Neutral Return Pivot Bearing | Add To Cart | |
| 27 | 257030 - Washer | Add To Cart | |
| 28 | 243335 - Hex Bolt .375-16 x 1.25 | Add To Cart | |
| 29 | 253890 - Lock Nut .375-16 | Add To Cart | |
| 30 | 253043 - Whiz Nut .375-16 | Add To Cart | |
| 31 | 253192 - Hex Flange Whiz Bolt .312-18 x .75 | Add To Cart | |
| 32 | 754103 - Right Pump Plate Shield 225 | Call For Details | |
| 33 | 754104 - Left Pump Plate Shield 225 | Add To Cart | |
| 34 | 285032 - Reverse Damper with Ball Socket | Add To Cart | |
| 35 | 253038 - Whiz Nut .312-24 | Add To Cart | |
| 36 | 243035 - Hex Bolt .250-20 x 1.500 | Add To Cart | |
| 37 | 130130 - Fan Hub | Add To Cart | |
| 38 | 130131 - 7' Fan | Add To Cart | |
| 39 | 130132 - Slotted Washer | Add To Cart | |
| 40 | 253452 - Side Lock Nut | Add To Cart | |
| 41 | 606525 - 200 Series Steering Linkage Kit(Includes Items 4-8) | Add To Cart |
