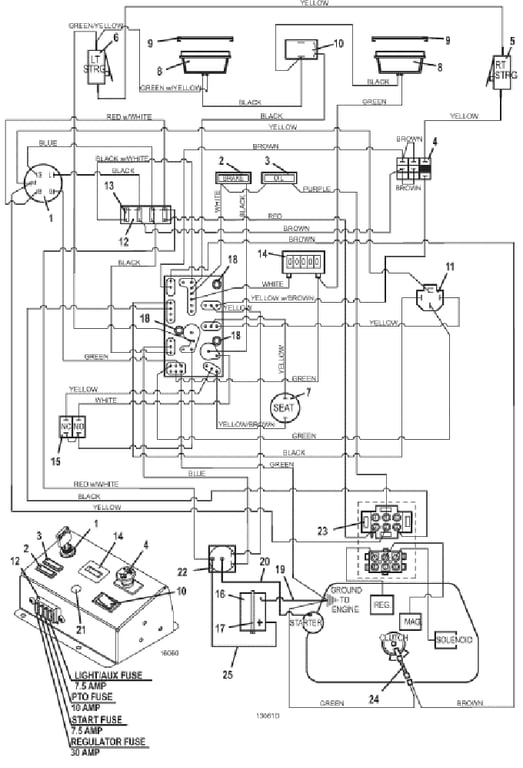

226V Electrical Wiring & Lights-Serial #6174800 & Above - 2017
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 183806 - Briggs & Stratton / Kohler Ignition Switch with Key | $17.55 | Add To Cart |
| - | 254498 - Nut | $1.58 | Add To Cart |
| 2 | 182326 - Brake Light Indicator | $10.03 | Add To Cart |
| 3 | 182327 - Oil Light Indicator | $10.03 | Add To Cart |
| - | 183770 - Oil Pressure Switch | $15.41 | Add To Cart |
| 4 | 183925 - Push/Pull Switch | $19.31 | Add To Cart |
| 5 | 183860 - Lever Switch | $11.86 | Add To Cart |
| - | 720160 - Steering Switch Mount - right | $5.53 | Add To Cart |
| 6 | 183860 - Lever Switch | $11.86 | Add To Cart |
| - | 720161 - Steering Switch Mount - left | $5.53 | Add To Cart |
| 7 | 183871 - Twist-In Seat Switch | $13.00 | Add To Cart |
| 8 | 182261 - LED Flood Worklamp | $107.35 | Add To Cart |
| 9 | 182251 - Snap Mount Worklamp Bezel | $14.74 | Add To Cart |
| 10 | 184179 - Rocker Switch | $14.11 | Add To Cart |
| 11 | 184271 - 12V DC Relay with Mount | $18.78 | Add To Cart |
| 12 | 181720 - Fuse Block | $24.70 | Add To Cart |
| - | 162320 - Fuse ID Decal | $2.64 | Add To Cart |
| - | 181721 - Fuse Block Cover | $7.42 | Add To Cart |
| 13 | 181470 - 30 amp Auto ATC Fuse | $1.47 | Add To Cart |
| - | 181460 - 7.5 Amp Auto ATC Fuse | $1.47 | Add To Cart |
| - | 181462 - 10 Amp Auto ATC Fuse | $1.47 | Add To Cart |
| 14 | 141551 - Snap In Hour Meter | $37.83 | Add To Cart |
| 15 | 183894 - Brake Interlock Switch | $10.03 | Add To Cart |
| 16 | 180125 - 12 Volt Wet Battery | Add To Cart | |
| - | 180126 - 12 Volt Dry Battery | $159.60 | Add To Cart |
| - | 723038 - 200V Battery Tray | Call for Details | |
| 17 | 604785 - Battery Hold Down Strap | $13.07 | Add To Cart |
| 18 | 423690 - PC Board Support Spacer | $0.96 | Add To Cart |
| 19 | 180280 - 20 inch Black Battery Cable | $11.17 | Add To Cart |
| 20 | 180309 - 11 inch Red Battery Cable | $7.83 | Add To Cart |
| - | 425215 - Alternator Terminal Red Boot | $3.05 | Add To Cart |
| - | 425219 - Starter Terminal Boot | $2.97 | Add To Cart |
| 21 | 422072 - Plastic Hole Plug | Call for Details | |
| 22 | 184251 - 4-Post Solenid Switch Relay | $28.28 | Add To Cart |
| 23 | 184911 - 6 Terminal Connector (Amp) | $0.90 | Add To Cart |
| 24 | 388840 - Pigtail Cable Assembly | $18.53 | Add To Cart |
| 25 | 180315 - 16' Red Battery Cable | $7.00 | Add To Cart |
| 26 | 605921 - 226V Wiring Assembly | Call for Details |
