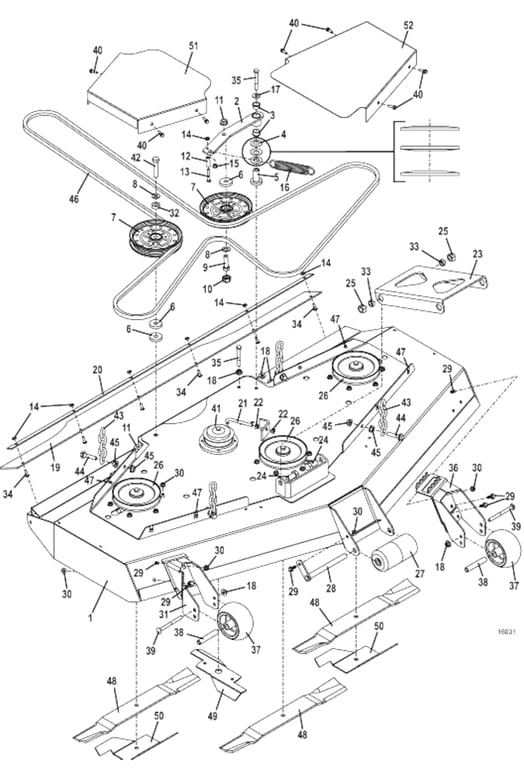

226V-G4 61 Inch Rear Discharge Deck Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645195 - 100V/61R Deck | Call For Details | |
| 2 | 824462 - Idler Arm Assembly | Add To Cart | |
| 3 | 121756 - Oilite Bearing | Add To Cart | |
| 4 | 257319 - Spring Washer | Add To Cart | |
| 5 | 121651 - Pedestal Bearing | Add To Cart | |
| 6 | 257160 - Washer | Add To Cart | |
| 7 | 393250 - Idler | Add To Cart | |
| 8 | 257062 - Washer | Add To Cart | |
| 9 | 243575 - Hex Bolt | Add To Cart | |
| 10 | 423670 - Idler Arm Stabilizer Cap | Add To Cart | |
| 11 | 253067 - Flanged Spiral Lock Nut | Add To Cart | |
| 12 | 784057 - Guide Tube | Add To Cart | |
| 13 | 243038 - Hex Bolt | Add To Cart | |
| 14 | 253025 - Whiz Nut | Add To Cart | |
| 15 | 422520 - Nylon Bearing | Add To Cart | |
| 16 | 283848 - Extension Spring | Add To Cart | |
| 17 | 257040 - Washer | Add To Cart | |
| 18 | 253043 - Whiz Nut | Add To Cart | |
| 19 | 424154 - Flap Deck | Call For Details | |
| 20 | 782364 - Flap Strap | Call For Details | |
| 21 | 730391 - Idler Adjustment J Bolt | Add To Cart | |
| 22 | 254450 - Nut | Add To Cart | |
| 23 | 776218 - 100V/61 Radius Arm | Call For Details | |
| 24 | 243795 - Hex Bolt | Add To Cart | |
| 25 | 253970 - Lock Nut | Add To Cart | |
| 26 | 415892 - Sheave | Add To Cart | |
| 27 | 603725 - Center Roller Assembly | Add To Cart | |
| 28 | 644512 - Roller Lock Pin | Add To Cart | |
| 29 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 30 | 253035 - Whiz Nut | Add To Cart | |
| 31 | 645581 - Right Anti-Scalp Roller Mount Rear Deck | Add To Cart | |
| 32 | 902313 - Spacer | Add To Cart | |
| 33 | 902422 - Axle Spacer | Add To Cart | |
| 34 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 35 | 243360 - Hex Bolt | Add To Cart | |
| 36 | 645589 - Left Anti-Scalp Roller Mount | Add To Cart | |
| 37 | 484230 - Anti-Scalp Center Hub Wheel | Add To Cart | |
| 38 | 942137 - Bearing Tube | Add To Cart | |
| 39 | 247310 - Carriage Bolt | Add To Cart | |
| 40 | 253175 - Hex Bolt | Add To Cart | |
| 41 | 415010 - Flat Sheave | Add To Cart | |
| 42 | 243590 - Hex Bolt | Add To Cart | |
| 43 | 820331 - M1 Chain 5 Links | Add To Cart | |
| 44 | 243458 - Grade 8 Hex Bolt | Add To Cart | |
| 45 | 253058 - Whiz Nut | Add To Cart | |
| 46 | 382101 - Belt | Add To Cart | |
| 47 | 254431 - Speed Nut | Add To Cart | |
| 48 | 320242 - 21 Medium Lift Blade | Call For Details | |
| 49 | 766026 - Grass Thrower | Add To Cart | |
| 50 | 766025 - Grass Thrower | Add To Cart | |
| 51 | 751055 - 100/61 Right Belt Shield | Call For Details | |
| 52 | 751056 - 100/61 Left Belt Shield | Call For Details |
