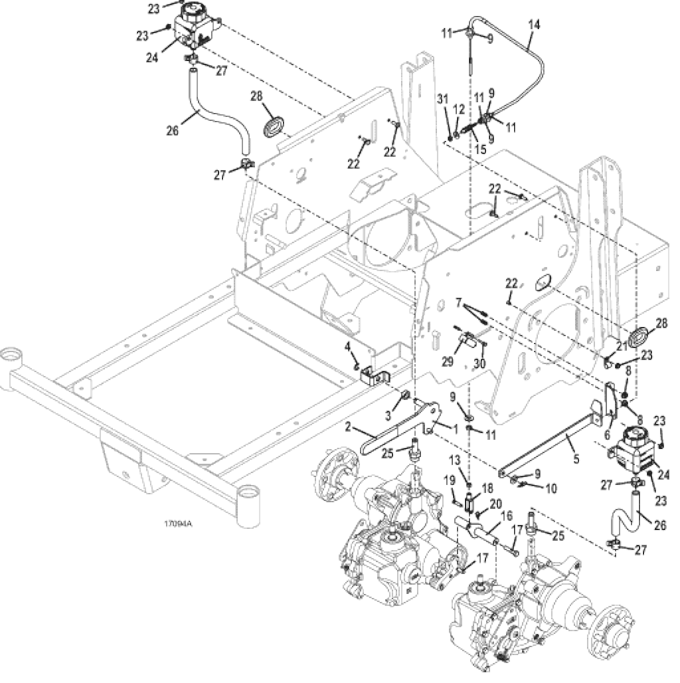

226V-G4 Brake Assembly & Expansion Tanks - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645103 - Brake Lever | Call For Details | |
| 2 | 422155 - Handle Grip | Add To Cart | |
| 3 | 902314 - Spacer | Add To Cart | |
| 4 | 263500 - External Retainer | Add To Cart | |
| 5 | 645801 - Brake Cable Strap | Call For Details | |
| 6 | 724353 - Brake Cable Bracket | Call For Details | |
| 7 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 8 | 253035 - Whiz Nut | Add To Cart | |
| 9 | 257030 - Washer | Add To Cart | |
| 10 | 260608 - Cotter Ring | Add To Cart | |
| 11 | 254441 - Nut | Add To Cart | |
| 12 | 257020 - Washer | Add To Cart | |
| 13 | 254434 - Nut | Add To Cart | |
| 14 | 323601 - Brake Cable Assembly | Add To Cart | |
| 15 | 283311 - Compression Spring | Add To Cart | |
| 16 | 645117 - Brake Rod | Call For Details | |
| 17 | 243215 - Hex Bolt | Add To Cart | |
| 18 | 265530 - Clevis Yoke | Call For Details | |
| 19 | 261236 - Clevis Pin | Add To Cart | |
| 20 | 260606 - Cotter Ring | Add To Cart | |
| 21 | 180605 - .5' Loom Clamp | Call For Details | |
| 22 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 23 | 253025 - Whiz Nut | Add To Cart | |
| 24 | 421982 - Expansion Tank | Call For Details | |
| 25 | 360083 - Adapter | Call For Details | |
| 26 | 821811 - Hydraulic Hose | Call For Details | |
| 27 | 280266 - Spring Hose Clamp | Add To Cart | |
| 28 | 424290 - Grommet | Add To Cart | |
| 29 | 183894 - Interlock Plunger Switch | Add To Cart | |
| 30 | 250258 - Machine Screw | Add To Cart | |
| - | 254421 - Nut | Add To Cart | |
| 31 | 253441 - Nylon Insert Nut | Add To Cart |
