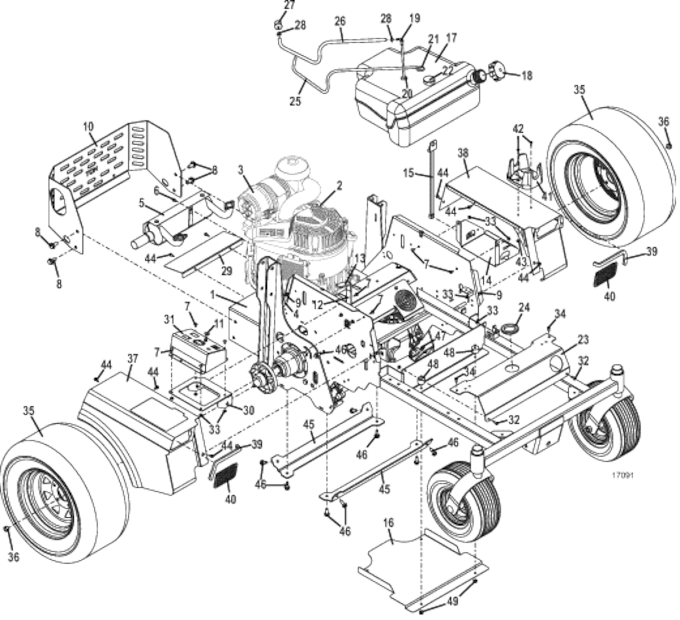

226V-G4 Tractor Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645383 - 52 Inch Lower Frame | Call For Details | |
| - | 645384 - 61 Inch Lower Frame | Call For Details | |
| 2 | 100155 - 26HP Vanguard Engine | Call For Details | |
| 3 | 100207 - 90 Degree Nelson Air Cleaner | Call For Details | |
| - | 100197 - Air Cleaner Cover Clip | Add To Cart | |
| - | 100199 - Air Cleaner End Cap | Add To Cart | |
| - | 100203 - Air Hood | Call For Details | |
| - | 100936 - Dust Ejector | Add To Cart | |
| - | 100937 - Outer HD Air Filter | Call For Details | |
| - | 100207 - Inner HD Air Filter | Call For Details | |
| 4 | 100803 - Briggs & Stratton Oil Filter | Add To Cart | |
| 5 | 101197 - Briggs & Stratton Verical Engine Muffler | Add To Cart | |
| - | 101043 - Briggs & Stratton Verical Engine Exhaust Gasket | Call For Details | |
| 6 | 243016 - Hex Bolt | Add To Cart | |
| 7 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 8 | 243565 - Hex Bolt | Add To Cart | |
| - | 253066 - Whiz Nut | Add To Cart | |
| 9 | 254431 - Speed Nut | Add To Cart | |
| 10 | 729745 - Rear Guard Shield | Add To Cart | |
| 11 | 142250 - Mechanical Choke | Add To Cart | |
| 12 | 603854 - Throttle Assembly | Call For Details | |
| - | 323643 - Control Cable Assembly | Add To Cart | |
| - | 722736 - Heavy Duty Throttle Stop | Add To Cart | |
| 13 | 422155 - Handle Grip | Add To Cart | |
| 14 | 723062 - 126 Battery Mount | Call For Details | |
| 15 | 604785 - Battery Hold Down Strap | Add To Cart | |
| 16 | 722931 - 200VG4 Tank Shield | Call For Details | |
| 17 | 605805 - M2 Gas Tank Assembly | Call For Details | |
| 18 | 100212 - Fuel Cap with Sealed Tether | Add To Cart | |
| 19 | 363919 - Fuel Tube | Add To Cart | |
| 20 | 424294 - Grommet | Add To Cart | |
| 21 | 606830 - Fuel Tank Valve Kit | Add To Cart | |
| 22 | 141139 - In-tank Fuel Guage | Add To Cart | |
| - | 424276 - Grommet | Add To Cart | |
| 23 | 729768 - Front Panel | Call For Details | |
| 24 | 424294 - Grommet | Add To Cart | |
| 25 | 821746 - Fuel Vapor Hose | Call For Details | |
| 26 | 821769 - Fuel Hose | Add To Cart | |
| 27 | 366560 - Briggs & Stratton In-Line Fuel Filter | Add To Cart | |
| 28 | 280260 - Hose Spring Clamp | Add To Cart | |
| 29 | 751043 - Heat Shield | Add To Cart | |
| 30 | 644411 - 200V Console Bracket | Call For Details | |
| 31 | 693123 - 200V Console with Decal | Add To Cart | |
| 32 | 253178 - Truss Whiz Bolt | Add To Cart | |
| 33 | 253025 - Whiz Nut | Add To Cart | |
| 34 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 35 | 483960 - Wheel & Tire - Turf | Add To Cart | |
| - | 482485 - Turf Tire | Add To Cart | |
| - | 483445 - Wheel | Add To Cart | |
| 36 | 254472 - Lug Nut | Add To Cart | |
| 37 | 693206 - Right Fender with Decals | Call For Details | |
| 38 | 693207 - Left Fender with Decals | Call For Details | |
| 39 | 822632 - Trim | Add To Cart | |
| 40 | 422079 - Work Lamp Hole Plug | Add To Cart | |
| 41 | 150225 - Cup Holder | Add To Cart | |
| 42 | 259030 - Cap Screw | Add To Cart | |
| 43 | 254436 - Nut | Add To Cart | |
| 44 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 45 | 725109 - 200VG4 Skid Plate | Call For Details | |
| 46 | 253203 - Flenged Whiz Bolt | Add To Cart | |
| 47 | 253043 - Whiz Nut | Add To Cart | |
| 48 | 424074 - Vibration Isolator | Add To Cart | |
| 49 | 253035 - Whiz Nut | Add To Cart |
