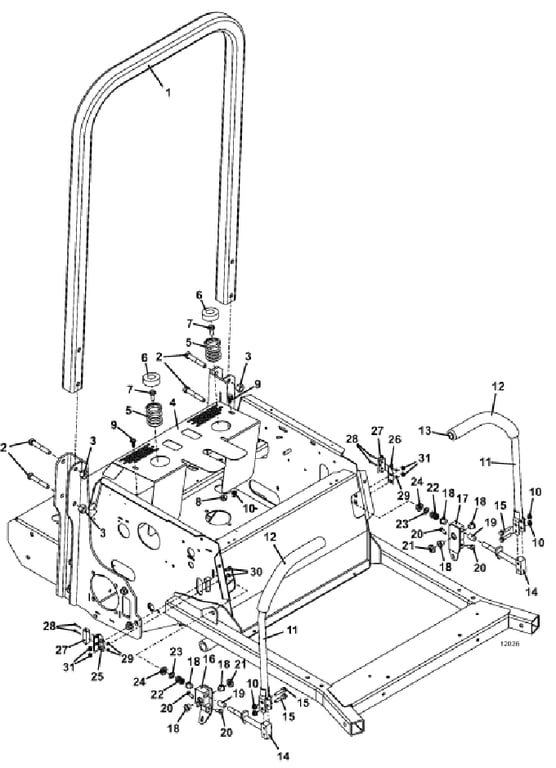

226V ROPS & Steering Assembly - 2018
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 324108 - 200V ROPS Tube | Call For Details | |
| 2 | 243600 - Hex Bolt | Add To Cart | |
| 3 | 253930 - Lock Nut | Add To Cart | |
| 4 | 722924 - 200V Fan Shield | Add To Cart | |
| 5 | 283516 - Compression Spring | Add To Cart | |
| 6 | 422127 - Seat Spring Cap | Add To Cart | |
| 7 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 8 | 253043 - Whiz Nut | Add To Cart | |
| 9 | 253192 - Hex Whiz Flange Bolt | Add To Cart | |
| 10 | 253035 - Whiz Nut | Add To Cart | |
| 11 | 605741 - 200V Standard Steering Lever Assembly | Add To Cart | |
| 12 | 422179 - Handle Grip | Call For Details | |
| 13 | 422095 - .75 ID Vinyl Cap | Call For Details | |
| 14 | 643926 - Adjustable Steering Lever Mount | Add To Cart | |
| 15 | 253195 - Whiz Hex Flange Bolt | Add To Cart | |
| 16 | 604713 - Rt Steering Pivot w/Stop & Bearings | Add To Cart | |
| 17 | 604714 - Lt Steering Pivot w/Stop & Bearings | Add To Cart | |
| 18 | 422556 - Sleeve Bearing w/Flange | Add To Cart | |
| 19 | 422557 - Sleeve Bearing | Add To Cart | |
| 20 | 243197 - Hex Bolt | Add To Cart | |
| 21 | 253470 - Nylon Insert Nut | Add To Cart | |
| 22 | 283324 - Compression Spring | Add To Cart | |
| 23 | 257063 - Washer | Add To Cart | |
| 24 | 253470 - Nylon Insert Nut | Add To Cart | |
| 25 | 720160 - Rt Steering Switch Mount | Add To Cart | |
| 26 | 720161 - Lt Steering Switch Mount | Add To Cart | |
| 27 | 183860 - Lever Switch | Add To Cart | |
| 28 | 250318 - Machine Screw | Call For Details | |
| 29 | 254400 - Nut | Call For Details | |
| 30 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 31 | 253025 - Whiz Nut | Add To Cart |
