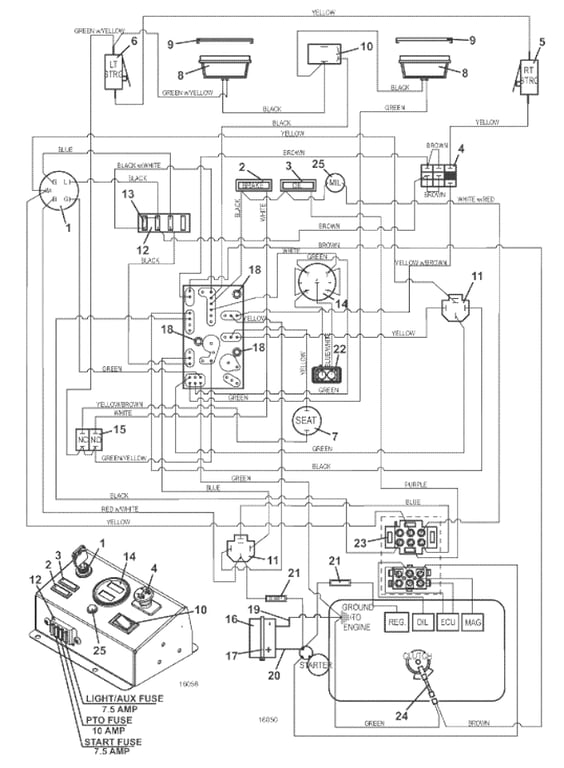

227V-EFI Wiring Diagram - 2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 183806 - Briggs & Stratton / Kohler Ignition Switch with Key | Add To Cart | |
| - | 101101 - Ignition Key with Cover | Add To Cart | |
| - | 254498 - Nut | Add To Cart | |
| - | 422078 - Plastic Panel | Add To Cart | |
| 2 | 182326 - Brake Light Indicator | Add To Cart | |
| 3 | 182327 - Oil Light Indicator | Add To Cart | |
| 4 | 183925 - Push/Pull Switch | Add To Cart | |
| - | 184942 - 9-Way Connector | Add To Cart | |
| 5 | 183860 - Lever Switch | Add To Cart | |
| - | 720160 - Steering Switch Mount - right | Add To Cart | |
| 6 | 183860 - Lever Switch | Add To Cart | |
| - | 720161 - Steering Switch Mount - left | Add To Cart | |
| 7 | 183871 - Twist-In Seat Switch | Add To Cart | |
| 8 | 182261 - LED Flood Worklamp | Add To Cart | |
| 9 | 182251 - Snap Mount Worklamp Bezel | Add To Cart | |
| 10 | 184179 - Rocker Switch | Add To Cart | |
| 11 | 184271 - 12V DC Relay with Mount | Add To Cart | |
| 12 | 181720 - Fuse Block | Add To Cart | |
| - | 162355 - Fuse ID Decal | Call For Details | |
| - | 181721 - Fuse Block Cover | Add To Cart | |
| 13 | 181470 - 30 amp Auto ATC Fuse | Add To Cart | |
| - | 181460 - 7.5 Amp Auto ATC Fuse | Add To Cart | |
| - | 181462 - 10 Amp Auto ATC Fuse | Add To Cart | |
| 14 | 141122 - Fuel Guage with Hour Meter | Add To Cart | |
| 15 | 183894 - Brake Interlock Switch | Add To Cart | |
| 16 | 180125 - 12 Volt Wet Battery | Add To Cart | |
| - | 723038 - 200V Battery Tray | Call For Details | |
| 17 | 604785 - Battery Hold Down Strap | Add To Cart | |
| 18 | 423690 - PC Board Support Spacer | Add To Cart | |
| 19 | 180280 - 20 inch Black Battery Cable | Add To Cart | |
| - | 253035 - Whiz Nut | Add To Cart | |
| - | 253193 - Flanged Hex Whiz Bolt | Add To Cart | |
| 20 | 180315 - 16 inch Red Battery Cable | Add To Cart | |
| - | 425215 - Alternator Terminal Red Boot | Add To Cart | |
| - | 425219 - Starter Terminal Boot | Add To Cart | |
| 21 | 181735 - Inline Auto Fuse Holder | Add To Cart | |
| 21 | 181470 - 30 Amp Auto ATC Fuse | Add To Cart | |
| 22 | 184907 - 2 Terminal Connector | Add To Cart | |
| - | 141235 - Fuel Sender | Add To Cart | |
| 23 | 184911 - 6 Terminal Connector (Amp) | Add To Cart | |
| - | 181768 - Mate N-Lock Pin | Call For Details | |
| 24 | 388840 - Pigtail Cable Assembly | Add To Cart | |
| 25 | 182322 - MIL Light Indicator | Add To Cart | |
| 26 | 161093 - Console Decal | Call For Details | |
| 26 | 605922 - 227V-EFI Wiring Assembly | Call For Details |
