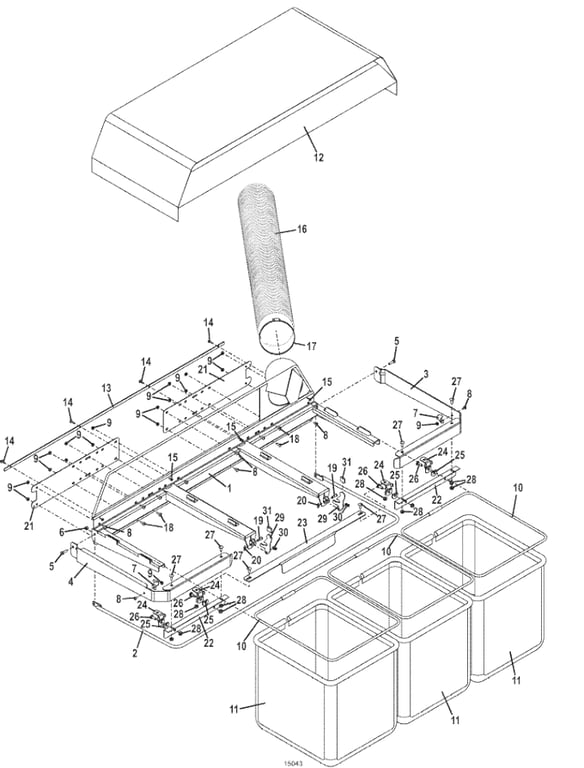

300V Series MidMount Tractors - Model 12F CatcherPart Number 504199
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645325 - 12F 3 Bag Frame | Add To Cart | |
| 2 | 644709 - 3 Bag Top Hinge | Add To Cart | |
| 3 | 754132 - Right Cloth Top Shield | Call For Details | |
| 4 | 754133 - Left Cloth Top Shield | Call For Details | |
| 5 | 243205 - Hex Bolt | Add To Cart | |
| 6 | 253450 - Nylon Insert Nut | Add To Cart | |
| 7 | 180630 - Conduit Clip | Add To Cart | |
| 8 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 9 | 253025 - Whiz Nut | Add To Cart | |
| 10 | 645723 - 8/12HT Bag Rod | Add To Cart | |
| 11 | 420019 - Hard Bottom Black Vac Bag | Add To Cart | |
| 12 | 420037 - 3 Bag Black Fabric Catcher Top | Add To Cart | |
| 13 | 782345 - 3 Bag Cover Hold Down Strap | Call For Details | |
| 14 | 253167 - Hex Whiz Bolt | Add To Cart | |
| 15 | 253020 - Whiz Nut | Add To Cart | |
| 16 | 424408 - 57' Flex Hose | Add To Cart | |
| 17 | 280345 - 6' Hose Clamp | Add To Cart | |
| 18 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 19 | 261284 - Clevis Pin | Add To Cart | |
| 20 | 260606 - Cotter Ring | Add To Cart | |
| 21 | 773090 - Channel Suooprt Plate | Call For Details | |
| 22 | 754060 - Right (and Left) Cloth Top Shield Half | Call For Details | |
| 23 | 754166 - Center Bag Stop | Call For Details | |
| 24 | 766014 - 8F/12F Rod Clamp | Call For Details | |
| 25 | 901312 - Rod Clamp Spacer | Call For Details | |
| 26 | 247135 - Carriage Bolt | Add To Cart | |
| 27 | 247130 - Carriage Bolt | Add To Cart | |
| 28 | 253035 - Whiz Nut | Add To Cart | |
| 29 | 774004 - Catcher Top Latch | Call For Details | |
| 30 | 284407 - Torsion Spring | Add To Cart | |
| 31 | 422087 - Clutch Bracket Cover | Add To Cart | |
| 31 | 504199 - 12F Collector | Call For Details |
