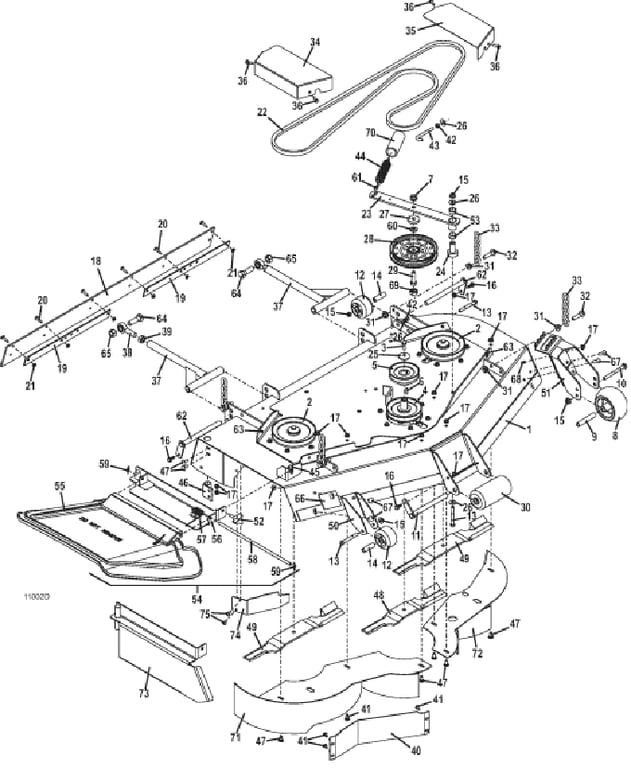

321D Deck Assembly - M148 - 2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645155 - M148D Deck | Call For Details | |
| 2 | 415892 - Sheave | Add To Cart | |
| 3 | 243331 - Hex Bolt | Add To Cart | |
| 4 | 415902 - Big Split Sheave | Add To Cart | |
| 5 | 415891 - Split Sheave | Add To Cart | |
| 6 | 281582 - Square Key | Add To Cart | |
| 7 | 253067 - Flange Spiral Lock Nut | Add To Cart | |
| 8 | 484230 - Anti-Scalp Wheel 5 x 2.75 | Add To Cart | |
| 9 | 942137 - Bearing Tube | Add To Cart | |
| 10 | 247310 - Carriage Bolt | Add To Cart | |
| 11 | 644512 - Roller Lock Pin | Add To Cart | |
| 12 | 426122 - Roller 3 x 2' | Add To Cart | |
| 13 | 243365 - Hex Bolt .375-16 x 3 | Add To Cart | |
| 14 | 902284 - Roller Mount Spacer | Add To Cart | |
| 15 | 253043 - Whiz Nut .375-16 | Add To Cart | |
| 16 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 17 | 253035 - Whiz Nut | Add To Cart | |
| 18 | 424179 - M148 Inch Deck Flap | Add To Cart | |
| 19 | 774219 - Rt Deflector Strap | Call For Details | |
| 20 | 253181 - Bolt | Add To Cart | |
| 21 | 253025 - Whiz Nut .250-20 | Add To Cart | |
| 22 | 382086 - Belt | Add To Cart | |
| 23 | 824488 - Idler Arm Assembly | Add To Cart | |
| 24 | 121650 - Pedestal Bearing .750 x 1.5 | Add To Cart | |
| 25 | 257041 - Cupped Washer | Add To Cart | |
| 26 | 257040 - Washer | Add To Cart | |
| 27 | 257160 - Washer | Add To Cart | |
| 28 | 393250 - Idler | Add To Cart | |
| 29 | 243575 - Hex Bolt | Add To Cart | |
| 30 | 603725 - 2 Piece Center Roller Assembly | Add To Cart | |
| 31 | 253058 - Whiz Nut | Add To Cart | |
| 32 | 243458 - GR 8 Hex Bolt | Add To Cart | |
| 33 | 820331 - Chain - 5 Links M1 | Add To Cart | |
| 34 | 722938 - Rt Belt Shield M1/48-D | Add To Cart | |
| 35 | 722939 - Lt Belt Shield M1/48-D | Add To Cart | |
| 36 | 253175 - Hex Whiz Bolt .25-20 x .75 | Add To Cart | |
| 37 | 604674 - Radius Arm Assembly - 321D/48-D | Call For Details | |
| 38 | 265665 - Rod End | Add To Cart | |
| 39 | 254493 - Nut .625-18 | Add To Cart | |
| 40 | 729777 - M148-D Aux Front Shroud | Add To Cart | |
| 41 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 42 | 254450 - Nut .375-16 | Add To Cart | |
| 43 | 730391 - Idler Adjustment J Bolt | Add To Cart | |
| 44 | 283848 - Extension Spring | Add To Cart | |
| 45 | 254448 - Speed Nut | Add To Cart | |
| 46 | 643632 - Pivot Mount | Add To Cart | |
| 47 | 247130 - Carriage Bolt .312 x .75 | Add To Cart | |
| 48 | 320234 - High Lift Notch Blade - 15' | Call For Details | |
| - | 320231 - Medium Lift Blade - 15' | Call For Details | |
| - | 320233 - Contour Blade - 15' | Call For Details | |
| - | 320235 - High-Low Mulch Blade - 15' | Call For Details | |
| 49 | 320239 - High Lift Notch Blade - 18' | Call For Details | |
| - | 320236 - Medium Lift Blade - 18' | Call For Details | |
| - | 320238 - Contour Blade - 18' | Call For Details | |
| - | 320240 - High-Low Mulch Blade - 18' | Call For Details | |
| 49 | 320317 - Laser Edge High Lift Blade - 18' | Call For Details | |
| - | 320321 - Shredder Blade - 18' | Call For Details | |
| 50 | 754203 - Rt M1/M248 Formed Roller Mount | Add To Cart | |
| 51 | 645589 - Anti-Scalp Roller Mount - Left Tread | Add To Cart | |
| 52 | 252821 - 3 Prong HD Deck Stud | Add To Cart | |
| 53 | 121756 - Oilite Bearing | Add To Cart | |
| 54 | 604318 - Flex Discharge Shield Assembly | Add To Cart | |
| 55 | 422042 - Flex Discharge Shield | Add To Cart | |
| 56 | 644570 - Flex Discharge Shield Mount | Add To Cart | |
| 57 | 284406 - Torsion Spring | Add To Cart | |
| 58 | 780650 - Flex Discharge Shield Pin | Add To Cart | |
| 59 | 260608 - Cotter Ring | Add To Cart | |
| 60 | 257062 - Washer | Add To Cart | |
| 61 | 422520 - Nylon Bearing | Add To Cart | |
| 62 | 644636 - 9772 Radius Arm Pin | Add To Cart | |
| 63 | 254431 - Speed Nut | Add To Cart | |
| 64 | 243810 - Hex Bolt | Add To Cart | |
| 65 | 253970 - Lock Nut | Add To Cart | |
| 66 | 776231 - Roller Spacer | Add To Cart | |
| 67 | 247135 - Carriage Bolt | Add To Cart | |
| 68 | 253193 - Whiz Hex Flange Bolt | Add To Cart | |
| 69 | 423670 - Idler Arm Stabilizer Cap | Add To Cart | |
| 70 | 822686 - Clear Tubing | Add To Cart | |
| 71 | 645600 - M1/48-D Rt Mulch Plate | Call For Details | |
| 72 | 645601 - M1/48-D Lt Mulch Plate | Call For Details | |
| 73 | 644058 - 3452/61/72 Mulch End Cap | Add To Cart | |
| 74 | 729686 - Discharge Deflect Shroud | Call For Details | |
| 75 | 253177 - Truss Whiz Bolt | Add To Cart |
