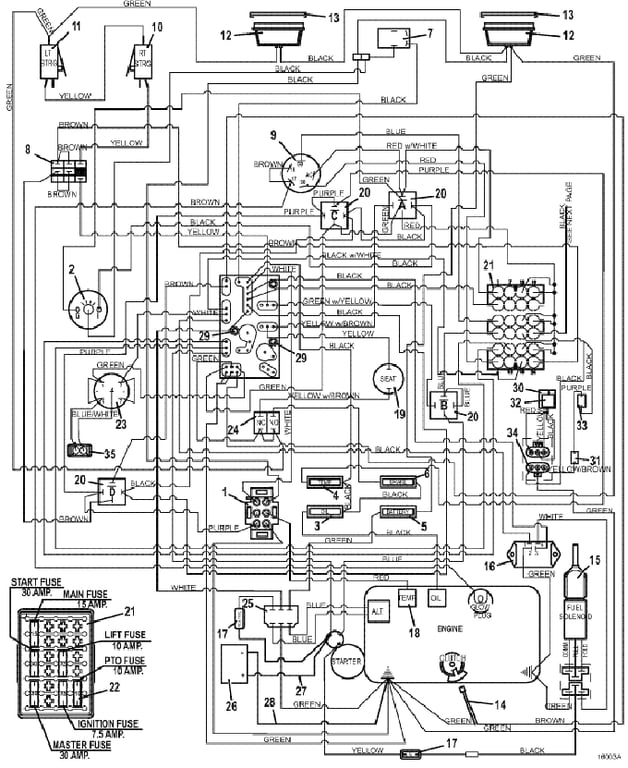

321D Electrical Wiring - 2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 141165 - Electric Zoned Temperature Gauge | Add To Cart | |
| 2 | 141203 - Voltmeter Gauge | Add To Cart | |
| 3 | 182327 - Oil Indicator Light | Add To Cart | |
| 4 | 182328 - Temperature Indicator Light | Add To Cart | |
| 5 | 182325 - Battery Indicator Light | Add To Cart | |
| 6 | 182326 - Brake Indicator Light | Add To Cart | |
| 7 | 184179 - Light Switch | Add To Cart | |
| 8 | 183925 - Push / Pull Switch | Add To Cart | |
| 9 | 183827 - Kubota Sealed Key Switch | Add To Cart | |
| - | 101106 - Kubota Double Notch Ignition Key | Add To Cart | |
| 10 | 183860 - Lever Switch | Add To Cart | |
| - | 720160 - Right Steering Switch Mount | Add To Cart | |
| 11 | 183860 - Lever Switch | Add To Cart | |
| - | 720161 - Left Steering Switch Mount | Add To Cart | |
| 12 | 182261 - LED Worklamp (Flood) | Add To Cart | |
| 13 | 182251 - Snap-Mount Bezel for Worklamp | Add To Cart | |
| 14 | 604431 - Modified Pigtail Clutch | Add To Cart | |
| 15 | 603350 - Fuel Solenoid Assembly | Add To Cart | |
| 16 | 184220 - Switch Interlock Module | Add To Cart | |
| 17 | 181735 - Inline Auto Fuse Holder | Add To Cart | |
| - | 181470 - Auto ATC 30 Amp Fuse | Add To Cart | |
| 18 | 141224 - Temperature Sender | Add To Cart | |
| 19 | 183871 - Seat Safety Switch | Add To Cart | |
| 20 | 184266 - Relay w/Diode - 12 volt DC | Add To Cart | |
| 21 | 181725 - Fuse Block | Add To Cart | |
| - | 162340 - M1 2017 Kubota Fuse ID Decal | Call For Details | |
| - | 181726 - Fuse Block Cover | Add To Cart | |
| - | 184985 - Cable Seal | Call For Details | |
| - | 184986 - Cavity Plug | Call For Details | |
| - | 270821 - Hex Bolt | Add To Cart | |
| 22 | 181456 - 30 Amp Fuse | Add To Cart | |
| - | 181451 - 7.5 Amp Fuse | Add To Cart | |
| - | 181452 - 10 Amp Fuse | Add To Cart | |
| - | 181453 - 15 Amp Fuse | Add To Cart | |
| 23 | 141122 - Fuel Lever Gauge - Console Mount | Add To Cart | |
| 24 | 183894 - Brake Interlock Switch | Add To Cart | |
| 25 | 185530 - Voltage Regulator - 12 volt | Add To Cart | |
| 26 | 180130 - 12 volt Side Post Wet Battery | Call For Details | |
| - | 180131 - 12 volt Side Post Dry Battery | Call For Details | |
| - | 243309 - Hex Bolt | Add To Cart | |
| - | 603104 - Battery Box Assembly with Strap | Add To Cart | |
| - | 604785 - Battery Hold Down Strap | Add To Cart | |
| 27 | 180340 - Red 42' Battery Cable | Add To Cart | |
| - | 425219 - Starter Terminal Boot | Add To Cart | |
| - | 425223 - Battery Terminal Boot | Add To Cart | |
| 28 | 180295 - Black 39' Battery Cable | Add To Cart | |
| 29 | 423690 - PC Board Support Spacer | Add To Cart | |
| 30 | 722747 - Mount Tilt Switch | Call For Details | |
| 31 | 144950 - Hydraulic Solenoid Valve | Add To Cart | |
| 32 | 183710 - Power Components Tilt Switch | Add To Cart | |
| 33 | 183940 - Sealed Dome Switch | Add To Cart | |
| 34 | 184973 - 3Way Male WP Connector | Call For Details | |
| 35 | 184907 - 2 Terminal Connector | Add To Cart | |
| - | 141235 - Fuel Sender | Add To Cart | |
| 36 | 605918 - 321D Wiring Assembly | Call For Details |
