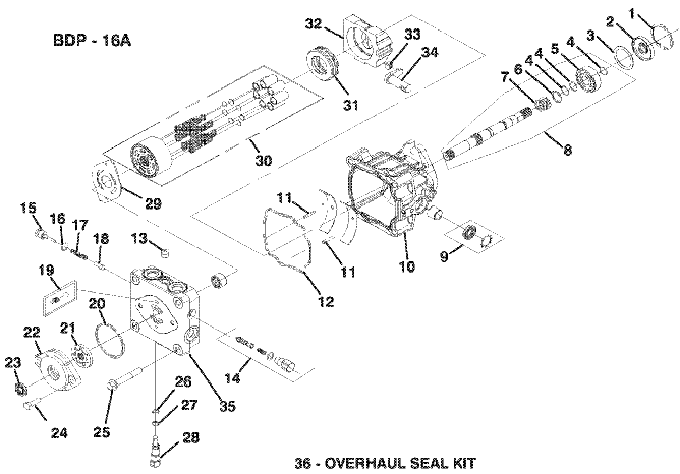

321D Pump Assembly - 2015
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 130088 - Seal Retaining Ring | Add To Cart | |
| 2 | 125363 - Input Seal | Add To Cart | |
| 3 | 130086 - Spacer | Add To Cart | |
| 4 | 130170 - Wire Retaining Ring | Add To Cart | |
| 5 | 130080 - Input Bearing | Add To Cart | |
| 6 | 130220 - Block Thrust Washer | Add To Cart | |
| 7 | 130015 - Block Spring | Add To Cart | |
| 8 | 130178 - Sub Shaft Assembly | Call For Details | |
| 9 | 125357 - Trunnion Seal Kit | Add To Cart | |
| 10 | 130054 - 16A Housing Kit | Call For Details | |
| 11 | 130046 - Dowel Pin | Add To Cart | |
| 12 | 130184 - Molded Seal Ring | Add To Cart | |
| 13 | 103739 - O-Ring Boss Plug | Add To Cart | |
| 14 | 130160 - Shock Valve Kit | Add To Cart | |
| 15 | 130030 - Check Plug | Add To Cart | |
| 16 | 130031 - O-Ring Check Plug | Add To Cart | |
| 17 | 130157 - Poppet Spring | Add To Cart | |
| 18 | 130155 - Poppet | Add To Cart | |
| 19 | 130027 - Ball & Spring Assembly | Add To Cart | |
| 20 | 130020 - Seal Ring | Add To Cart | |
| 21 | 130060 - Gerotor Set | Add To Cart | |
| 22 | 130022 - Charge Pump Cover | Add To Cart | |
| 23 | 125165 - Seal | Add To Cart | |
| 24 | 270078 - M8 Socket Head Screw | Add To Cart | |
| 25 | 271080 - Flanged Hex Head Screw | Call For Details | |
| 26 | 130018 - Bypass Valve O-Ring | Add To Cart | |
| 27 | 130017 - Bypass Valve Backup Ring | Add To Cart | |
| 28 | 000000 - NOT AVAILABLE | Call For Details | |
| 29 | 130214 - Valve Plate | Add To Cart | |
| 30 | 130152 - Block Kit | Add To Cart | |
| 31 | 130008 - Thrust Bearing | Add To Cart | |
| 32 | 000000 - NOT AVAILABLE | Call For Details | |
| 33 | 130065 - Guide Block | Add To Cart | |
| 34 | 130035 - Control Shaft | Call For Details | |
| 35 | 130044 - End Cap Kit | Call For Details | |
| - | 130048 - End Cap Kit w/out Plate | Call For Details | |
| 36 | 130186 - Seal Kit | Add To Cart |
