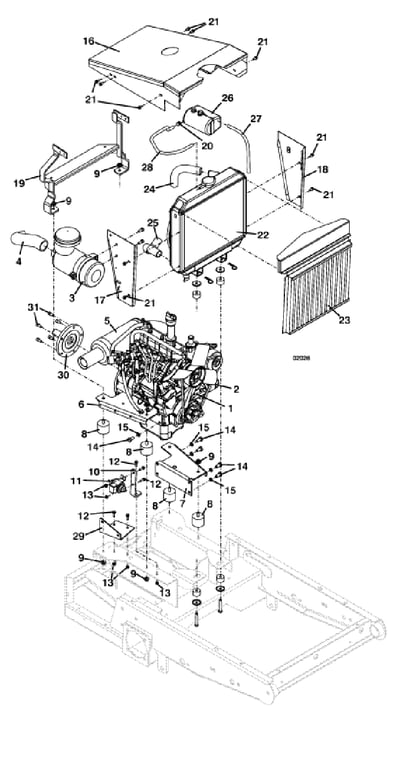

325 Engine Assembly - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 100171 - Kubota Gas Engine | Call For Details | |
| 2 | 100800 - Kubota Oil Filter | Add To Cart | |
| 3 | 100940 - Kubota Air Filter | Call For Details | |
| 4 | 424519 - Intake Air Hose | Add To Cart | |
| 5 | 603590 - Muffler & Gasket Assembly | Add To Cart | |
| - | 101040 - Kubota Flange Exhaust Gasket | Add To Cart | |
| 6 | 643322 - right Wide Engine Mount | Add To Cart | |
| 7 | 643323 - left Wide Engine Mount | Add To Cart | |
| 8 | 424078 - Vibration Isolator | Add To Cart | |
| 9 | 253043 - Whiz Nut .375-16 | Add To Cart | |
| 10 | 732883 - Fuel Pump Mount | Call For Details | |
| 11 | 101510 - Electric Fuel Pump | Call For Details | |
| 12 | 253175 - Hex Whiz Bolt .25-20 x .75 | Add To Cart | |
| 13 | 253025 - Whiz Nut .250-20 | Add To Cart | |
| 14 | 271120 - Hex Bolt | Add To Cart | |
| 15 | 275580 - Lock Washer | Add To Cart | |
| 16 | 693300 - 700 Hood with Decals | Add To Cart | |
| 17 | 643799 - right Grille Support | Call For Details | |
| 18 | 643800 - left Grille Support | Call For Details | |
| 19 | 644762 - 300S Rear Hood Support | Call For Details | |
| 20 | 280260 - Spring Hose Clamp | Add To Cart | |
| 21 | 253173 - Hex Whiz Bolt .25-20 x .500 | Add To Cart | |
| 22 | 101610 - Kubota Radiator | Add To Cart | |
| 23 | 644663 - Radiator with Guard | Add To Cart | |
| 24 | 101054 - Upper Radiator Hose | Call For Details | |
| 25 | 101055 - Lower Radiator Hose | Call For Details | |
| 26 | 422012 - Expansion Tank | Add To Cart | |
| 27 | 821748 - Clear Vent Hose | Add To Cart | |
| 28 | 821749 - Hose | Add To Cart | |
| 29 | 754097 - 325 Coil Mount | Call For Details | |
| 30 | 824637 - Clutch Stub Shaft | Add To Cart | |
| 31 | 270075 - M8 Socket Head Screw | Add To Cart |
