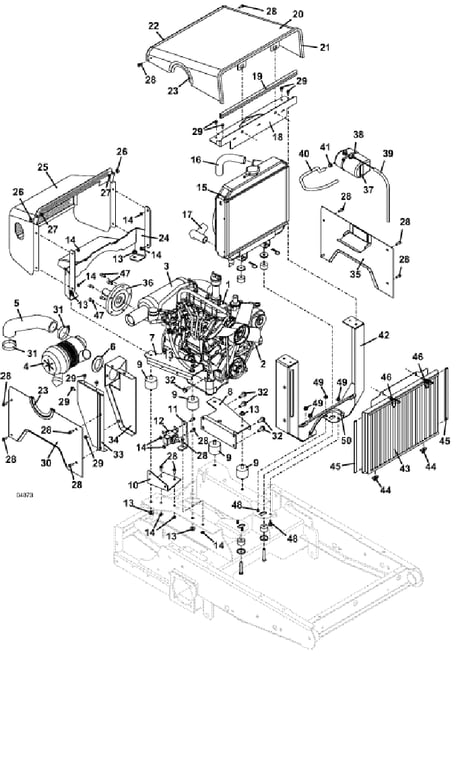

325 Engine Assembly - 2005
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 100171 - Kubota Gas Engine | Call For Details | |
| 2 | 100800 - Kubota Oil Filter | Add To Cart | |
| 3 | 603590 - Muffler and Gasket Assembly | Add To Cart | |
| - | 101040 - Kubota Exhaust Flange Gasket | Add To Cart | |
| 4 | 100208 - Air Cleaner | Add To Cart | |
| - | 100197 - Air Cleaner Cover Clip | Add To Cart | |
| - | 100198 - Air Cleaner Cover | Call For Details | |
| - | 100202 - Dust Ejector | Call For Details | |
| - | 100218 - 4' Air Cleaner Weather Hood | Call For Details | |
| - | 100942 - Short Primary Air Filter | Call For Details | |
| - | 100943 - Short Inner Air filter | Call For Details | |
| 5 | 424519 - Intake Air Hose | Add To Cart | |
| 6 | 424297 - Grommet | Add To Cart | |
| 7 | 643322 - Right Wide Engine Mount | Add To Cart | |
| 8 | 643323 - left Wide Engine Mount | Add To Cart | |
| 9 | 424078 - Vibration Isolator | Add To Cart | |
| 10 | 754097 - 325 Coil Mount | Call For Details | |
| 11 | 732883 - Fuel Pump Mount | Call For Details | |
| 12 | 101510 - Electric Fuel Pump | Call For Details | |
| 13 | 253043 - Whiz Nut | Add To Cart | |
| 14 | 253025 - Whiz Nut .250-20 | Add To Cart | |
| 15 | 101610 - Kubota Radiator | Add To Cart | |
| 16 | 101054 - Upper Radiator Hose | Call For Details | |
| 17 | 101055 - Lower Radiator Hose | Call For Details | |
| 18 | 644654 - Upper Radiator Mount | Call For Details | |
| 19 | 822512 - Upper Radiator Trim Seal | Add To Cart | |
| 20 | 644813 - Upper Hood | Call For Details | |
| 21 | 822639 - Front Hood Trim | Add To Cart | |
| 22 | 822634 - Rear Hood Trim | Call For Details | |
| 23 | 822503 - Air Cleaner Trim Seal | Call For Details | |
| 24 | 644814 - Hood Support | Call For Details | |
| 25 | 644338 - Rear Hood | Add To Cart | |
| 26 | 902297 - Spacer .25 Thick | Add To Cart | |
| 27 | 253440 - Nylon Insert Nut | Add To Cart | |
| 28 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 29 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 30 | 722762 - Right Hood Side | Call For Details | |
| 31 | 280303 - Screw Type Hose Clamp | Add To Cart | |
| 32 | 271121 - Hex Bolt | Add To Cart | |
| 33 | 644067 - Intake Box Mount | Call For Details | |
| 34 | 644071 - Intake Box Cover | Call For Details | |
| 35 | 644314 - Left hood Side | Call For Details | |
| 36 | 824637 - Clutch Stub Shaft | Add To Cart | |
| 37 | 422012 - Expansion Tank | Add To Cart | |
| 38 | 423154 - Tie | Add To Cart | |
| 39 | 821748 - Clear Vent Hose | Add To Cart | |
| 40 | 821749 - Hose | Add To Cart | |
| 41 | 280260 - Hose Spring Clamp | Add To Cart | |
| 42 | 644657 - Lower Radiator Mount | Call For Details | |
| 43 | 644666 - Grille With Guard | Call For Details | |
| 44 | 422090 - Rear Belt Shield Isolator | Add To Cart | |
| 45 | 822636 - Ridiator Grille Trim | Add To Cart | |
| 46 | 281305 - Swell Action Latch | Add To Cart | |
| 47 | 270075 - M8 Socket Head Screw | Add To Cart | |
| 48 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 49 | 253035 - Whiz Nut | Add To Cart | |
| 50 | 822509 - 90 Degree Bulb Lower Seal | Call For Details |
