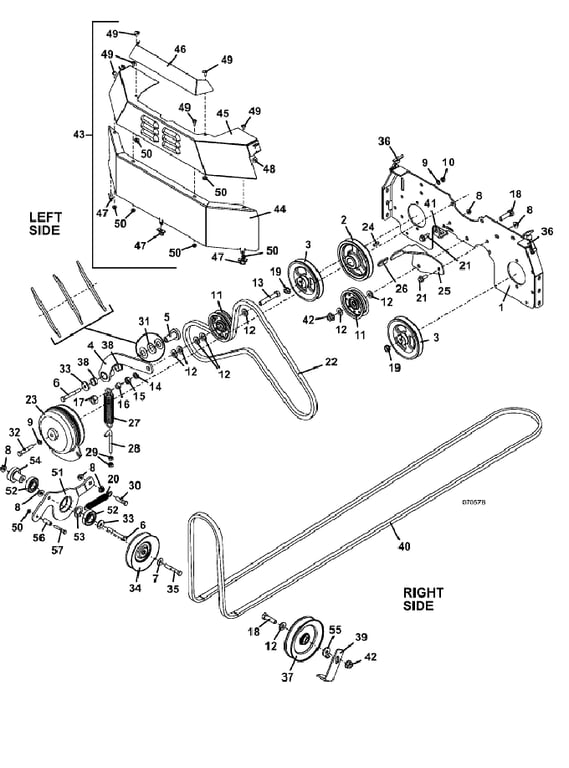

325D Drive Assembly - 2010
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644619 - Pump Plate | Call for Details | |
| 2 | 415884 - Sheave | $67.91 | Add To Cart |
| 3 | 415898 - Sheave | $72.62 | Add To Cart |
| 4 | 824572 - Idler Arm - 300/400 Pumps | $59.28 | Add To Cart |
| 5 | 121651 - Pedestal Bearing | $8.21 | Add To Cart |
| 6 | 243365 - Hex Bolt | $1.83 | Add To Cart |
| 7 | 257040 - Washer | $2.60 | Add To Cart |
| 8 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 9 | 257412 - Lock Washer | $0.26 | Add To Cart |
| 10 | 253890 - Lock Nut | $0.62 | Add To Cart |
| 11 | 393195 - Idler Pulley | $27.56 | Add To Cart |
| 12 | 257062 - Washer | $0.38 | Add To Cart |
| 13 | 243601 - Hex Bolt | $3.96 | Add To Cart |
| 14 | 257432 - Lock Washer | $0.38 | Add To Cart |
| 15 | 254470 - Nut | $0.62 | Add To Cart |
| 16 | 422558 - Nylon Bearing | $1.36 | Add To Cart |
| 17 | 253930 - Lock Nut | $1.10 | Add To Cart |
| 18 | 243575 - Hex Bolt | $1.90 | Add To Cart |
| 19 | 253061 - Whiz Nut | $0.65 | Add To Cart |
| 20 | 283820 - Extension Spring with Swivel | $4.62 | Add To Cart |
| 21 | 253203 - Flange Whiz Bolt | $15.35 | Add To Cart |
| 22 | 382035 - Belt | $46.21 | Add To Cart |
| 23 | 388740 - Clutch Assembly | $394.16 | Add To Cart |
| 24 | 281582 - Square Key | $1.99 | Add To Cart |
| 25 | 755046 - Anti Rotation Bracket | $25.02 | Add To Cart |
| 26 | 422088 - Clutch Bracket Cover | $1.68 | Add To Cart |
| 27 | 283848 - Extension Spring | $9.58 | Add To Cart |
| 28 | 730391 - Idler Adjustment J Bolt | $3.28 | Add To Cart |
| 29 | 254450 - Nut | $0.38 | Add To Cart |
| 30 | 243340 - Hex Bolt | $1.16 | Add To Cart |
| 31 | 257319 - Spring Washer | $3.71 | Add To Cart |
| 32 | 243349 - Hex Bolt | $1.99 | Add To Cart |
| 33 | 774020 - Washer | $2.16 | Add To Cart |
| 34 | 393376 - Idler | $36.27 | Add To Cart |
| 35 | 243355 - Hex Bolt | $1.95 | Add To Cart |
| 36 | 281301 - Rubber Draw Latch | $15.73 | Add To Cart |
| 37 | 393390 - Idler | $35.29 | Add To Cart |
| 38 | 121756 - Oilite Bearing | $0.95 | Add To Cart |
| 39 | 755155 - M1 Fixed Idler Guide Belt | $11.93 | Add To Cart |
| 40 | 382111 - Belt for 52 Inch & 61 Inch Decks | $101.03 | Add To Cart |
| - | 382117 - Belt for 72' Decks | $121.79 | Add To Cart |
| 41 | 732520 - M1 Idler Spring Bracket | $9.50 | Add To Cart |
| 42 | 253066 - Whiz Nut | $1.03 | Add To Cart |
| 43 | 604734 - Rear Shield Assembly | $207.69 | Add To Cart |
| 44 | 722729 - Lower Rear Panel 322D | $76.70 | Add To Cart |
| 45 | 644723 - Upper Rear Shield 322D/400 | $87.57 | Add To Cart |
| 46 | 722934 - Clutch Cover - 2010.5 | $23.65 | Add To Cart |
| 47 | 422090 - Rear Belt Shield Isolator | $1.30 | Add To Cart |
| 48 | 424015 - Rubber Bumper | $2.10 | Add To Cart |
| 49 | 253176 - Truss Whiz Bolt | $0.67 | Add To Cart |
| 50 | 253025 - Whiz Nut | $0.36 | Add To Cart |
| 51 | 824476 - HD Mule Drive Idler Arm Assembly | $163.59 | Add To Cart |
| 52 | 110080 - 25MM 2Metal Seal Ball Bearing | $13.15 | Add To Cart |
| 53 | 257104 - Washer | $1.16 | Add To Cart |
| 54 | 885015 - Heavy Duty Bearing Pedestal | $24.11 | Add To Cart |
| 55 | 754003 - Fixed Idler Tabbed Spacer | $8.97 | Add To Cart |
| 56 | 784057 - Guide Tube | $9.50 | Add To Cart |
| 57 | 243038 - Hex Bolt | $0.60 | Add To Cart |
