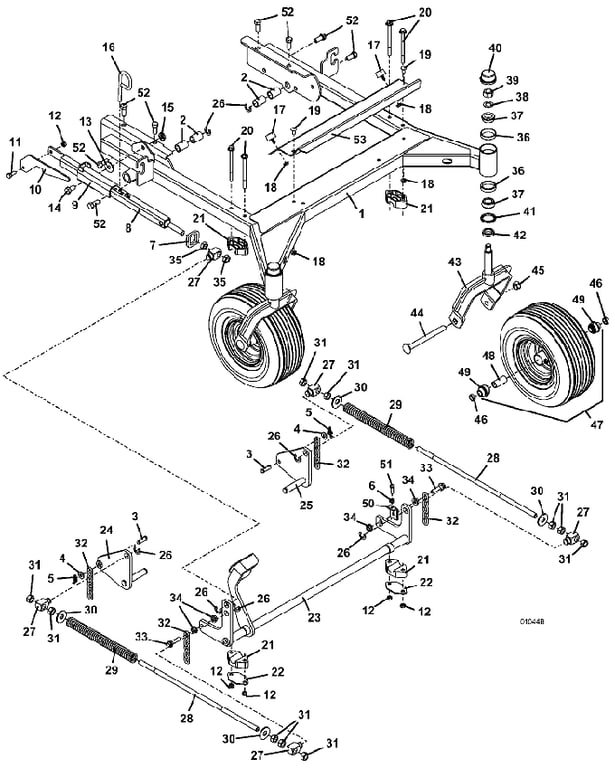

327A Deck Carrier Assembly - M152 / M161 - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644138 - M161 Carrier (without footrest) | Call For Details | |
| - | 162187 - Cutting Height Decal | Add To Cart | |
| - | 644136 - M152 Carrier (without footrest) | Call For Details | |
| 2 | 121766 - Oilite Bearing .750 x 1 x 1.5 | Add To Cart | |
| 3 | 261405 - Clevis Pin | Add To Cart | |
| 4 | 257051 - Washer | Add To Cart | |
| 5 | 260612 - Cotter Ring | Add To Cart | |
| 6 | 253035 - Whiz Nut | Add To Cart | |
| 7 | 423696 - Height Adjustment Spacer M1 | Add To Cart | |
| 8 | 644778 - Height Adjustment Tube M1 | Add To Cart | |
| 9 | 644305 - Latch Tube Guide | Add To Cart | |
| 10 | 775104 - Deck Latch | Add To Cart | |
| 11 | 243330 - Hex Bolt .375-16 x 1 | Add To Cart | |
| 12 | 253890 - Lock Nut .375-16 | Add To Cart | |
| 13 | 821516 - Nylon Washer | Add To Cart | |
| 14 | 243560 - Hex Bolt .500-13 x 1 | Add To Cart | |
| 15 | 253470 - Nylon Nut Insert | Add To Cart | |
| 16 | 730434 - Height Adjustment Deck Pin | Add To Cart | |
| 17 | 424052 - Rubber Bumper | Add To Cart | |
| 18 | 253043 - Whiz Nut .375-16 | Add To Cart | |
| 19 | 247130 - Carriage Bolt | Add To Cart | |
| 20 | 253215 - Flange Bolt .375-16 x 5 | Add To Cart | |
| 21 | 423643 - Bearing Block - M1 | Add To Cart | |
| 22 | 774064 - Lift Bearing Plate | Add To Cart | |
| 23 | 644524 - Lift Lever - M1 Deck | Add To Cart | |
| 24 | 644707 - right Rear Deck Rocker - M1 | Add To Cart | |
| 25 | 644708 - left Rear Deck Rocker - M1 | Add To Cart | |
| 26 | 263529 - External Retainer | Add To Cart | |
| 27 | 882035 - Spring Rod Shaft Mount | Add To Cart | |
| 28 | 780661 - Spring Shaft | Add To Cart | |
| 29 | 283395 - Compression Spring | Add To Cart | |
| - | 283392 - Compression Spring | Call For Details | |
| 30 | 257080 - Washer | Add To Cart | |
| 31 | 254490 - Nut .625-11 | Add To Cart | |
| 32 | 820331 - Chain - 5 Links M1 | Add To Cart | |
| 33 | 243458 - Hex Bolt .437-.14 x 1.75 GR 8 | Add To Cart | |
| 34 | 253058 - Whiz Nut .437-14 | Add To Cart | |
| 35 | 254493 - Nut .625-18 | Add To Cart | |
| 36 | 123522 - Bearing Cup | Add To Cart | |
| 37 | 122522 - Taper Bearing 1.000 ID | Add To Cart | |
| 38 | 257091 - Washer | Add To Cart | |
| 39 | 253992 - Lock Nut .750-16 | Add To Cart | |
| 40 | 481434 - Dust Cap | Add To Cart | |
| 41 | 125855 - Seal | Add To Cart | |
| 42 | 282615 - Spacer | Add To Cart | |
| 43 | 604365 - Fork & Lock Nut Assembly | Add To Cart | |
| 44 | 247725 - Carriage Bolt .625 x 7 | Add To Cart | |
| 45 | 253970 - Lock Nut .625-11 | Add To Cart | |
| 46 | 902422 - Axle Spacer | Add To Cart | |
| 47 | 603975 - Wheel Assembly with Bearings | Add To Cart | |
| - | 482355 - Ribbed Tire 13 x 6.50 x 6 | Add To Cart | |
| - | 483306 - Wheel without Tire 6 x 4.5 | Add To Cart | |
| 48 | 902429 - Rear Axle Center Spacer | Add To Cart | |
| 49 | 120048 - Wheel Ball Bearing - .625 DP | Add To Cart | |
| 50 | 732586 - Adjusting Strap | Add To Cart | |
| 51 | 243205 - Hex Head Bolt | Add To Cart | |
| 52 | 243565 - Hex Bolt | Add To Cart | |
| - | 253067 - Spiral Lock Flange Nut | Add To Cart | |
| 53 | 774155 - Foot Rest Extension | Call For Details |
