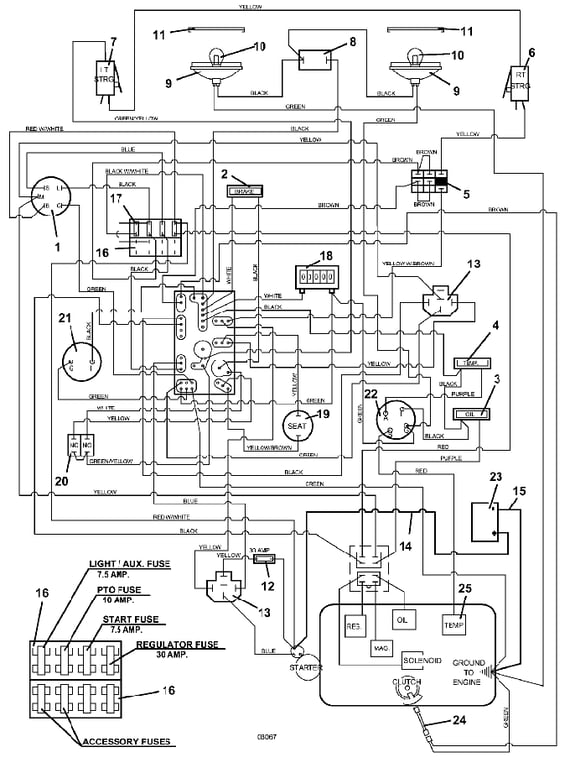

327A Electrical Wiring, Lights, & Switches - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 183806 - Briggs & Stratton / Kohler Ignition Switch with Key | Add To Cart | |
| - | 101101 - Key Ignition With Cover | Add To Cart | |
| - | 254498 - Nut .625-32 | Add To Cart | |
| - | 422078 - Plastic Panel | Add To Cart | |
| 2 | 182326 - Brake Light Indicator | Add To Cart | |
| 3 | 182327 - Oil Light Indicator | Add To Cart | |
| 4 | 182328 - Temperature Light Indicator | Add To Cart | |
| 5 | 183925 - Push/Pull Switch | Add To Cart | |
| 6 | 183860 - Lever Switch | Add To Cart | |
| - | 720160 - right Steering Switch Mount | Add To Cart | |
| 7 | 183860 - Lever Switch | Add To Cart | |
| - | 720161 - left Steering Switch Mount | Add To Cart | |
| 8 | 184179 - Rocker Switch | Add To Cart | |
| 9 | 182253 - Worklamp - Flood (includes bulb) | Add To Cart | |
| 10 | 182005 - Bulb for Worklamp | Add To Cart | |
| 11 | 182251 - Snap Mount Bezel for Worklamp | Add To Cart | |
| 12 | 181735 - Inline Auto Fuse Holder | Add To Cart | |
| - | 181470 - Auto ATC - 30 Fuse | Add To Cart | |
| 13 | 184271 - 12 volt DC Relay with Mount | Add To Cart | |
| - | 184570 - Type 1 6MM Pushon | Add To Cart | |
| - | 184581 - .250 Faston Terminal | Add To Cart | |
| - | 184926 - 5-Way Female Connector | Add To Cart | |
| 14 | 180340 - 42' Red Battery Cable | Add To Cart | |
| - | 425219 - Starter Terminal Boot | Add To Cart | |
| 15 | 180295 - 39' Black Battery Cable | Add To Cart | |
| 16 | 181722 - Fuse Block | Add To Cart | |
| - | 184458 - 1 Wire Fuse Clip | Add To Cart | |
| - | 184460 - 2 Wire Fuse Clip | Add To Cart | |
| - | 184472 - Double Clip Fuse Clip | Add To Cart | |
| 17 | 181470 - Auto ATC - 30 Fuse | Add To Cart | |
| - | 181460 - Auto ATC - 7.50 Fuse | Add To Cart | |
| - | 181462 - Auto ATC - 10 Fuse | Add To Cart | |
| 18 | 141551 - Snap-In Hour Meter | Add To Cart | |
| 19 | 183870 - Seat Switch | Add To Cart | |
| 20 | 183894 - Brake Interlock Switch | Add To Cart | |
| 21 | 141200 - Voltmeter Guage | Add To Cart | |
| 22 | 141160 - Zoned Electric Temperature Guage | Add To Cart | |
| 23 | 180125 - 12V DC Battery (Wet) | Add To Cart | |
| - | 180126 - 12V DC Battery (Dry) | Add To Cart | |
| - | 243309 - Hex Bolt | Add To Cart | |
| - | 604785 - Battery Hold Down Strap | Add To Cart | |
| - | 644090 - Battery Box for 220/225/227 | Add To Cart | |
| 24 | 388840 - Pigtail Cable Assembly | Add To Cart | |
| 25 | 141218 - Temperature Sender | Add To Cart | |
| 26 | 604982 - Wiring Assembly 325A | Call For Details | |
| 27 | 161144 - 325A Console Decal | Call For Details |
