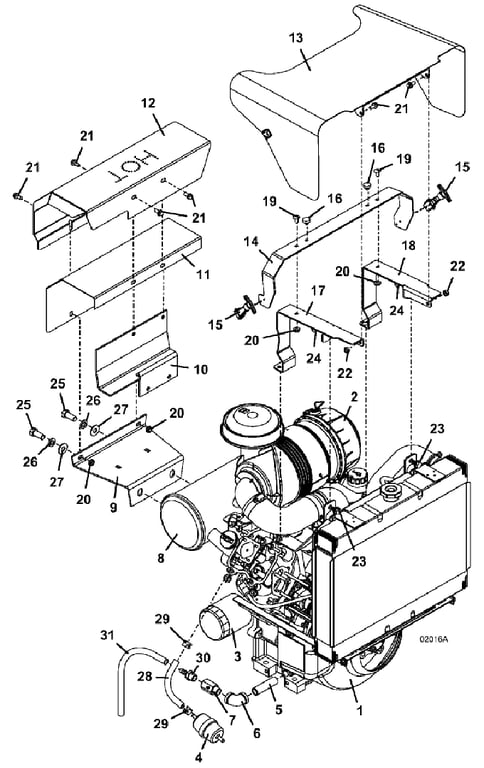

327A Engine Assembly - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 100186 - 27HP Kohler Engine | Call For Details | |
| 2 | 100936 - Outer Air Filter Heavy Duty | Add To Cart | |
| - | 100937 - Inner Air Filter Heavy Duty | Call For Details | |
| 3 | 100802 - Kohler Oil Filter | Add To Cart | |
| 4 | 101001 - Kohler Fuel Filter | Call For Details | |
| 5 | 364518 - Nipple | Add To Cart | |
| 6 | 362215 - Ell | Add To Cart | |
| 7 | 143610 - Oil Drain Valve | Add To Cart | |
| 8 | 101217 - Kohler Muffler | Call For Details | |
| - | 101041 - Kohler Exhaust Gasket | Add To Cart | |
| 9 | 729312 - 225 Lower Muffler Bracket | Call For Details | |
| 10 | 643117 - Shield Mount Bracket | Add To Cart | |
| 11 | 722309 - Inner Panel Shield | Add To Cart | |
| 12 | 722391 - Muffler Shield | Add To Cart | |
| 13 | 644324 - Hood WC W/A | Call For Details | |
| 14 | 754165 - Hood Hold Down Mount | Call For Details | |
| 15 | 281301 - Rubber Draw Latch | Add To Cart | |
| 16 | 424015 - Rubber Bumper | Add To Cart | |
| 17 | 754140 - Right Hood Mount Bracket | Add To Cart | |
| 18 | 754141 - Left Hood Mount Bracket | Add To Cart | |
| 19 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 20 | 253025 - Whiz Nut | Add To Cart | |
| 21 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 22 | 253440 - Nylon Insert Nut | Add To Cart | |
| 23 | 253189 - Whiz Bolt | Add To Cart | |
| 24 | 253035 - Whiz Nut | Add To Cart | |
| 25 | 243445 - Hex Bolt | Add To Cart | |
| 26 | 257422 - Lock Washer | Add To Cart | |
| 27 | 257040 - Washer | Add To Cart | |
| 28 | 821710 - Fuel Hose | Add To Cart | |
| 29 | 280260 - Spring Hose Clamp | Add To Cart | |
| 30 | 363854 - Nylon Fitting | Add To Cart | |
| 31 | 821752 - Oil Drain Tube | Add To Cart |
