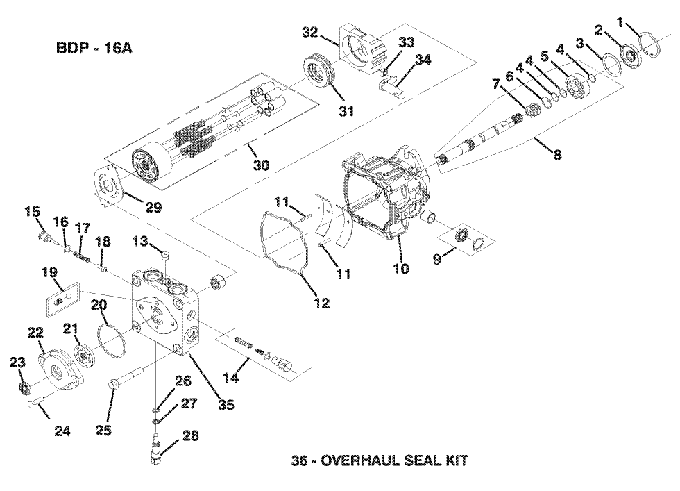

327A Pump Assembly - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 130088 - Input Seal Retaining Ring | Add To Cart | |
| 2 | 130163 - Input Seal | Call For Details | |
| 3 | 130086 - Input Seal Spacer | Add To Cart | |
| 4 | 130170 - Input Bearing | Add To Cart | |
| 5 | 130080 - Input Bearing | Add To Cart | |
| 6 | 130220 - Block Thrust Washer | Add To Cart | |
| 7 | 130015 - Block Spring | Add To Cart | |
| 8 | 130178 - Shaft Kit | Call For Details | |
| 9 | 125357 - Trunnion Seal Kit | Add To Cart | |
| 10 | 130054 - housing Kit | Call For Details | |
| 11 | 130046 - Locating Pin | Add To Cart | |
| 12 | 130184 - Molded Seal Ring | Add To Cart | |
| 13 | 103739 - O-Ring Boss Plug | Add To Cart | |
| 14 | 130160 - Shock Valve Kit | Add To Cart | |
| 15 | 130030 - Check Plug | Add To Cart | |
| 16 | 130031 - Check Plug O-Ring | Add To Cart | |
| 17 | 130157 - Poppet Spring | Add To Cart | |
| 18 | 130155 - Poppet | Add To Cart | |
| 19 | 130027 - Charge Relief Kit | Add To Cart | |
| 20 | 130020 - Charge Cover Seal Ring | Add To Cart | |
| 21 | 130060 - Gerotor Set | Add To Cart | |
| 22 | 130022 - Charge Cover | Add To Cart | |
| 23 | 125165 - Fan Shaft Seal | Add To Cart | |
| 24 | 270078 - Socket Head Cap Screw | Add To Cart | |
| 25 | 271080 - Flanged Head Hex Screw | Call For Details | |
| 26 | 130018 - Bypass Valve O-Ring | Add To Cart | |
| 27 | 130017 - Back Up Ring | Add To Cart | |
| 28 | Bypass Valve - NOT AVAILABLE | Unavailable | |
| 29 | 130214 - Valve Plate (Omitted from Serial Number 6100000 and Above/Pump Serial Number 0216P00000 and Above) | Add To Cart | |
| 30 | 130152 - Block Kit | Add To Cart | |
| 31 | 130008 - Thrust Bearing | Add To Cart | |
| 32 | Swashplate - NOT AVAILABLE | Unavailable | |
| 33 | 130065 - Guide Block | Add To Cart | |
| 34 | 130035 - Trunnion Arm | Call For Details | |
| 35 | 130044 - End Cap | Call For Details | |
| - | 130048 - End Cap(Omitted from Serial Number 6100000 and Above/Pump Serial Number 0216P00000 and Above) | Call For Details | |
| 36 | 130186 - Seal Kit | Add To Cart |
