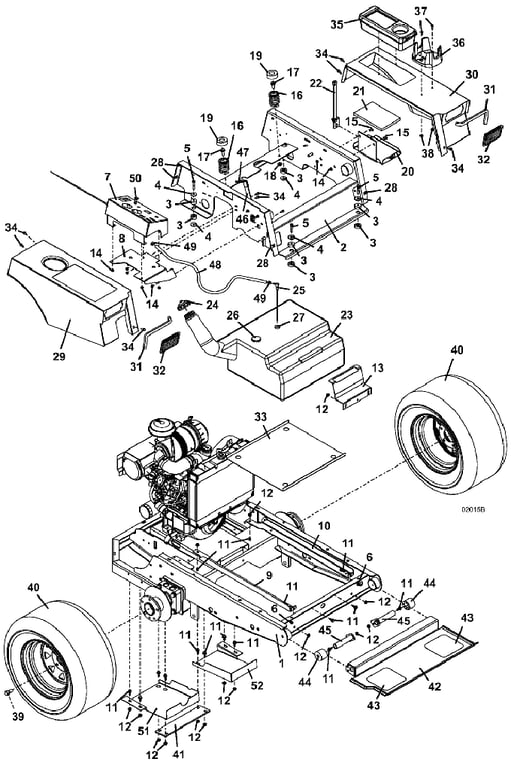

327A Tractor Assembly - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644281 - 325A/327KW Lower Frame | Call For Details | |
| 2 | 644248 - M1 300/400 Upper Frame | Call For Details | |
| 3 | 257037 - Step Bushing | Add To Cart | |
| 4 | 774020 - Washer | Add To Cart | |
| 5 | 243220 - Hex Bolt .312-18 x 1.750 | Add To Cart | |
| 6 | 253450 - Nylon Insert Nut | Add To Cart | |
| 7 | 644164 - M1 W/A Console | Call For Details | |
| 8 | 644141 - 300/400 Console Mount | Call For Details | |
| 9 | 754068 - 300S Right Tank Rail | Call For Details | |
| 10 | 754069 - 300S Left Tank Rail | Call For Details | |
| 11 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 12 | 253035 - Whiz Nut | Add To Cart | |
| 13 | 723091 - 300/400 Front Tank Bracket | Call For Details | |
| 14 | 253025 - Whiz Nut | Add To Cart | |
| 15 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 16 | 283516 - Compression Spring | Add To Cart | |
| 17 | 253203 - Whiz Bolt | Add To Cart | |
| 18 | 253043 - Whiz Nut .375-16 | Add To Cart | |
| 19 | 422127 - Seat Spring Cap | Add To Cart | |
| 20 | 644090 - Battery Box 220/225/227 | Add To Cart | |
| 21 | 427272 - Battery Tray Pad | Call For Details | |
| 22 | 604785 - Battery Hold Down Strap | Add To Cart | |
| 23 | 604800 - M1 Gas Tank Assembly | Add To Cart | |
| 24 | 100210 - Fuel Tank Cap | Add To Cart | |
| 25 | 101814 - Fuel Draw Tube | Add To Cart | |
| 26 | 141140 - In-Tank Fuel Gauge | Add To Cart | |
| - | 424275 - Grommet - Fuel Gauge Mount | Add To Cart | |
| 27 | 101875 - Fuel Tube Bushing (Grommet) | Add To Cart | |
| 28 | 254431 - Speed Nut | Add To Cart | |
| 29 | 644265 - M1 Right Fender | Add To Cart | |
| - | 163278 - Right Trim 327A Decal | Call For Details | |
| 30 | 644266 - M1 Left Fender | Add To Cart | |
| - | 163279 - 327A Left Trim Decal | Call For Details | |
| 31 | 822635 - 700/900 Fender Edge Trim | Add To Cart | |
| 32 | 422079 - Plug for Work Lamp Hole | Add To Cart | |
| 33 | 722495 - M1 Tank Shield | Call For Details | |
| 34 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 35 | 422040 - Tool Box | Add To Cart | |
| 36 | 150225 - Cup Holder | Add To Cart | |
| 37 | 259030 - Screw Cap | Add To Cart | |
| 38 | 254436 - Nut | Add To Cart | |
| 39 | 248565 - Lug Bolt | Add To Cart | |
| 40 | 483965 - Wheel & Tire Assembly (Turf) 24 x 12 x 12 | Add To Cart | |
| - | 482485 - (Tire Only) Turf Tire 23 x 10.5 x 12 | Add To Cart | |
| - | 482486 - (Tire Only) Turf Tire 24 x 12 x 12 | Add To Cart | |
| - | 482487 - (Tire Only) AT101 Bar Tread 24 x 12 x 12 | Add To Cart | |
| - | 483440 - Wheel Only 12 x 8.5 x 4.25 (for 61 Inch & 72' Decks) | Add To Cart | |
| - | 483445 - Wheel Only 12 x 8.5 x 5.750 (for 52 Inch Decks) | Add To Cart | |
| - | 483960 - Wheel & Tire Assembly (Turf) 23 x 10.5 x 12 | Add To Cart | |
| - | 483968 - Right 12' Wheel & Tire Assembly (Bar) | Call For Details | |
| - | 483969 - Left 12' Wheel & Tire (Bar) | Call For Details | |
| 41 | 783277 - Belt Guard Strap | Add To Cart | |
| 42 | 644269 - LC M1 52/61 Footrest | Call For Details | |
| - | 644256 - M1 On-Frame Foot Rest | Call For Details | |
| 43 | 420905 - Foot Rest Tread | Add To Cart | |
| - | 420902 - Foot Rest Tread | Add To Cart | |
| 44 | 424095 - Seat Isolator | Add To Cart | |
| 45 | 644618 - Seat Hinge Pin | Add To Cart | |
| 46 | 603821 - Throttle Assembly | Add To Cart | |
| - | 323655 - Control Cable Assembly | Add To Cart | |
| - | 722009 - Throttle Stop Lever | Add To Cart | |
| 47 | 422150 - Handle Grip | Add To Cart | |
| 48 | 821738 - Fuel Hose | Add To Cart | |
| 49 | 280260 - Hose Spring Clamp | Add To Cart | |
| 50 | 142234 - Mechanical Choke | Add To Cart | |
| 51 | 723050 - 300S Right Hydro Debris Shield | Add To Cart | |
| 52 | 723051 - 300S Left Hydro Debris Shield | Call For Details | |
| 53 | 604196 - Decal Set - 327A Tractor | Call For Details |
