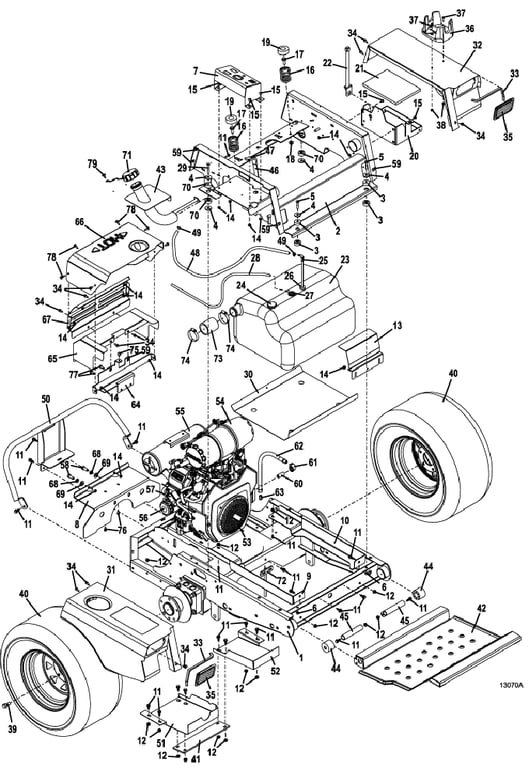

327EFI Tractor Assembly - 2015
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645210 - Frame - | Call For Details | |
| 2 | 644889 - Upper Frame | Call For Details | |
| 3 | 257037 - Step Bushing | Add To Cart | |
| 4 | 774020 - Washer | Add To Cart | |
| 5 | 243220 - Hex Bolt | Add To Cart | |
| 6 | 253450 - Nylon Insert Nut | Add To Cart | |
| 7 | 693118 - Console w/Decal | Call For Details | |
| 8 | 766312 - Muffler Bracket | Call For Details | |
| 9 | 645800 - Right Tank Rail | Call For Details | |
| 10 | 645801 - Left Tank Rail | Call For Details | |
| 11 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 12 | 253035 - Whiz Nut | Add To Cart | |
| 13 | 722948 - Gas Tank Anchor | Call For Details | |
| 14 | 253025 - Whiz Nut | Add To Cart | |
| 15 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 16 | 283516 - Compression Spring | Add To Cart | |
| 17 | 253203 - Whiz Flange Bolt | Add To Cart | |
| 18 | 253043 - Whiz Nut .375-16 | Add To Cart | |
| 19 | 422127 - Seat Spring Cap | Add To Cart | |
| 20 | 644108 - Battery Box with Strap | Add To Cart | |
| 21 | 427275 - Battery Tray Pad | Add To Cart | |
| 22 | 604785 - Battery Hold-down Strap | Add To Cart | |
| 23 | 605798 - M1/200V Tank Assembly | Call For Details | |
| 24 | 141142 - Intank Fuel Gauge | Add To Cart | |
| - | 424275 - Grommet - Fuel Gauge Mount | Add To Cart | |
| 25 | 363925 - Fuel Tube | Add To Cart | |
| 26 | 101875 - Fuel Tube Bushing (Grommet) | Add To Cart | |
| 27 | 100216 - Fuel Tank Valve - 2011 | Add To Cart | |
| 28 | 821764 - Fuel Vapor Hose | Call For Details | |
| 29 | 243225 - Hex Bolt | Add To Cart | |
| 30 | 722949 - M1 Fuel Tank Shield | Call For Details | |
| 31 | 693226 - Fender w/Decals 300B RT | Add To Cart | |
| 32 | 693227 - Fender w/Decals 300B LT | Add To Cart | |
| 33 | 822632 - Trim | Add To Cart | |
| 34 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 35 | 422079 - Work Lamp Hole Plug | Add To Cart | |
| 36 | 150225 - Cup Holder | Add To Cart | |
| 37 | 259030 - Cap Screw | Add To Cart | |
| 38 | 254436 - Nut | Add To Cart | |
| 39 | 248565 - Lug Bolt | Add To Cart | |
| 40 | 483965 - Wheel & Tire 24 x 12 x 12 | Add To Cart | |
| - | 482485 - Turf Tire 23 x 10.5 x 12 | Add To Cart | |
| - | 482486 - Turf Tire 24 x 12 x 12 | Add To Cart | |
| - | 482487 - Bar Tread Tire Only 24 x 12 x 12 | Add To Cart | |
| - | 483440 - Wheel Only 12 x 8.5 x 4.25 (for 61 Inch & 72' Decks) | Add To Cart | |
| - | 483445 - Wheel Only 12 x 8.5 x 5.750 (for 52 Inch Decks) | Add To Cart | |
| - | 483960 - Wheel & Tire 23 x 10.5 x 12 | Add To Cart | |
| - | 483968 - 12' Wheel & Bar Tread Tire (right) | Call For Details | |
| - | 483969 - 12' Wheel & Bar Tread Tire (left) | Call For Details | |
| 41 | 783277 - Belt Guard Strap | Add To Cart | |
| 42 | 644256 - M1 On Frame Footrest | Call For Details | |
| - | 644228 - M1 Frame Mount Footrest | Call For Details | |
| 43 | 644886 - Fuel Filler | Add To Cart | |
| 44 | 424095 - Seat Isolator | Add To Cart | |
| 45 | 644618 - Seat Hinge Pin | Add To Cart | |
| 46 | 604831 - Throttle Assembly | Call For Details | |
| - | 323650 - Throttle Control Cable | Add To Cart | |
| - | 722009 - Throttle Lever Stop | Add To Cart | |
| - | 722736 - Throttle Stop -Heavy Duty | Add To Cart | |
| 47 | 422150 - Handle Grip | Add To Cart | |
| 48 | 821770 - Fuel Hose | Call For Details | |
| 49 | 280260 - Spring Hose Clamp | Add To Cart | |
| 50 | 645572 - Bumper | Add To Cart | |
| 51 | 723050 - 300 right Hydro Debris Shield | Add To Cart | |
| 52 | 723051 - 300 left Hydro Debris Shield | Call For Details | |
| 53 | 100081 - 27HP Kohler EFI M1 Engine | Call For Details | |
| - | 900117 - Kohler Engine Shim | Add To Cart | |
| 54 | 100936 - Outer Air Filter HD | Add To Cart | |
| - | 100937 - Inner Air Filter HD | Call For Details | |
| 55 | 101215 - Kohler EFI Muffler | Add To Cart | |
| - | 101041 - Kohler EFI Exhaust Gasket | Add To Cart | |
| 56 | 100802 - Kohler Oil Filter | Add To Cart | |
| 57 | 101001 - Kohler Fuel Filter | Call For Details | |
| 58 | 243445 - Hex Bolt | Add To Cart | |
| 59 | 254431 - Speed Nut | Add To Cart | |
| 60 | 364508 - Nipple | Add To Cart | |
| 61 | 362215 - Ell | Add To Cart | |
| 62 | 424474 - Engine Oil Drain Hose Assembly | Add To Cart | |
| 63 | 365515 - Metal Pipe Plug | Add To Cart | |
| 64 | 605126 - Bracket Assembly | Add To Cart | |
| 65 | 645191 - Inner Panel W/A | Add To Cart | |
| 66 | 751300 - Hood Panel | Add To Cart | |
| 67 | 751125 - Grille Panel | Add To Cart | |
| 68 | 257422 - Lock Washer | Add To Cart | |
| 69 | 257040 - Washer | Add To Cart | |
| 70 | 257038 - Step Bushing | Add To Cart | |
| 71 | 606360 - Sealed Tether Fuel Cap Kit | Add To Cart | |
| 72 | 645005 - M1 Deck Belt Guide | Add To Cart | |
| 73 | 422027 - Fuel Tank Filler Hose | Add To Cart | |
| 74 | 280305 - Hose Clamp - Screw Type | Add To Cart | |
| 75 | 424015 - Rubber Bumper | Add To Cart | |
| 76 | 270821 - Hex Bolt | Add To Cart | |
| 77 | 271021 - Flanged Hex Bolt W/ Ser | Add To Cart | |
| 78 | 253179 - Phillips Head Truss Whiz Bolt | Add To Cart | |
| 79 | 246975 - Plastic Push Stud .250 | Add To Cart | |
| 80 | 605535 - 327 EFI Decal Set | Call For Details |
