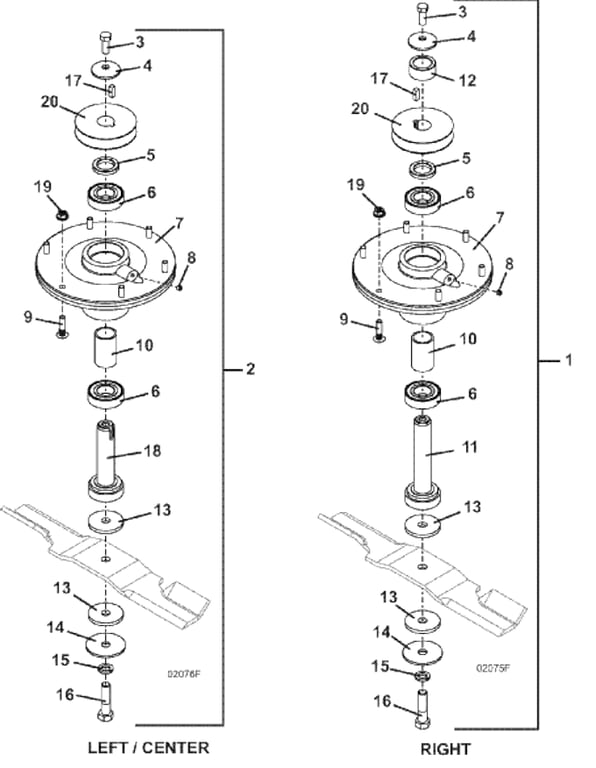

3344 Deck Blade Spindle Assembly - 2020
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623773 - Right Blade Spindle Assembly(Does Not Include 19) | Add To Cart | |
| 2 | 623774 - Left/Center Blade Spindle Assembly (Does Not Include 19) | Add To Cart | |
| 3 | 243331 - Hex Bolt | Add To Cart | |
| 4 | 257041 - Cupped Washer | Add To Cart | |
| 5 | 282607 - Spacer | Add To Cart | |
| 6 | 110081 - Ball Bearing | Add To Cart | |
| 7 | 604412 - Aluminum Spindle Housing | Add To Cart | |
| 8 | 259305 - Set Screw | Add To Cart | |
| 8 - Alternate | 280745 - Zerk Grease Fitting (can go here instead) | Add To Cart | |
| 9 | 247141 - Ribbed Neck Round Head Bolt | Add To Cart | |
| 10 | 903645 - Shallow Bearing Spacer | Add To Cart | |
| 11 | 604768 - Spindle Shaft Assembly | Add To Cart | |
| 12 | 282630 - Spacer | Add To Cart | |
| 13 | 421200 - Fiber Washer | Add To Cart | |
| 14 | 257061 - Washer | Add To Cart | |
| 15 | 257057 - Hardened Washer | Add To Cart | |
| 16 | 243581 - Grade 5 Hex Bolt | Add To Cart | |
| 17 | 281580 - Square Key | Add To Cart | |
| 18 | 604764 - 25 MM Spindle Shaft Assembly | Add To Cart | |
| 19 | 253035 - Whiz Nut | Add To Cart | |
| 20 | 414675 - Sheave | Add To Cart |
