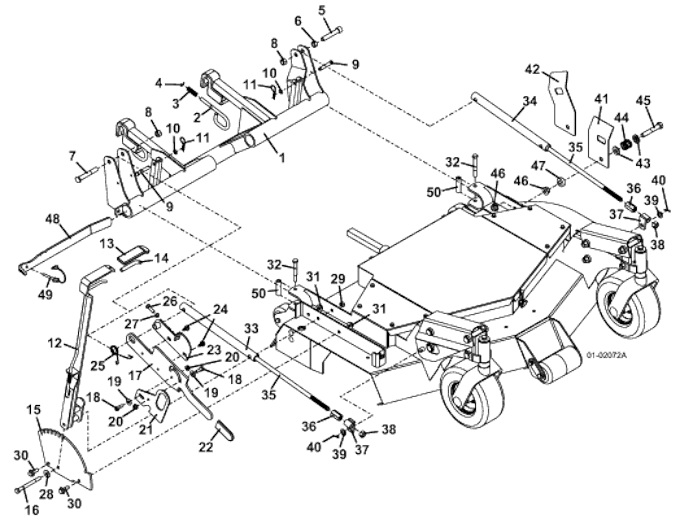

3344 Deck Lift Arm & Linkage Assembly - 2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 604543 - 3344 Lift Arm Assembly | Add To Cart | |
| 604546 - 3348 Lift Arm Assembly | Call For Details | ||
| 2 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 3 | 283285 - Compression Spring | Add To Cart | |
| 4 | 263490 - External Retainer | Add To Cart | |
| 5 | 259640 - Socket Head Screw | Add To Cart | |
| 6 | 902282 - Actuator Stop Spacer | Add To Cart | |
| 7 | 243609 - Hex Bolt | Add To Cart | |
| 8 | 253930 - Lock Nut | Add To Cart | |
| 9 | 261362 - Clevis Pin | Add To Cart | |
| 10 | 262950 - Push-On Retainer | Add To Cart | |
| 11 | 260523 - Hair Pin | Add To Cart | |
| 12 | 644475 - 33 Series Deck Lift Lever | Call For Details | |
| 13 | 422155 - Handle Grip | Add To Cart | |
| 14 | 422158 - Handle Grip | Add To Cart | |
| 15 | 726037 - Lever Mount L48 | Call For Details | |
| - | 162188 - Cutting Height Decal 33/34 Series | Add To Cart | |
| 16 | 243385 - Hex Bolt | Add To Cart | |
| 17 | 824174 - 33 Series Lift Connecting Arm | Add To Cart | |
| 18 | 259722 - Shoulder Bolt | Add To Cart | |
| 19 | 257030 - Washer | Add To Cart | |
| 20 | 253035 - Whiz Nut | Add To Cart | |
| 21 | 783063 - Latch Connecting Arm L48 | Add To Cart | |
| 22 | 422153 - Black Handle Grip | Add To Cart | |
| 23 | 824566 - Lift Linkage Adjustment Bracket | Add To Cart | |
| 24 | 253189 - Whiz Bolt | Add To Cart | |
| 25 | 284423 - Torsion Spring | Add To Cart | |
| 26 | 243205 - Hex Bolt | Add To Cart | |
| 27 | 254440 - Nut | Add To Cart | |
| 28 | 257040 - Washer | Add To Cart | |
| 29 | 253890 - Lock Nut | Add To Cart | |
| 30 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 31 | 253043 - Whiz Nut | Add To Cart | |
| 32 | 243365 - Hex Bolt | Add To Cart | |
| 253890 - Lock Nut | Add To Cart | ||
| 33 | 644448 - 3344 Right Lift Tube | Add To Cart | |
| 644455 - 3348 Right Lift Tube | Add To Cart | ||
| 34 | 644449 - 3344 Left Lift Tube | Call For Details | |
| 644456 - 3348 Left Lift Tube | Add To Cart | ||
| 35 | 243670 - Round Head Bolt | Add To Cart | |
| 36 | 321185 - Height Adjustment Sleeve Nut | Add To Cart | |
| 37 | 644072 - 33 Series Liftrod Bracket | Add To Cart | |
| 38 | 254470 - Nut | Add To Cart | |
| 39 | 257063 - Washer | Add To Cart | |
| 40 | 260650 - Cotter Pin | Add To Cart | |
| 41 | 729169 - L48 Deck Latch | Call For Details | |
| 42 | 729231 - Deck Latch 33 Series with Blower | Call For Details | |
| 43 | 257067 - Washer | Add To Cart | |
| 44 | 283332 - Compression Spring | Add To Cart | |
| 45 | 243600 - Hex Bolt | Add To Cart | |
| 46 | 253067 - Spiral Loc Flange Nut | Add To Cart | |
| 47 | 902292 - Tilt Latch Spacer | Add To Cart | |
| 48 | 783068 - Standard Traction Took Kit | Add To Cart | |
| 49 | 261624 - Linch Pin | Add To Cart | |
| 50 | 902284 - Roller Mount Spacer | Add To Cart |
