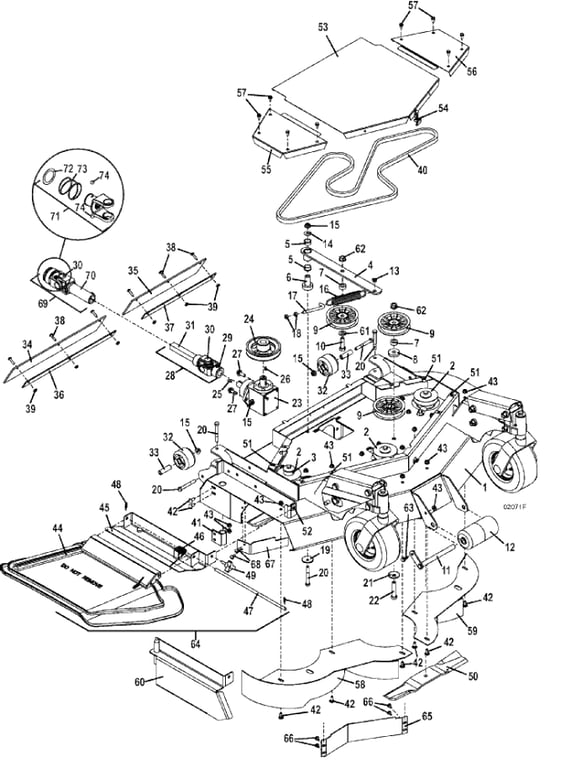

3344 Deck Mower Assembly - 2021
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644166 - 3344 Deck Weldment | Call For Details | |
| 2 | 414675 - Sheave | Add To Cart | |
| 3 | 282630 - Spacer | Add To Cart | |
| 4 | 824480 - Idler Arm -3344 F/A | Call For Details | |
| 5 | 121756 - Oilite Bearing | Add To Cart | |
| 6 | 121650 - Pedestal Bearing | Add To Cart | |
| 7 | 902313 - Spacer | Add To Cart | |
| 8 | 257160 - Washer | Add To Cart | |
| 9 | 393225 - Idler | Add To Cart | |
| 10 | 243575 - Hex Bolt | Add To Cart | |
| 11 | 644512 - Roller Lock Pin | Add To Cart | |
| 12 | 603725 - 2 Piece Center Roller Assembly | Add To Cart | |
| 13 | 422520 - Nylon Bearing | Add To Cart | |
| 14 | 257040 - Washer | Add To Cart | |
| 15 | 253043 - Whiz Nut | Add To Cart | |
| 16 | 283848 - Extension Spring | Add To Cart | |
| 17 | 730391 - Idler Adjustment 'J' Bolt | Add To Cart | |
| 18 | 254450 - Nut | Add To Cart | |
| 19 | 257041 - Cupped Washer | Add To Cart | |
| 20 | 243365 - Hex Bolt | Add To Cart | |
| 21 | 257059 - Washer | Add To Cart | |
| 22 | 243590 - Hex Bolt | Add To Cart | |
| 23 | 390021 - Right Angle CCW (Counter ClockWise) Gearbox | Add To Cart | |
| 24 | 415874 - Sheave | Add To Cart | |
| 25 | 281828 - Woodruff Key | Add To Cart | |
| 26 | 281833 - Woodruff Key | Add To Cart | |
| 27 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 28 | 398525 - Rectangular UN Half Shaft | Add To Cart | |
| 29 | 401010 - Yoke | Add To Cart | |
| 30 | 121010 - Cross & Bearing | Add To Cart | |
| 31 | 402605 - Rectangular Yoke & Shaft | Add To Cart | |
| 32 | 426122 - Roller | Add To Cart | |
| 33 | 902284 - Roller Mount Spacer | Add To Cart | |
| 34 | 424173 - 3344 Right Deck Flap | Call For Details | |
| 35 | 424174 - 3344 Left Deck Flap | Call For Details | |
| 36 | 774227 - 3344 Right Deflector Strap | Call For Details | |
| 37 | 774228 - 3344 Left Deflector Strap | Call For Details | |
| 38 | 253181 - Bolt | Add To Cart | |
| 39 | 253025 - Whiz Nut | Add To Cart | |
| 40 | 383012 - Deck Belt | Add To Cart | |
| 41 | 643632 - Vacuum Housing Pivot Mount | Add To Cart | |
| 42 | 247130 - Carriage Bolt | Add To Cart | |
| 43 | 253035 - Whiz Nut | Add To Cart | |
| 44 | 422042 - Flex Discharge Shield | Add To Cart | |
| 45 | 644567 - 33 Series Discharge Shield Mount | Add To Cart | |
| 46 | 284406 - Torsion Spring | Add To Cart | |
| 47 | 780650 - Flex Discharge Shield Pin | Add To Cart | |
| 48 | 260608 - Cotter Ring | Add To Cart | |
| 49 | 252821 - 3 Prong HD Deck Stud | Add To Cart | |
| 50 | 320234 - 15' High-Lift Notched Blade | Call For Details | |
| 320231 - 15' Medium Lift Blade | Call For Details | ||
| 320233 - 15' Contour Blade | Call For Details | ||
| 320235 - 15' High-Low Mulching Blade | Call For Details | ||
| 320248 - 15' Extreme High-Lift Blade | Call For Details | ||
| 51 | 254431 - Speed Nut | Add To Cart | |
| 52 | 254448 - Speed Nut | Add To Cart | |
| 53 | 604747 - 3344 Center Shield Assembly | Add To Cart | |
| 54 | 281300 - Rubber Draw Latch | Add To Cart | |
| 55 | 722498 - 3344 Right Belt Shield | Add To Cart | |
| 56 | 722499 - 3344 Left Belt Shield | Call For Details | |
| 57 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 58 | 644605 - 3344 Right Mulch Plate | Call For Details | |
| 59 | 644606 - 3344 Left Mulch Plate | Call For Details | |
| 60 | 644175 - 3344/48 Mulch End Cap | Add To Cart | |
| 61 | 257062 - Washer | Add To Cart | |
| 62 | 253067 - Spiral Loc Flanged Nut | Add To Cart | |
| 63 | 253192 - Flanged Hex Whiz Bolt | Add To Cart | |
| 64 | 604318 - 3344/48 Flex Discharge Shield Assembly | Add To Cart | |
| 65 | 724516 - 3344 Aux Front Shroud | Call For Details | |
| 66 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 67 | 729704 - Discharge Deflector Shroud | Call For Details | |
| 68 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 69 | 398914 - Rectangular UN Half Sleeve | Add To Cart | |
| 70 | 401021 - Yoke with Sleeve | Call For Details | |
| 71 | 401019 - Yoke Splined Quick Disconnect | Add To Cart | |
| 72 | 263660 - External Retainer | Add To Cart | |
| 73 | 283525 - Compression Spring | Add To Cart | |
| 74 | 300014 - Steel Ball | Add To Cart | |
| 75 | 603279 - 33 Series Deck Decal Set | Call For Details |
