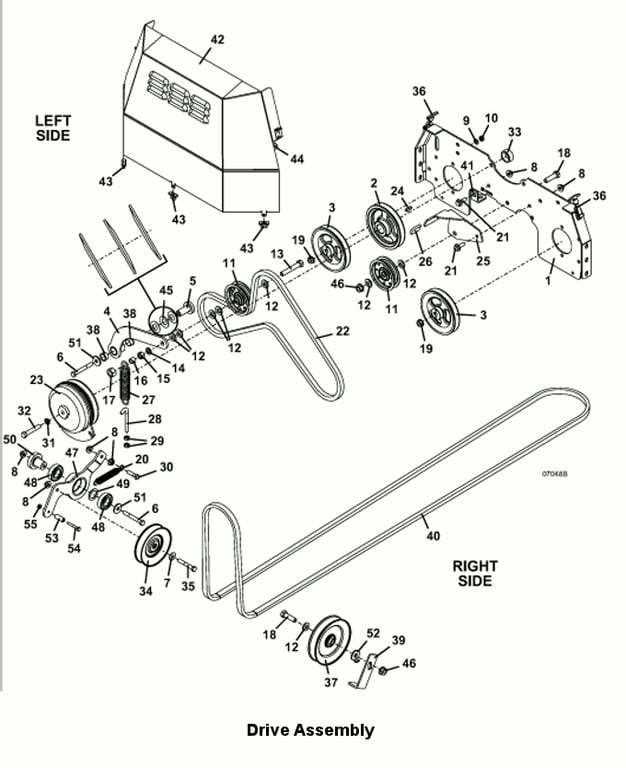

335B Drive Assembly - 2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644619 - Pump Plate | Call For Details | |
| 2 | 415884 - Sheave | Add To Cart | |
| 3 | 415898 - Sheave | Add To Cart | |
| 4 | 824572 - Idler Arm - 300/400 Pumps | Add To Cart | |
| 5 | 121651 - Pedestal Bearing | Add To Cart | |
| 6 | 243365 - Hex Bolt | Add To Cart | |
| 7 | 257040 - Washer | Add To Cart | |
| 8 | 253043 - Whiz Nut | Add To Cart | |
| 9 | 257412 - Lock Washer | Add To Cart | |
| 10 | 253890 - Lock Nut | Add To Cart | |
| 11 | 393195 - Idler Pulley | Add To Cart | |
| 12 | 257062 - Washer | Add To Cart | |
| 13 | 243601 - Hex Bolt | Add To Cart | |
| 14 | 257432 - Lock Washer | Add To Cart | |
| 15 | 254470 - Nut | Add To Cart | |
| 16 | 422558 - Nylon Bearing | Add To Cart | |
| 17 | 253930 - Lock Nut | Add To Cart | |
| 18 | 243575 - Hex Bolt | Add To Cart | |
| 19 | 253061 - Whiz Nut | Add To Cart | |
| 20 | 283820 - Extension Spring with Swivel | Add To Cart | |
| 21 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 22 | 382035 - Belt | Add To Cart | |
| 23 | 606243 - Clutch Assembly - 335B/335B/335 | Add To Cart | |
| - | 884313 - Step Bushing | Add To Cart | |
| 24 | 281582 - Square Key | Add To Cart | |
| 25 | 755046 - Anti Rotation Bracket | Add To Cart | |
| 26 | 422088 - Clutch Bracket Cover | Add To Cart | |
| 27 | 283848 - Extension Spring | Add To Cart | |
| 28 | 730391 - Idler Adjustment J Bolt | Add To Cart | |
| 29 | 254450 - Nut | Add To Cart | |
| 30 | 243340 - Hex Bolt | Add To Cart | |
| 31 | 257422 - Lock Washer | Add To Cart | |
| 32 | 243470 - Hex Bolt | Add To Cart | |
| 33 | 902588 - Spacer | Add To Cart | |
| 34 | 393376 - Idler | Add To Cart | |
| 35 | 243355 - Hex Bolt | Add To Cart | |
| 36 | 281301 - Rubber Draw Latch | Add To Cart | |
| 37 | 393390 - Idler | Add To Cart | |
| 38 | 121756 - Oilite Bearing | Add To Cart | |
| 39 | 755155 - M1 Fixed Idler Guide Belt | Add To Cart | |
| 40 | 382093 - Belt | Add To Cart | |
| - | 382113 - Belt | Add To Cart | |
| 41 | 732520 - M1 Idler Spring Bracket | Add To Cart | |
| 42 | 604754 - Rear Shield Assembly | Add To Cart | |
| 43 | 422090 - Rear Belt Shield Isolator | Add To Cart | |
| 44 | 424015 - Rubber Bumper | Add To Cart | |
| 45 | 257319 - Spring Washer | Add To Cart | |
| 46 | 253066 - Nut - Whiz | Add To Cart | |
| 47 | 824476 - Idler Arm Assembly - HD Mule Drive | Add To Cart | |
| 48 | 110080 - Ball Bearing 2 Metal Seal 25MM | Add To Cart | |
| 49 | 257104 - Washer | Add To Cart | |
| 50 | 885015 - Pedestal Bearing - Heavy Duty | Add To Cart | |
| 51 | 774020 - Washer | Add To Cart | |
| 52 | 754003 - Tabbed Spacer - Fixed Idler | Add To Cart | |
| 53 | 784057 - Guide Tube | Add To Cart | |
| 54 | 243038 - Hex Bolt | Add To Cart | |
| 55 | 253025 - Whiz Nut | Add To Cart |
