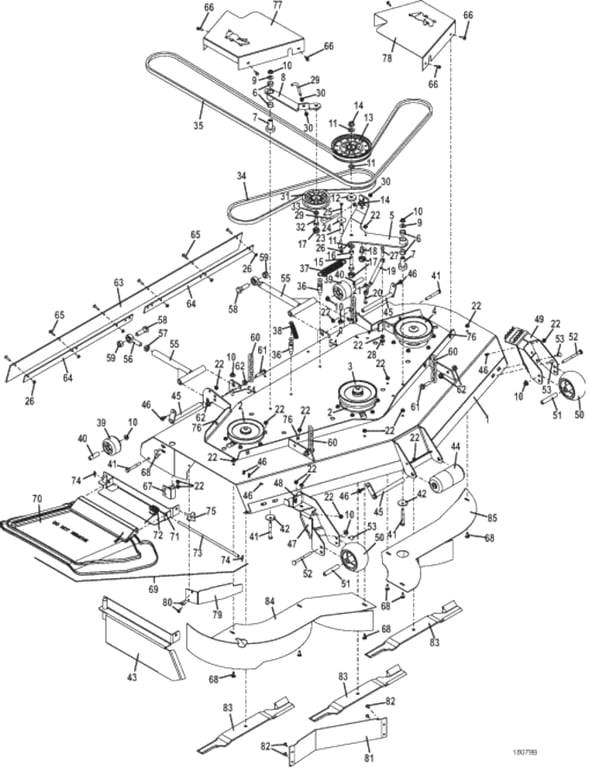

337G5 61 Inch Deck Assembly - 2021
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644160 - Deck Weldment | Add To Cart | |
| 2 | 415892 - Sheave | Add To Cart | |
| 3 | 415906 - Sheave | Add To Cart | |
| 4 | 415896 - Sheave | Add To Cart | |
| 5 | 824424 - Idler Arm Assembly - 61/72' Deck | Call For Details | |
| 6 | 121756 - Oilite Bearing | Add To Cart | |
| 7 | 121650 - Pedestal Bearing | Add To Cart | |
| 8 | 824422 - Right Idler Arm Assembly | Call For Details | |
| 9 | 257040 - Washer | Add To Cart | |
| 10 | 253043 - Whiz Nut | Add To Cart | |
| 11 | 257062 - Washer | Add To Cart | |
| 12 | 257160 - Washer | Add To Cart | |
| 13 | 393250 - Idler | Add To Cart | |
| 14 | 253067 - Flange Spiral Loc Nut | Add To Cart | |
| 15 | 243585 - Hex Bolt | Add To Cart | |
| 16 | 902282 - Actuator Stop Spacer | Add To Cart | |
| 17 | 423670 - Stabilizer Cap - Idler Arm | Add To Cart | |
| 18 | 243551 - Hex Bolt | Add To Cart | |
| 19 | 285040 - Damper | Add To Cart | |
| 20 | 243205 - Hex Bolt | Add To Cart | |
| 21 | 257032 - Washer | Add To Cart | |
| 22 | 253035 - Whiz Nut | Add To Cart | |
| 23 | 784051 - Guide Tube | Add To Cart | |
| 24 | 257024 - Washer | Add To Cart | |
| 25 | 243045 - Hex Bolt | Add To Cart | |
| 26 | 253025 - Whiz Nut | Add To Cart | |
| 27 | 243215 - Hex Bolt | Add To Cart | |
| 28 | 257030 - Washer | Add To Cart | |
| 29 | 730391 - 'J' Bolt - Idler Adjustment | Add To Cart | |
| 30 | 254450 - Nut | Add To Cart | |
| 31 | 393226 - Idler | Add To Cart | |
| 32 | 243565 - Hex Bolt | Add To Cart | |
| 33 | 257432 - Lock Washer | Add To Cart | |
| 34 | 382836 - Belt | Add To Cart | |
| 35 | 382095 - Belt | Add To Cart | |
| 36 | 881926 - Deck Spring Anchor | Call For Details | |
| 37 | 283848 - Extension Spring | Add To Cart | |
| 38 | 283820 - Extension Spring w/Swivel | Add To Cart | |
| 39 | 426122 - Roller | Add To Cart | |
| 40 | 902284 - Roller Mount Spacer | Add To Cart | |
| 41 | 243365 - Hex Bolt | Add To Cart | |
| 42 | 257041 - Cupped Washer | Add To Cart | |
| 43 | 644058 - Mulch End Cap | Add To Cart | |
| 44 | 603725 - Center Roller - 2 Piece Assembly | Add To Cart | |
| 45 | 644512 - Lock Pin - Roller | Add To Cart | |
| 46 | 253192 - Flange Whiz Hex Bolt | Add To Cart | |
| 47 | 645576 - Right Anti-Scalp Roller Mount | Add To Cart | |
| 48 | 254448 - Speed Nut | Add To Cart | |
| 49 | 645589 - Left Anti-Scalp Roller Mount | Add To Cart | |
| 50 | 484230 - Wheel - Anti-Scalp Center Hub | Add To Cart | |
| 51 | 942137 - Bearing Tube | Add To Cart | |
| 52 | 247310 - Carriage Bolt | Add To Cart | |
| 53 | 247135 - Carriage Bolt | Add To Cart | |
| 54 | 243335 - Hex Bolt | Add To Cart | |
| 55 | 604667 - Radius Arm Assembly | Add To Cart | |
| 56 | 265665 - Rod End | Add To Cart | |
| 57 | 254493 - Nut | Add To Cart | |
| 58 | 243810 - Hex Bolt | Add To Cart | |
| 59 | 253970 - Lock Nut | Add To Cart | |
| 60 | 820331 - M1 5 Links Chain | Add To Cart | |
| 61 | 243458 - Grade 8 Hex Bolt | Add To Cart | |
| 62 | 253058 - Whiz Nut | Add To Cart | |
| 63 | 424204 - Deck Flap | Add To Cart | |
| 64 | 774337 - Deflector Strap | Add To Cart | |
| 65 | 253181 - Bolt | Add To Cart | |
| 66 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 67 | 643632 - Pivot Vac Housing Mount | Add To Cart | |
| 68 | 247130 - Carriage Bolt | Add To Cart | |
| 69 | 604317 - Flex Discharge Shield Assembly | Add To Cart | |
| 70 | 422042 - Flex Discharge Shield | Add To Cart | |
| 71 | 644570 - Discharge Shield Mount | Add To Cart | |
| 72 | 284406 - Torsion Spring | Add To Cart | |
| 73 | 780650 - Pin - Flex Discharge Shield | Add To Cart | |
| 74 | 260608 - Cotter Ring | Add To Cart | |
| 75 | 252821 - 3 Prong HD Deck Stud | Add To Cart | |
| 76 | 254431 - Speed Nut | Add To Cart | |
| 77 | 722451 - 61 Right Mid Belt Shield | Add To Cart | |
| - | 163289 - SM Grasshopper Emblem Decal | Add To Cart | |
| 78 | 722452 - 61 Left Mid Belt Shield | Add To Cart | |
| - | 163289 - SM Grasshopper Emblem Decal | Add To Cart | |
| 79 | 729687 - Discharge Deflect Shroud | Add To Cart | |
| 80 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 81 | 724589 - Auxiliary Front Shroud | Add To Cart | |
| 82 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 83 | 320245 - 21' High Lift Notch Blade | Call For Details | |
| - | 320242 - 21' Medium Lift Blade | Call For Details | |
| - | 320244 - 21' Contour Blade | Call For Details | |
| - | 320246 - 21' Extreme Hi-Lift Blade | Call For Details | |
| - | 320247 - 21' Hi-Low Mulching Blade | Call For Details | |
| 84 | 644610 - 61 Inch Left Mulch Plate | Add To Cart | |
| 85 | 644611 - 61 Inch Right Mulch Plate | Add To Cart |
