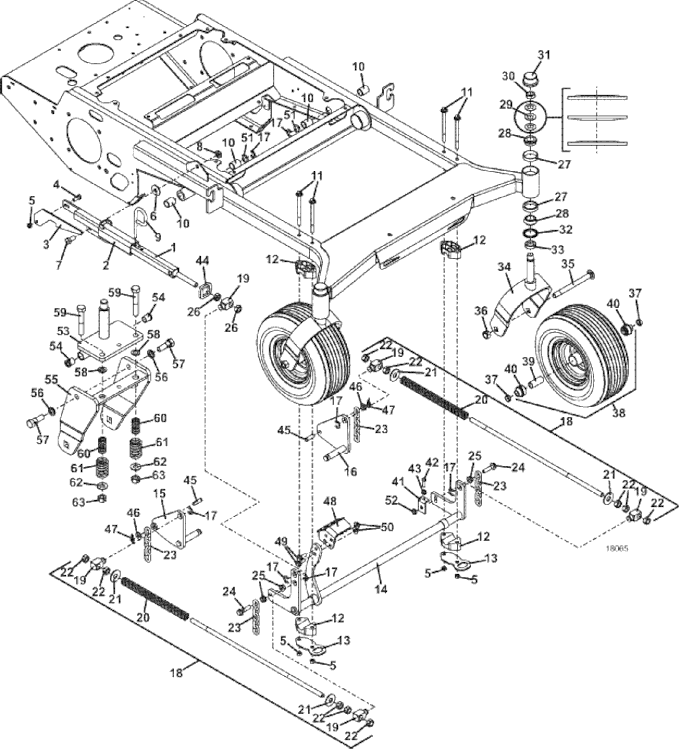

337G5 Deck Carrier Assembly - 2020
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644778 - M1 Height Adjustment Tube | Add To Cart | |
| 2 | 644306 - Latch Tube Guide | Add To Cart | |
| 3 | 775104 - Deck Latch | Add To Cart | |
| 4 | 243320 - Hex Bolt | Add To Cart | |
| 5 | 253890 - Lock Nut | Add To Cart | |
| 6 | 821516 - Nylon Washer | Add To Cart | |
| 7 | 243560 - Hex Bolt | Add To Cart | |
| 8 | 253470 - Nylon Insert Nut | Add To Cart | |
| 9 | 730434 - Height Adjustment Deck Pin | Add To Cart | |
| 10 | 422640 - Poly Bearing | Add To Cart | |
| 11 | 253215 - Flange Bolt | Add To Cart | |
| 12 | 423643 - M1 Bearing Block | Add To Cart | |
| 13 | 774064 - Lift Bearing Plate | Add To Cart | |
| 14 | 644488 - Adjustable Deck Lift Lever | Call For Details | |
| 15 | 644707 - Right Rear Deck Rocker | Add To Cart | |
| 16 | 644708 - Left Rear Deck Rocker | Add To Cart | |
| 17 | 263529 - External Retainer | Add To Cart | |
| 18 | 326108 - Rod & Spring Assembly | Call For Details | |
| 19 | 882035 - Shaft - Spring Rod Mount | Add To Cart | |
| 20 | 283395 - Compression Spring | Add To Cart | |
| 21 | 257080 - Washer | Add To Cart | |
| 22 | 254490 - Nut | Add To Cart | |
| 23 | 820331 - M1 5 Links Chain | Add To Cart | |
| 24 | 243458 - Grade 8 Hex Bolt | Add To Cart | |
| 25 | 253058 - Whiz Nut | Add To Cart | |
| 26 | 254493 - Nut | Add To Cart | |
| 27 | 123522 - Bearing Cup | Add To Cart | |
| 28 | 122522 - Taper Bearing | Add To Cart | |
| 29 | 257320 - Spring Washer | Add To Cart | |
| 30 | 254505 - Nut - Jam Nylon - Toplock | Add To Cart | |
| 31 | 481432 - Dust Cap | Add To Cart | |
| 32 | 125855 - Seal | Add To Cart | |
| 33 | 282615 - Spacer | Add To Cart | |
| 34 | 645221 - Tailwheel Tapered Bearing Fork | Add To Cart | |
| 35 | 247726 - Carriage Bolt | Add To Cart | |
| 36 | 253970 - Lock Nut | Add To Cart | |
| 37 | 902422 - Axle Spacer | Add To Cart | |
| 38 | 603975 - Rear Wheel & Tire Assembly w/DP Bearings | Add To Cart | |
| - | 482355 - Rib Tire | Add To Cart | |
| - | 483306 - Wheel | Add To Cart | |
| 39 | 423750 - Axle Spacer | Add To Cart | |
| 40 | 120048 - Ball DP Wheel Bearing | Add To Cart | |
| 41 | 732586 - Adjusting Deck Strap | Add To Cart | |
| 42 | 243205 - Hex Bolt | Add To Cart | |
| 43 | 253035 - Whiz Nut | Add To Cart | |
| 44 | 423696 - Height Adjustment Spacer | Add To Cart | |
| 45 | 261405 - Clevis Pin | Add To Cart | |
| 46 | 257051 - Washer | Add To Cart | |
| 47 | 260612 - Cotter Ring | Add To Cart | |
| 48 | 644467 - Carrier Adjustment Foot Pedal | Call For Details | |
| 49 | 253203 - Whiz Flange Bolt | Add To Cart | |
| 50 | 253043 - Whiz Nut | Add To Cart | |
| 51 | 257092 - 18 Gauge Bushing Washer | Add To Cart | |
| 52 | 254461 - Nut | Add To Cart | |
| 53 | 643677 - Pivot - Fork Yoke Suspension | Add To Cart | |
| 54 | 121734 - Oilite Bearing | Add To Cart | |
| 55 | 643313 - Fork Yoke - Suspension | Add To Cart | |
| 56 | 257442 - Lock Washer | Add To Cart | |
| 57 | 887114 - Pivot Bolt - Suspension Fork | Add To Cart | |
| 58 | 257063 - Washer | Add To Cart | |
| 59 | 243600 - Hex Bolt | Add To Cart | |
| 60 | 283326 - Compression Spring | Add To Cart | |
| 61 | 283389 - Compression Spring | Add To Cart | |
| 62 | 257062 - Washer | Add To Cart | |
| 63 | 253930 - Lock Nut | Add To Cart |
