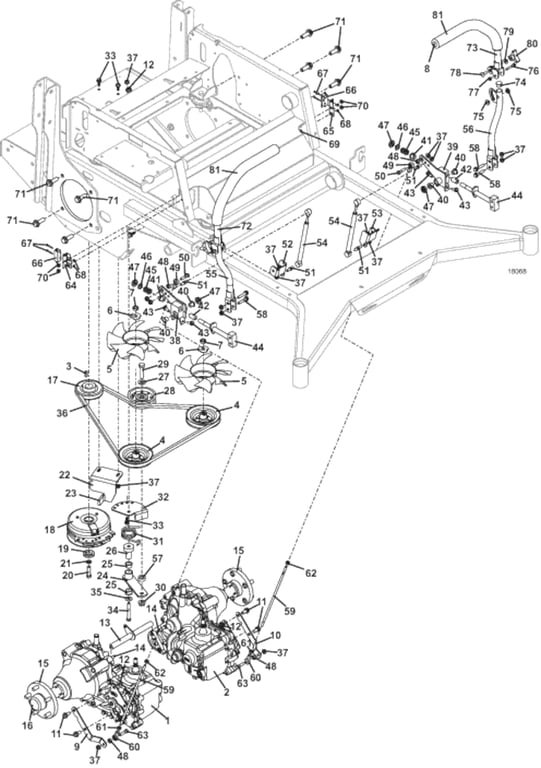

337G5 Drive & Steering Assembly - 2021
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 391507 - Rt Integrated Transmission | Add To Cart | |
| - | 130206 - Filter Kit | Add To Cart | |
| 2 | 391506 - Lt Integrated Transmission | Call For Details | |
| - | 130206 - Filter Kit | Add To Cart | |
| 3 | 281582 - Square Key | Add To Cart | |
| 4 | 130231 - Pulley/Fan Kit | Add To Cart | |
| 5 | 130238 - Fan | Add To Cart | |
| 6 | 130239 - Slotted Washer | Call For Details | |
| 7 | 130235 - Jam Nut | Add To Cart | |
| 8 | 422095 - Cap - Vinyl .75 ID | Call For Details | |
| 9 | 724268 - Right Control Arm | Call For Details | |
| 10 | 724269 - Left Control Arm | Call For Details | |
| 11 | 253200 - Whiz Bolt | Add To Cart | |
| 12 | 253043 - Whiz Nut | Add To Cart | |
| 13 | 645118 - Brake Rod | Call For Details | |
| 14 | 243215 - Hex Bolt | Add To Cart | |
| 15 | 130290 - Hub Kit | Call For Details | |
| - | 130288 - Axle Washer | Call For Details | |
| - | 254523 - Castle Nut | Call For Details | |
| - | 281860 - Woodruff Key | Add To Cart | |
| 16 | 130292 - Axle Cap | Call For Details | |
| 17 | 415537 - Sheave | Add To Cart | |
| 18 | 388752 - 1.125' Electric Clutch | Add To Cart | |
| 19 | 884314 - Step Bushing - Clutch | Add To Cart | |
| 20 | 243456 - Hex Bolt | Add To Cart | |
| 21 | 257422 - Lock Washer | Add To Cart | |
| 22 | 725123 - Anti-Rotation Bracket | Add To Cart | |
| 23 | 422088 - Clutch Bracket Cover | Add To Cart | |
| 24 | 824478 - Idler Arm Assembly | Add To Cart | |
| 25 | 121756 - Oilite Bearing | Add To Cart | |
| 26 | 121650 - Pedestal Bearing | Add To Cart | |
| 27 | 257062 - Washer | Add To Cart | |
| 28 | 393195 - Idler | Add To Cart | |
| 29 | 243580 - Hex Bolt | Add To Cart | |
| 30 | 253066 - Whiz Nut | Add To Cart | |
| 31 | 284428 - Torsion Spring | Add To Cart | |
| 32 | 729733 - Belt Tensioner Bracket | Add To Cart | |
| 33 | 253192 - Flange Whiz Hex Bolt | Add To Cart | |
| 34 | 243360 - Hex Bolt | Add To Cart | |
| 35 | 257040 - Washer | Add To Cart | |
| 36 | 381960 - Belt | Add To Cart | |
| 37 | 253035 - Whiz Nut | Add To Cart | |
| 38 | 604610 - Right Steering Pivot w/Stop & Bearings | Call For Details | |
| 39 | 604611 - Left Steering Pivot w/Stop & Bearings | Call For Details | |
| 40 | 422559 - Sleeve Bearing w/Flange | Add To Cart | |
| 41 | 422556 - Sleeve Bearing w/Flange | Add To Cart | |
| 42 | 422557 - Sleeve Bearing | Add To Cart | |
| 43 | 243197 - Hex Bolt | Add To Cart | |
| 44 | 643926 - Steering Lever Adjustment Mount | Add To Cart | |
| 45 | 283324 - Compression Spring | Add To Cart | |
| 46 | 257063 - Washer | Add To Cart | |
| 47 | 253470 - Nylon Insert Nut | Add To Cart | |
| 48 | 902297 - .25 THK Spacer | Add To Cart | |
| 49 | 265651 - Left Female Rod End | Add To Cart | |
| 50 | 243210 - Hex Bolt | Add To Cart | |
| 51 | 265680 - Ball Stud | Add To Cart | |
| 52 | 729798 - Right Damper Mount Bracket | Call For Details | |
| 53 | 729799 - Left Damper Mount Bracket | Call For Details | |
| 54 | 285033 - Damper Ball Socket Retain HD | Add To Cart | |
| 55 | 645748 - Lower Right Adj Steering Lever W/A | Add To Cart | |
| 56 | 645749 - Lower Left Folding Steering Lever W/A | Add To Cart | |
| 57 | 902313 - Spacer | Add To Cart | |
| 58 | 253195 - Flange Whiz Hex Bolt | Add To Cart | |
| 59 | 780175 - Steering Link Rod | Add To Cart | |
| 60 | 265650 - Right Female Rod End | Add To Cart | |
| 61 | 254441 - Nut | Add To Cart | |
| 62 | 254444 - Nut | Add To Cart | |
| 63 | 243210 - Hex Bolt | Add To Cart | |
| 64 | 720160 - Right Steering Switch Mount | Add To Cart | |
| 65 | 720161 - Left Steering Switch Mount | Add To Cart | |
| 66 | 183860 - Lever Switch | Add To Cart | |
| 67 | 250318 - Machine Screw | Call For Details | |
| 68 | 254400 - Nut | Call For Details | |
| 69 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 70 | 253025 - Whiz Nut | Add To Cart | |
| 71 | 253244 - Whiz Bolt | Call For Details | |
| 72 | 645744 - Adjustable Upper Right Steering Lever | Add To Cart | |
| 73 | 645745 - Adjustable Upper Left Steering Lever | Add To Cart | |
| 74 | 422063 - Nylon Plug | Add To Cart | |
| 75 | 422508 - Step Bushing | Add To Cart | |
| 76 | 243035 - Hex Bolt | Add To Cart | |
| 77 | 253850 - Lock Nut | Add To Cart | |
| 78 | 247130 - Carriage Bolt | Add To Cart | |
| 79 | 257019 - Flat Washer | Add To Cart | |
| 80 | 252858 - Thumb Screw | Call For Details | |
| 81 | 422179 - Handle Grip | Call For Details |
