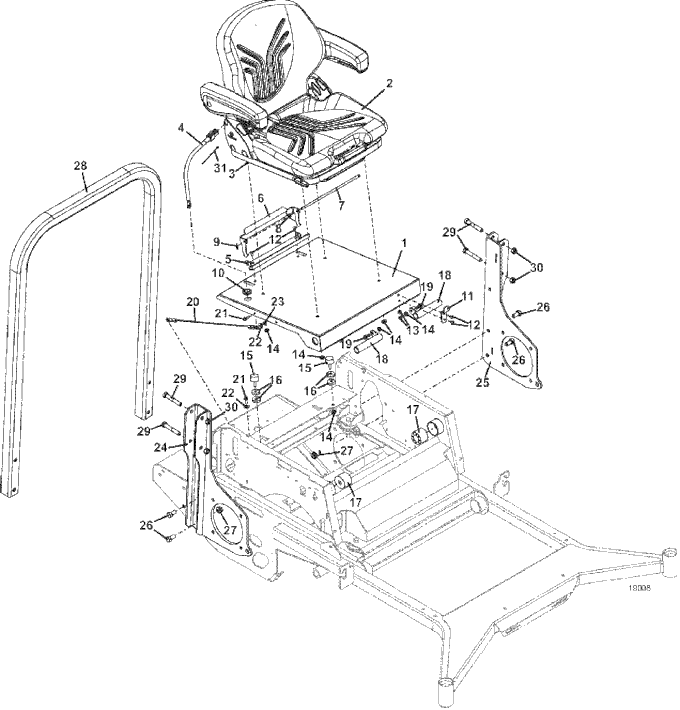

337G5 Grammer Seat & ROPS Assembly - 2020
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644444 - 300V Seat Mount | Call For Details | |
| 2 | 321572 - Grammer Seat Assembly | Call For Details | |
| 3 | 243185 - Hex Bolt | Call For Details | |
| 4 | 605970 - Grammer SU Seat Wiring Adapter | Add To Cart | |
| 5 | 754235 - 300/400 Seat Suspension Stop | Call For Details | |
| 6 | 754292 - Seat Suspension Latch | Call For Details | |
| 7 | 730230 - Pivot Pin Seat Latch | Call For Details | |
| 8 | 284408 - Torsion Spring | Add To Cart | |
| 9 | 260606 - Cotter Ring | Add To Cart | |
| 10 | 424235 - Grommet | Call For Details | |
| 11 | 732313 - Seat Suspension Slide Stop | Call For Details | |
| 12 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 13 | 253025 - Whiz Nut | Add To Cart | |
| 14 | 253035 - Whiz Nut | Add To Cart | |
| 15 | 424056 - Bumper w/Stud | Add To Cart | |
| 16 | 902294 - Spacer | Add To Cart | |
| 17 | 424095 - Seat Isolator | Add To Cart | |
| 18 | 644618 - Seat Hinge Pin | Add To Cart | |
| 19 | 253192 - Flange Whiz Hex Bolt | Add To Cart | |
| 20 | 603215 - Cable Assembly | Add To Cart | |
| 21 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 22 | 257020 - Washer | Add To Cart | |
| 23 | 253440 - Nylon Insert Nut | Add To Cart | |
| 24 | 645148 - Right ROPS Mount | Call For Details | |
| 25 | 645149 - Left ROPS Mount | Call For Details | |
| 26 | 243560 - Hex Bolt | Add To Cart | |
| 27 | 253066 - Whiz Nut | Add To Cart | |
| 28 | 324118 - 300V ROPS Tube | Call For Details | |
| 29 | 243600 - Hex Bolt | Add To Cart | |
| 30 | 253930 - Lock Nut | Add To Cart | |
| 31 | 423147 - Tie | Call For Details |
