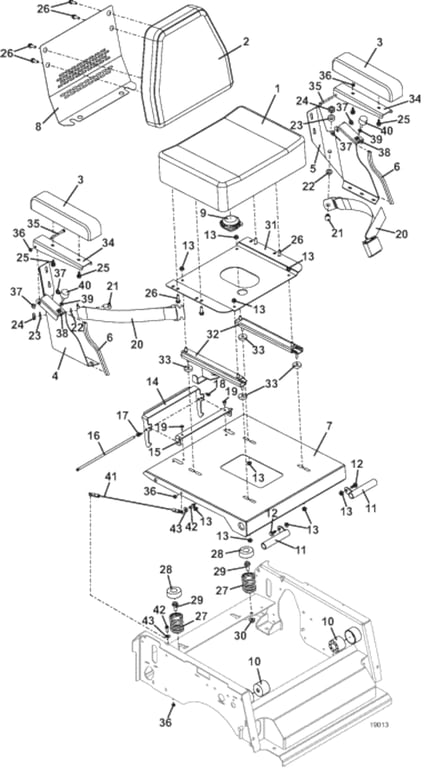

337G5 Lumbar Seat Assembly (Optional) - 2021
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321529 - Seat Cushion - Combo | Add To Cart | |
| 2 | 321530 - Back Cushion - Combo w/Logo | Add To Cart | |
| 3 | 321523 - Cordura Covered Armrest | Add To Cart | |
| 4 | 723435 - Right Folding Armrest - Seat Side | Add To Cart | |
| 5 | 723436 - Left Folding Armrest - Seat Side | Add To Cart | |
| 6 | 822630 - Seat Edge Trim | Add To Cart | |
| 7 | 643936 - Dual Latch Seat Mount | Call For Details | |
| 8 | 722884 - Seat Reinforcement - Raised Backrest | Call For Details | |
| - | 163295 - Red/White Medium Grasshopper Emblem Decal | Add To Cart | |
| 9 | 183871 - Twist-In Seat Switch | Add To Cart | |
| 10 | 424095 - Seat Isolator | Add To Cart | |
| 11 | 644618 - Seat Hinge Pin | Add To Cart | |
| 12 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 13 | 253035 - Whiz Nut | Add To Cart | |
| 14 | 754240 - Seat Dual Latch | Add To Cart | |
| 15 | 754226 - Dual Latch Mount Bracket | Add To Cart | |
| 16 | 730230 - Seat Latch Pivot Pin | Call For Details | |
| 17 | 284408 - Torsion Spring | Add To Cart | |
| 18 | 260606 - Cotter Ring | Add To Cart | |
| 19 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 20 | 324200 - Non-Retractable Seat Belt | Add To Cart | |
| 21 | 243551 - Hex Bolt | Add To Cart | |
| 22 | 257063 - Washer | Add To Cart | |
| 23 | 257062 - Washer | Add To Cart | |
| 24 | 253470 - Nylon Insert Nut | Add To Cart | |
| 25 | 253191 - Flange Whiz Hex Bolt | Add To Cart | |
| 26 | 253193 - Flange Whiz Hex Bolt | Add To Cart | |
| 27 | 283516 - Compression Spring | Add To Cart | |
| 28 | 422127 - Seat Spring Cap | Add To Cart | |
| 29 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 30 | 253043 - Whiz Nut | Add To Cart | |
| 31 | 754231 - Plate - Suspension Seat | Call For Details | |
| 32 | 303610 - Seat Track Set | Call For Details | |
| 33 | 902294 - Spacer | Add To Cart | |
| 34 | 754288 - Folding Arm Rest | Call For Details | |
| 35 | 243050 - Hex Bolt | Add To Cart | |
| 36 | 253440 - Nylon Insert Nut | Add To Cart | |
| 37 | 422508 - Step Bushing | Add To Cart | |
| 38 | 830325 - Speed Nut | Add To Cart | |
| 39 | 833542 - Bumper Nut Cap | Add To Cart | |
| 40 | 424056 - Bumper w/Stud | Add To Cart | |
| 41 | 603215 - Cable Assembly | Add To Cart | |
| 42 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 43 | 257020 - Washer | Add To Cart |
