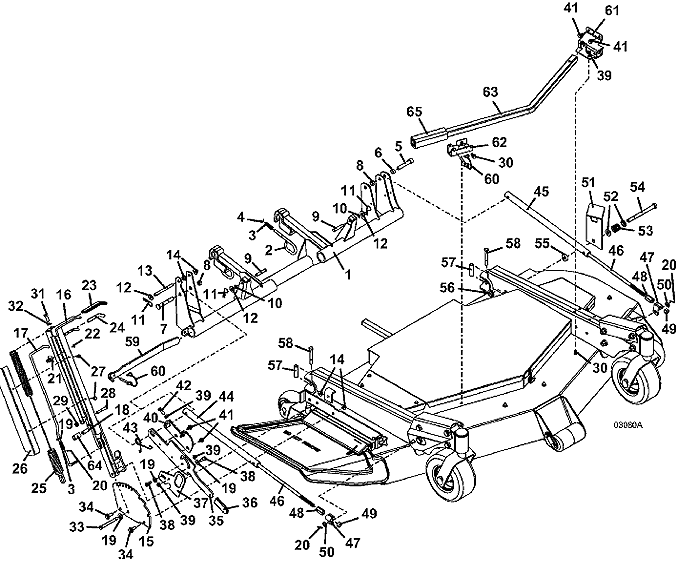

3452 / 3461 Decks Lift Arm Linkage Assembly - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 604547 - 3452 LIFT ARM ASSEMBLY | Add To Cart | |
| - | 604549 - 3461 LIFT ARM ASSEMBLY | Call For Details | |
| 2 | 730433 - DECK MOUNT LATCH PIN | Add To Cart | |
| 3 | 283285 - COMPRESSION SPRING | Add To Cart | |
| 4 | 263490 - EXTERNAL RETAINER | Add To Cart | |
| 5 | 259640 - SOCKET HEAD SCREW | Add To Cart | |
| 6 | 902282 - ACTUATOR STOP SPACER | Add To Cart | |
| 7 | 243609 - GR5 HEX BOLT .500- X 3.312 | Add To Cart | |
| 8 | 253930 - LOCK NUT .500-13 | Add To Cart | |
| 9 | 261362 - CLEVIS PIN .375 X 2GR5 | Add To Cart | |
| 10 | 262950 - PUSH-ON RETAINER | Add To Cart | |
| 11 | 260523 - HAIR PIN | Add To Cart | |
| 12 | 257040 - WASHER | Add To Cart | |
| 13 | 830037 - DRILLED STUD | Add To Cart | |
| 14 | 253043 - WHIZ NUT .375-16 | Add To Cart | |
| 15 | 726036 - 3461 LEVER MOUNT | Add To Cart | |
| - | 162188 - 33 34 series CUTTING HEIGHT DECAL | Add To Cart | |
| 16 | 824578 - 3452 / 3461 LIFT LEVER | Add To Cart | |
| 17 | 730375 - ASSIST LEVER ROD | Add To Cart | |
| 18 | 902273 - LIFT LEVER BOLT SLEEVE | Add To Cart | |
| 19 | 257030 - WASHER | Add To Cart | |
| 20 | 260650 - COTTER PIN | Add To Cart | |
| 21 | 423110 - ROD RETAINER | Add To Cart | |
| 22 | 252041 - #8 SCREW | Add To Cart | |
| 23 | 422155 - HANDLE GRIP | Add To Cart | |
| 24 | 422158 - HANDLE GRIP | Add To Cart | |
| 25 | 604518 - LIFT ASSIST SPRING ASSEMBLY | Add To Cart | |
| 26 | 722716 - SPRING ASSIST LEVER SHIELD | Add To Cart | |
| 27 | 253173 - HEX WHIZ BOLT .250-20 X .500 | Add To Cart | |
| 28 | 243225 - HEX BOLT .312-18 X 2 | Add To Cart | |
| 29 | 253450 - NYLON INSERT NUT .312-18 | Add To Cart | |
| 34 | 253203 - FLANGE WHIZ BOLT .375-16 X 1 | Add To Cart | |
| 35 | 824174 - CONNECTING ARM | Add To Cart | |
| 36 | 422153 - HANDLE GRIP | Add To Cart | |
| 37 | 783063 - LATCH CONNECTING ARM | Add To Cart | |
| 38 | 259722 - SHOULDER BOLT | Add To Cart | |
| 39 | 253035 - WHIZ NUT | Add To Cart | |
| 40 | 824566 - LIFT LINKAGE ADJUSTMENT BRACKET | Add To Cart | |
| 41 | 253189 - WHIZ BOLT .312-18 X .500 | Add To Cart | |
| 42 | 243205 - HEX BOLT .312-18 X 1 | Add To Cart | |
| 43 | 284423 - TORSION SPRING | Add To Cart | |
| 44 | 644472 - LIFT LINKAGE TUBE (model 3452: right side) | Add To Cart | |
| - | 644547 - LIFT LINKAGE TUBE (model 3452: left side / model 3461: right side) | Add To Cart | |
| 45 | 644547 - LIFT LINKAGE TUBE (model 3452: left side / model 3461: right side) | Add To Cart | |
| - | 644548 - LIFT LINKAGE TUBE (model 3461: left side) | Add To Cart | |
| 46 | 243670 - BOLT | Add To Cart | |
| 47 | 644072 - LIFT ROD BRACKET | Add To Cart | |
| 48 | 321185 - NUT SLEEVE | Add To Cart | |
| 49 | 254470 - NUT .500-13 | Add To Cart | |
| 50 | 257063 - WASHER | Add To Cart | |
| 51 | 729237 - DECK LATCH | Add To Cart | |
| 52 | 257067 - WASHER | Add To Cart | |
| 53 | 283332 - COMPRESSION SPRING | Add To Cart | |
| 54 | 243640 - BOLT | Add To Cart | |
| 55 | 902292 - CLUSTER SPROCKET SPACER | Add To Cart | |
| 56 | 253067 - SPIRAL FLANGE LOCK NUT | Add To Cart | |
| 57 | 902284 - ROLLER MOUNT SPACER | Add To Cart | |
| 58 | 243365 - HEX BOLT .375-16 X 3 | Add To Cart | |
| 59 | 783068 - 3461 TRACTION KIT TOOL | Add To Cart | |
| 60 | 261624 - LINCH PIN 250 X 1.750 | Add To Cart | |
| 61 | 644060 - LIFT ASSIST BAR BRACKET | Call For Details | |
| 62 | 729330 - LIFT BAR MOUNT BRACKET | Add To Cart | |
| 63 | 944050 - 3452 LIFT ASSIST BAR | Add To Cart | |
| - | 944055 - 3461 LIFT ASSIST BAR | Add To Cart | |
| 64 | 942158 - LIFT LEVER BOLT OUTER SLEEVE | Add To Cart | |
| 65 | 422177 - FOAM GRIP | Add To Cart |
