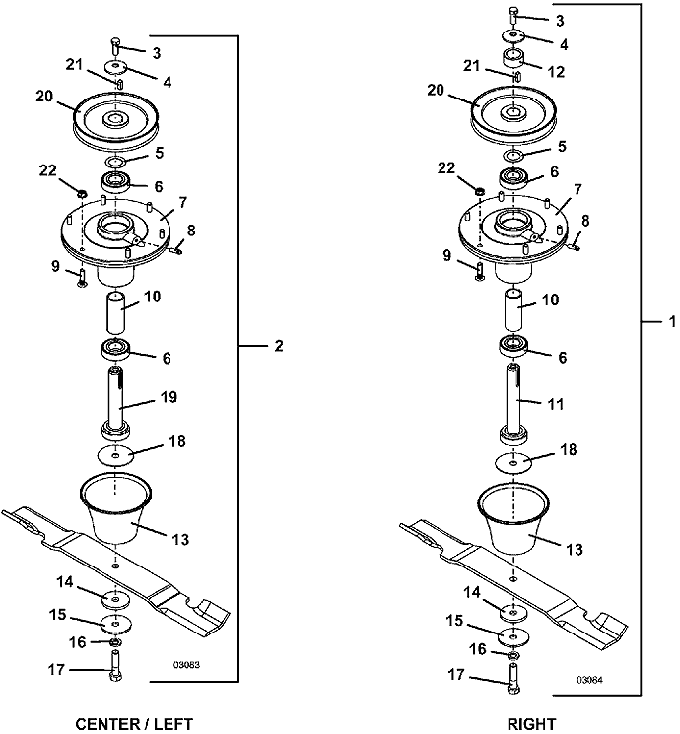

3452 / 3461 Front Mount DecksBlade Spindle Assembly - 2004
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623762 - right Spindle Assembly (includes items 3-19) | $182.10 | Add To Cart |
| 2 | 623763 - left center Spindle Assembly (includes items 3-10 13-19) | $181.41 | Add To Cart |
| 3 | 243331 - Hex Bolt | $1.10 | Add To Cart |
| 4 | 257041 - Cupped Washer | $2.54 | Add To Cart |
| 5 | 257106 - Washer | $5.15 | Add To Cart |
| 6 | 110082 - Single Seal Ball Bearing | $13.15 | Add To Cart |
| 7 | 604421 - 5.0 Spindle Housing Assembly | $89.85 | Add To Cart |
| 8 | 280745 - Zerk Grease Fitting | $1.98 | Add To Cart |
| 9 | 247141 - Ribbed Neck Round Head Bolt | $14.75 | Add To Cart |
| 10 | 903643 - Deep Spindle Bearing Spacer | $14.11 | Add To Cart |
| 11 | 604774 - 98 Series Spindle Shaft Assembly | $43.49 | Add To Cart |
| 12 | 282630 - Spacer | $3.22 | Add To Cart |
| 13 | 423680 - Deflector Cone | $7.83 | Add To Cart |
| 14 | 421200 - Fiber Washer | $1.89 | Add To Cart |
| 15 | 257061 - Washer | $3.73 | Add To Cart |
| 16 | 257432 - Lock Washer | $0.38 | Add To Cart |
| 17 | 243581 - Grade 5 Hex Bolt | $4.82 | Add To Cart |
| 18 | 772061 - Washer | $4.46 | Add To Cart |
| 19 | 604775 - 5.75 Spindle Shaft Assembly | $42.64 | Add To Cart |
| 20 | 415892 - Sheave | $38.41 | Add To Cart |
| 21 | 281580 - Square Key | $1.47 | Add To Cart |
| 22 | 253035 - Whiz Nut | $0.34 | Add To Cart |
