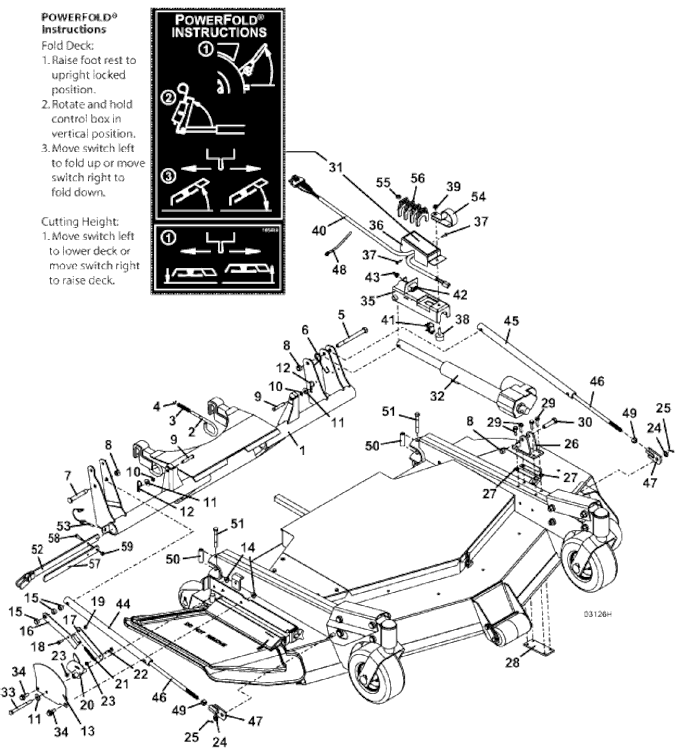

3452R Rear Discharge Front Mount DeckLift Arm with Optional Electric Powerfold Actuator - 2017
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 604547 - 3452 Lift Arm Assembly | Add To Cart | |
| - | 604549 - 3461 Lift Arm Assembly | Call For Details | |
| 2 | 730433 - Deck Mount Latch Pin | Add To Cart | |
| 3 | 283285 - Compression Spring | Add To Cart | |
| 4 | 263490 - External Retainer | Add To Cart | |
| 5 | 243635 - Hex Bolt | Add To Cart | |
| 6 | 284423 - Torsion Spring | Add To Cart | |
| 7 | 243609 - Hex Bolt | Add To Cart | |
| 8 | 253930 - Lock Nut | Add To Cart | |
| 9 | 261362 - Clevis Pin | Add To Cart | |
| 10 | 262950 - Push-On Retainer | Add To Cart | |
| 11 | 257040 - Washer | Add To Cart | |
| 12 | 260523 - Hair Pin | Add To Cart | |
| 13 | 773141 - Cutting Height Decal Plate | Add To Cart | |
| - | 162188 - 33/34 Series Cutting Height Decal | Add To Cart | |
| 14 | 253043 - Whiz Nut | Add To Cart | |
| 15 | 902282 - Actuator Stop Spacer | Add To Cart | |
| 16 | 729332 - Electric Lift Indicator Linkage | Add To Cart | |
| 17 | 729331 - Electric Lift Indicator Strap | Add To Cart | |
| 18 | 243018 - Hex Bolt | Add To Cart | |
| 19 | 253440 - Nylon Insert Nut | Add To Cart | |
| 20 | 644319 - Electric Lift Height Indicator | Add To Cart | |
| 21 | 283762 - Extension Spring | Add To Cart | |
| 22 | 243030 - Hex Bolt | Add To Cart | |
| 23 | 253025 - Whiz Nut | Add To Cart | |
| 24 | 257063 - Washer | Add To Cart | |
| 25 | 260650 - Cotter Pin | Add To Cart | |
| 26 | 644056 - 34 Electric Lift Actuator Mount | Add To Cart | |
| 27 | 900142 - Electric Lift Actuator Mount Spacer | Add To Cart | |
| 28 | 776089 - 34 Actuator Threaded Plate | Add To Cart | |
| 29 | 253193 - Hex Flange Whiz Bolt | Add To Cart | |
| 30 | 243580 - Hex Bolt | Add To Cart | |
| 31 | 165430 - Powerfold Pictorial Decal | Add To Cart | |
| 32 | 180035 - 12 volt Actuator | Add To Cart | |
| - | 182540 - Electric Motor | Add To Cart | |
| 33 | 243380 - Hex Bolt with Shank | Add To Cart | |
| 34 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 35 | 644805 - Electric Lift Switch Mount | Add To Cart | |
| 36 | 722005 - Electric Lift Switch Shield | Add To Cart | |
| 37 | 250169 - Hex Machine Screw | Add To Cart | |
| 38 | 424056 - Bumper with Stud | Add To Cart | |
| 39 | 253035 - Whiz Nut | Add To Cart | |
| 40 | 605965 - Deck Tilt/Height Adjustment Wiring Assembly | Add To Cart | |
| 41 | 183867 - Snap Mount Plunger SPST NC Switch | Add To Cart | |
| 42 | 184084 - Toggle | Add To Cart | |
| 43 | 425200 - Toggle Switch Boot | Add To Cart | |
| 44 | 644472 - 3452 right Linkage | Add To Cart | |
| - | 644547 - Lift Linkage Tube - 3452 left / 3462 right | Add To Cart | |
| 45 | 644547 - Lift Linkage Tube - 3452 left / 3462 right | Add To Cart | |
| - | 644548 - left Lift Linkage Tube - 3461 | Add To Cart | |
| 46 | 243667 - 3452 / 3461 Round Head Bolt | Add To Cart | |
| 47 | 644068 - Lift Rod Bracket | Add To Cart | |
| 48 | 423149 - Releasable Wire Tie | Add To Cart | |
| 49 | 254470 - Nut | Add To Cart | |
| 50 | 902284 - Roller Mount Spacer | Add To Cart | |
| 51 | 243365 - Hex Bolt | Add To Cart | |
| - | 253890 - Lock Nut | Add To Cart | |
| 52 | 604843 - Traction Kit Lever Assembly | Add To Cart | |
| - | 643944 - Offset Tool Traction Kit | Add To Cart | |
| 53 | 261624 - Linch Pin | Add To Cart | |
| 54 | 732315 - Power Fold Height Adjustment Spacer Mount | Add To Cart | |
| 55 | 902297 - .25 THK Spacer | Add To Cart | |
| 56 | 423697 - Power Fold Height Adjustment Spacer | Add To Cart | |
| 57 | 782979 - Traction Kit External Lever | Add To Cart | |
| 58 | 243205 - Hex Bolt | Add To Cart | |
| 59 | 253450 - Nylon Insert Nut | Add To Cart |
